WHA T IS WHA T?
1155548-32 Re v .1 2013-06-28

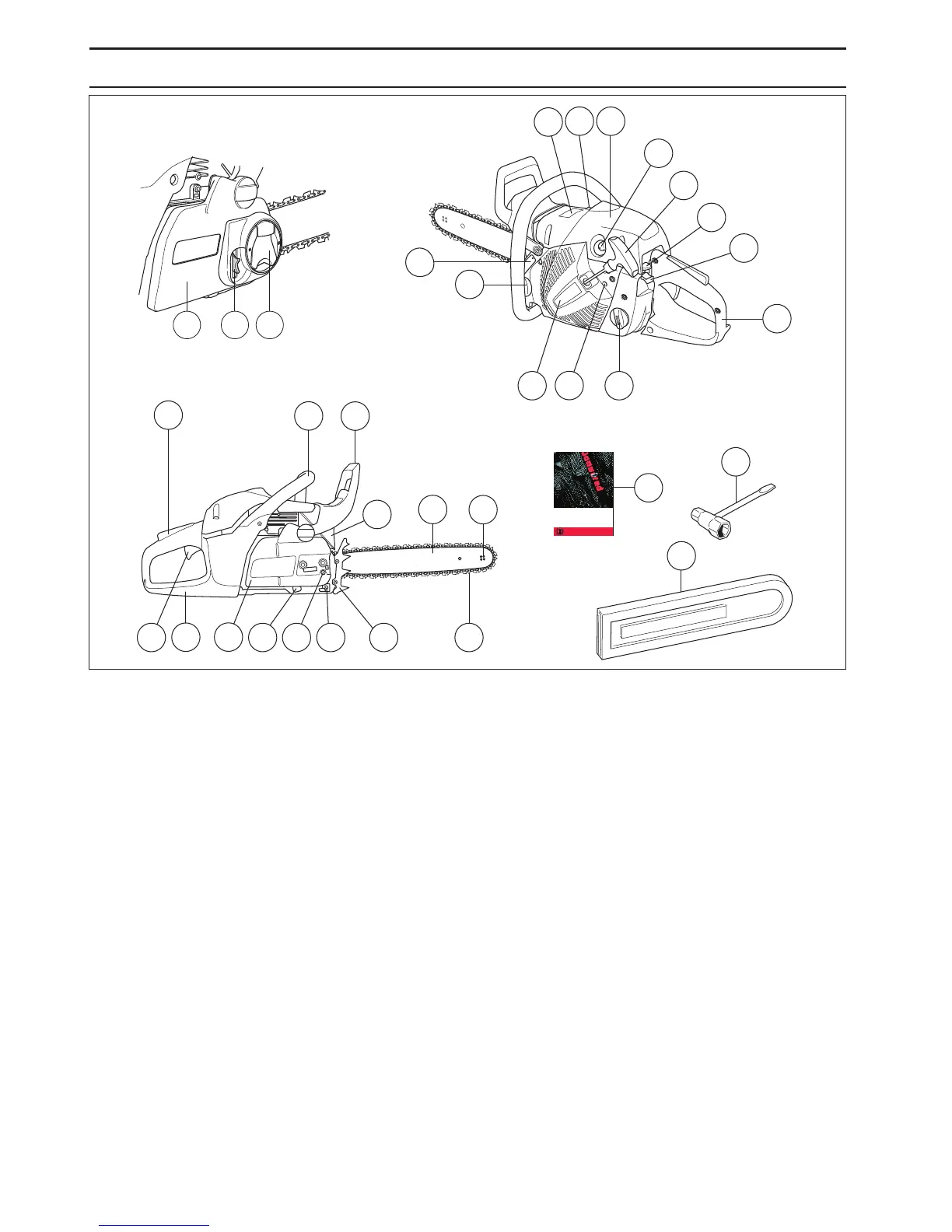

What is what on the c hain saw?
32
3
6
4
8
9
7
11
12
10
5
1
13
17
19
14
15
16
27
26
24
23
22
21
18
20
25
28 29 30
33
31
2
1 Information and warning decal
2 Decompression valve
3 Cylinder cover
4 Air purge.
5 Starter handle
6 Stop switch (Ignition on/off switch.)
7 Choke control/Start throttle lock
8 Rear handle
9 Fuel tank
10 Adjuster screws, carburetor
11 Starter
12 Chain oil tank
13 Product and serial number plate
14 Throttle lockout
15 Front handle
16 Front hand guard
17 Muffler
18 Guide bar
19 Bar tip sprocket
20 Saw chain
21 Bumper spike
22 Chain catcher
23 Chain tensioning screw (CS 2255)
24 Oil pump adjustment screw
25 Clutch cover (CS 2255)
26 Right hand guard
27 Throttle trigger
28 Clutch cover (CS 2255S)
29 Chain tensioner wheel
30 Knob
31 Operator ′ s manual
32 Combination spanner
33 Guide bar cover
