REPAIR PARTS
TRACTOR - MODEL NO. LT13A (JNA13HA)
38
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532140116 Seat
2 532140551 Bracket Pivot Seat 8 720
3 871110616 Bolt Fin Hex 3/8-16 Unc x 1
4 819131610 Washer 13/32 X 1 X 10 Ga
5 532145006 Clip Push-In
6 873800600 Nut Hex w/Ins. 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817000616 Screw 3/8-16 x 1.5 SMGML
9 819131614 Washer 13/32 X 1 X 14 Ga.
10 532174894 Pan Seat
12 532121246 Bracket Mounting Switch
13 532121248 Bushing Snap Blk Nyl 50 Id
14 872050412 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532134300 Spacer Split 28x96 Yel Zinc
16 532121250 Spring Cprsn 1.27 Blk Pnt
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532171852 Bolt SHLD 5/16-18 Unc-2A
22 873800500 Nut Hex Lock W/Ins 5/16-18
23 871110814 Bolt Hex
24 819171912 Washer 17/32 X 1-3/16 X 12 Ga.
25 532127018 Bolt Shoulder 5/16-18 X 62
26 810040800 Washer Lock Hvy HLCL Spr. 1/2
26
23
1
24
16
15
12
13
17
25
4
3
8
9
7
8
9
7
2
6
22
21
5
10
5
14
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm

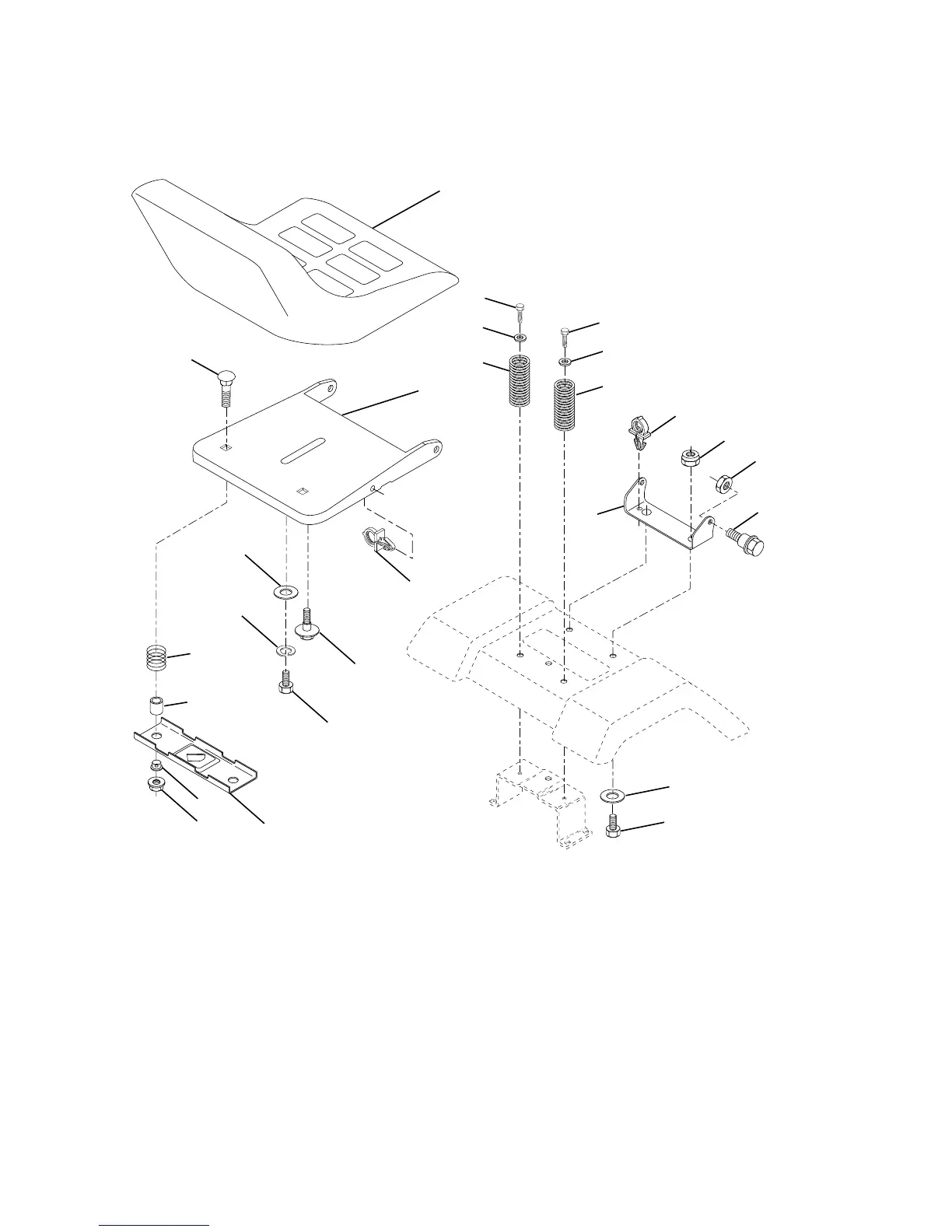

SEAT ASSEMBLY
