Jonsered LT13A User Manual

REPAIR PARTS
TRACTOR - MODEL NO. LT13A (JNA13HA)
39
10
4
3
9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
3 532106222 Tire F Ts 15 X 6 0 - 6 Service
4 532059904 Tube Front (Service Item Only)
5 532138336 Rim Asm 6"front Silver Service
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532138337 Rim Asm 8"rear Silver Service
9 532124635 Tire R Ts 18x9 5-8 C Service
10 532124926 Tube Rear (Service Item Only)
11 532175039 Cap Axle Blk 1 50 X 1 00
- - 532144334 Sealant, Tire ( 10 oz. Tube)
8
20
14
5
3 532175887 Decal Hood RH
4 532175888 Decal Hood LH
5 532170848 Decal HP Engine
7 532175884 Decal, Ins. Strg Whl.
8 532170563 Decal Deck Warn
9 532141761 Decal Fender Jonsered
10 532157032 Decal Oper.
11 532162927 Decal Hood Insert B&S White
KEY PART
NO. NO. DESCRIPTION
7
6
2
1
5,8
4,10
3,9
11
7

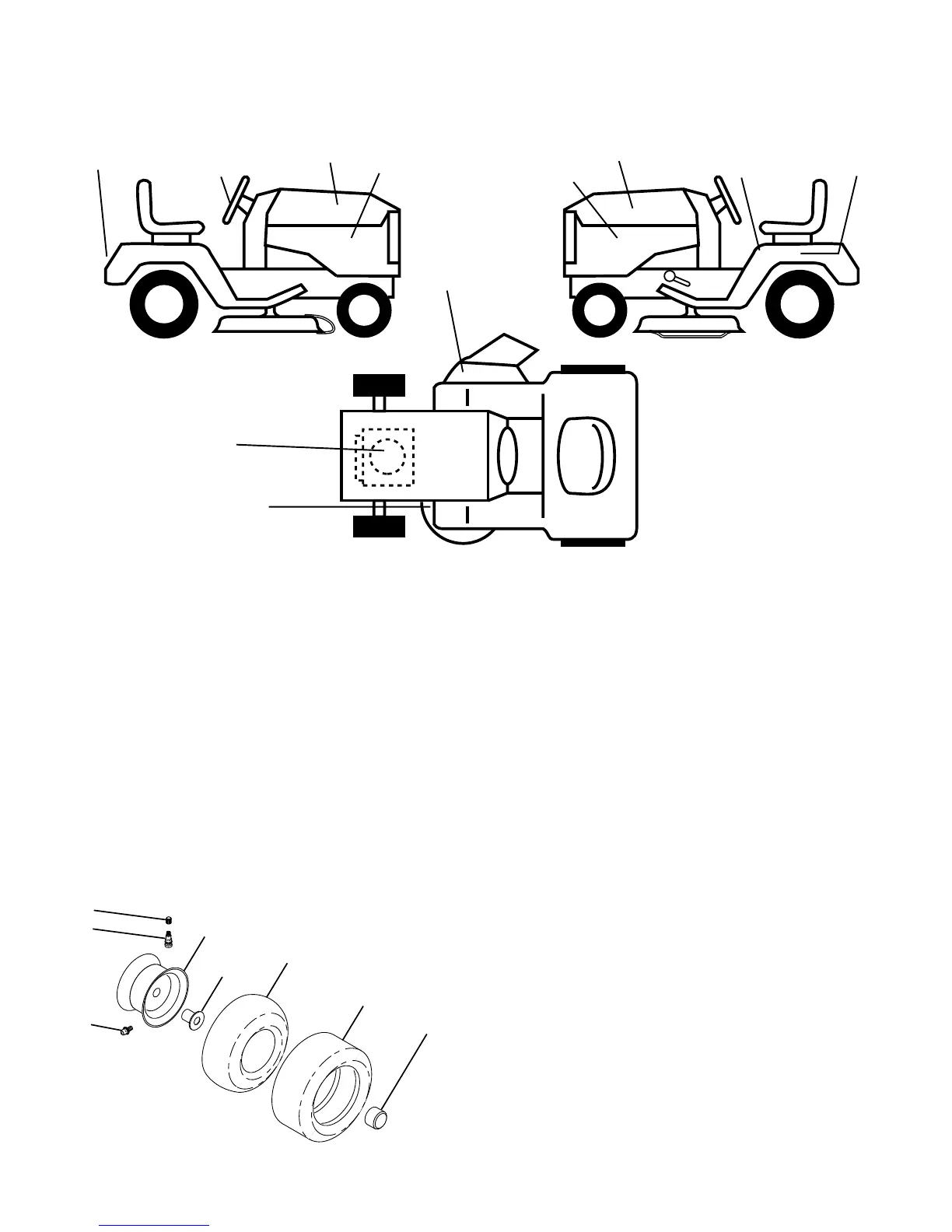

WHEELS & TIRES
14 532136832 Decal V-Belt Schematic
20 532145005 Decal Bat Dan/Psn
- - 532171284 Pad Footrest LH STLT
- - 532171285 Pad Footrest RH STLT
- - 532138311 Decal Handle Lift Height Adjust
- - 532169210 Decal By-pass
- - 532177992 Manual Operator's (English)
- - 532177993 Manual Operator's (French)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
DECALS
11
11
