Jorvik JMT6 - The Wiring Diagram With LCD Display

30
Jorvik JMT6 Low Step Through Electric Mountain Trike

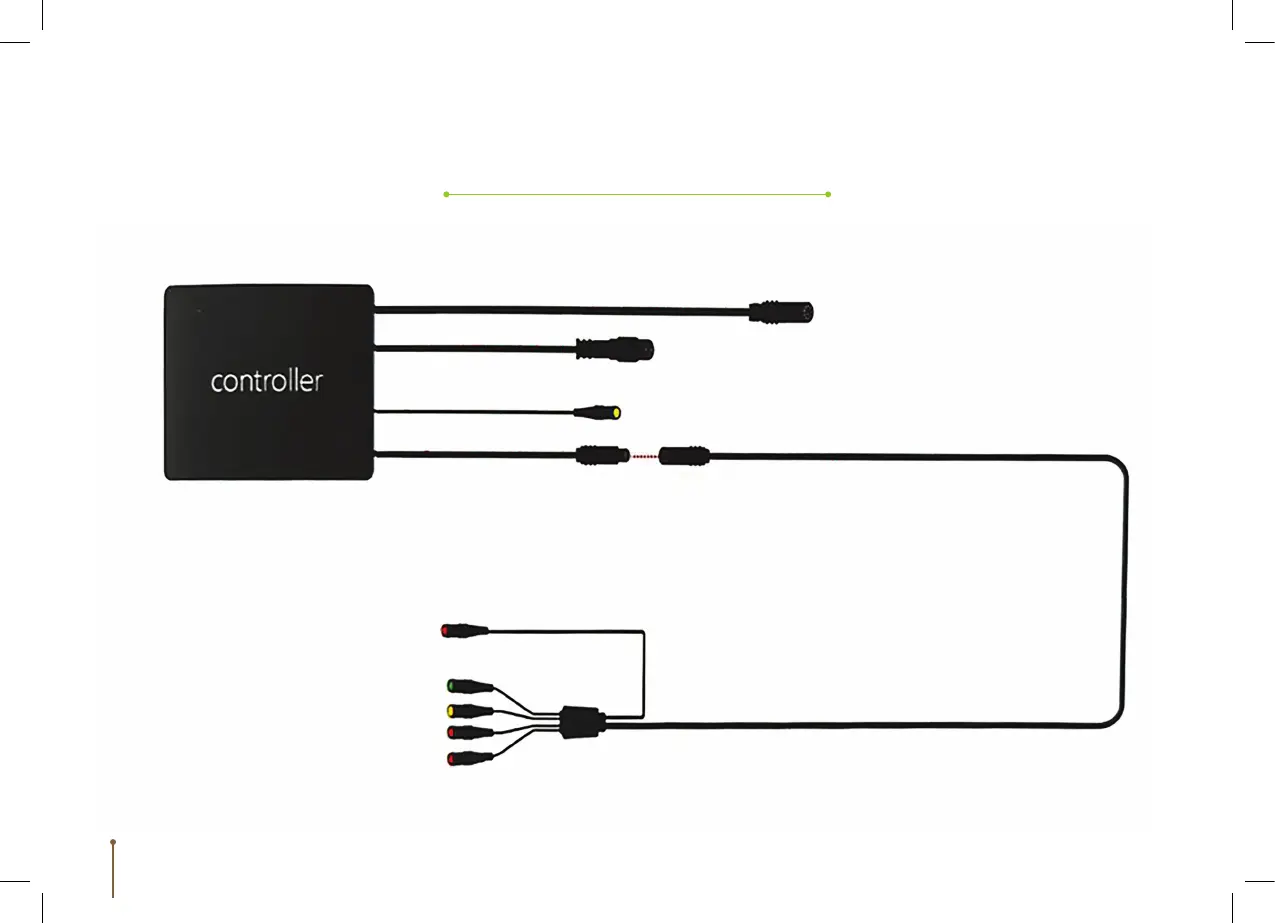

The Wiring Diagram With LCD Display
6. Motor (Black 9 Pin)
7. Battery (Black 2 Pin)
1. Headlight (Red 2 Pin)
2. LED Display (Green 5 Pin)
3. Throttle (Yellow 3 Pin)
4. Brake Lever (Red 2 Pin)
5. Brake Lever (Red 2 Pin)
8. Sensor (Yellow 3 Pin)
9. Integrated Wire (Black 10 Pin) 10. Integrated Wire (Black 10 Pin)
