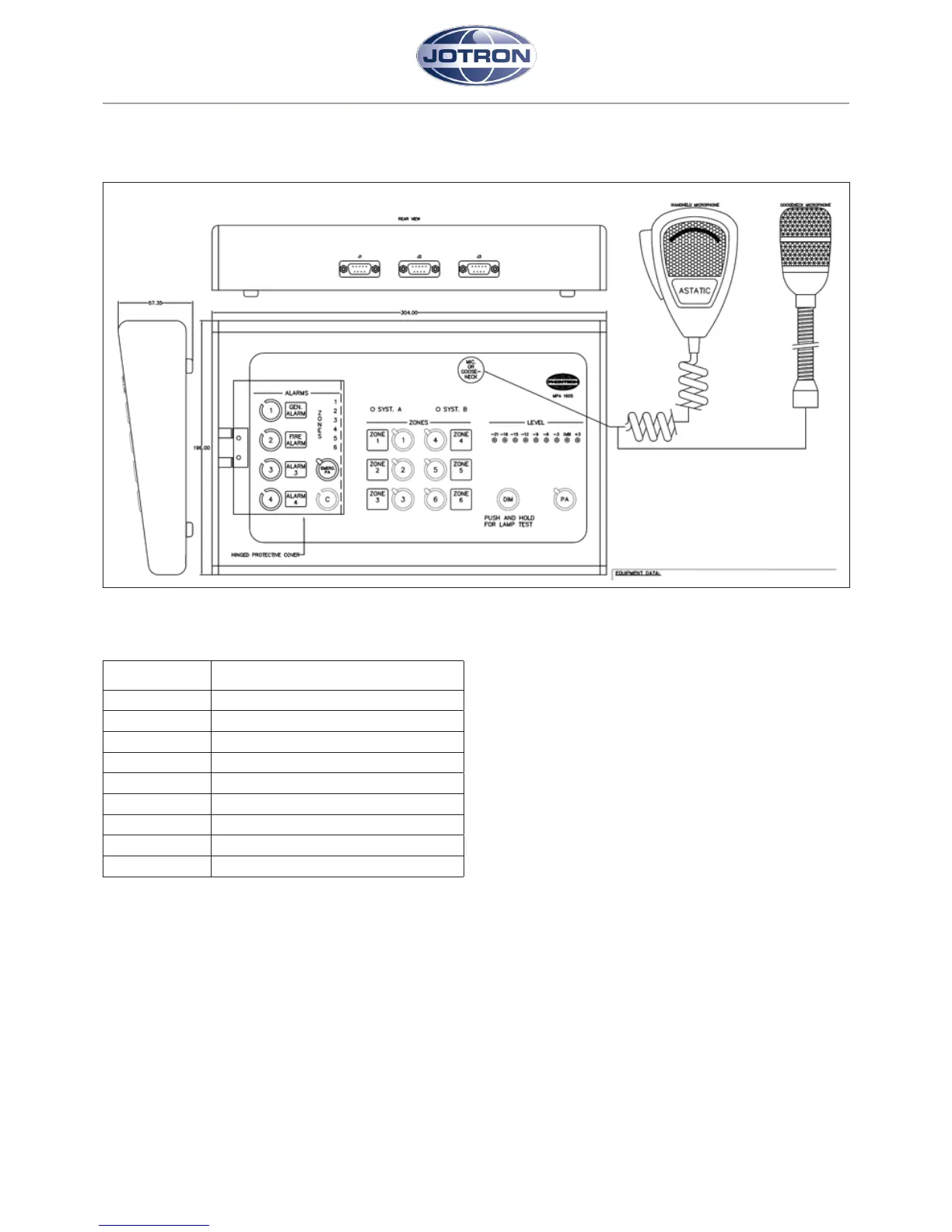

9.8 MPA 1605 - MECHANICAL LAYOUT
9.9 MPA 1605 - EXTERNAL CONNECTION
Dsub J1 & J2 
1 0V
2 Audio +
3 RS485 -
4 NC
5 NC
6 +24VDC
7 Audio -
8 RS485 +
9 NC
