jotron TA-7650C Maintenance And Repair Manual

85894_M&R_TA7650C_A 1-2

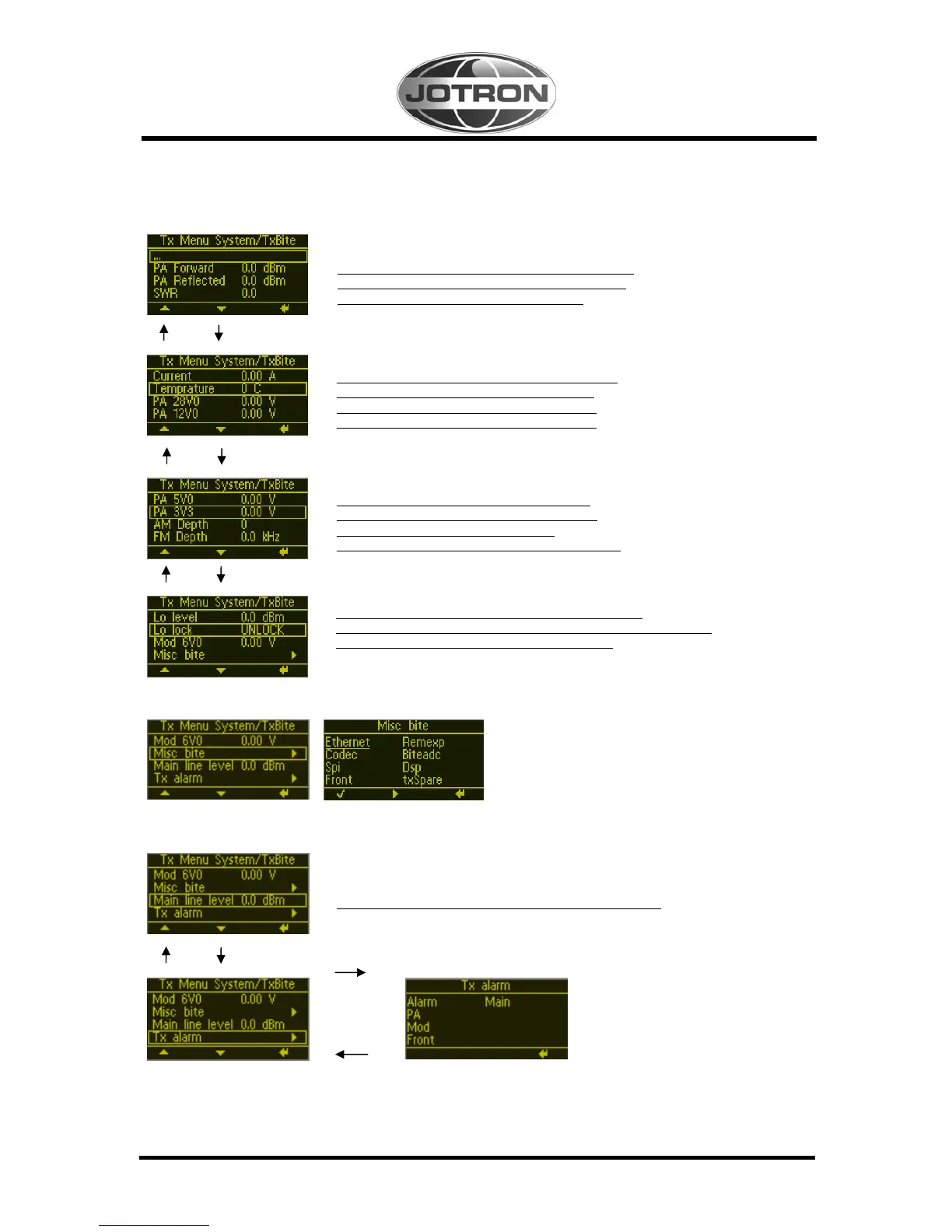

1.3 TX Bite menu
To check the BITE alarm conditions, please see chapter 1.3.1 .
PA Module:Forward power in 1/10 dBm (472 =47dBm)
PA Module:Reflected power in 1/10 dBm (12 =1dBm)
PA Module:Calculated SWR in 1/10 (15 =1:1)
PA Module:Current consumption in milliAmps (mA)
PA Module:Temperature in degrees Celcius (°C)
PA Module:+28V DC voltage in milliVolts (mV)
PA Module:+12V DC voltage in milliVolts (mV)
FbA FbB
FbA FbB
PA Module:+5V DC voltage in milliVolts (mV)
PA Module:+3V3 DC voltage in milliVolts (mV)
PA Module:AM depth (modulation) in %
PA Module:FM deviation in kHz*10 (50=+/-5.0 kHz)
FbA FbB
Modulation Module:LO level in 1/10 dBm (100 =10dBm)
Modulation Module:LO Locked (1) or unlocked (2) - Locked is normal
Modulation Module:+6V voltage in milliVolts (mV)
Main Module:Line level output in 1/10 dBm (-100 =-10dBm)
FbA FbB
Push FbC
to enter
RX Alarm.
