Jotron AS| TR7750C: Operators Manual  Functional description
Page 3-4
P/N: 84748 (G)
3.2 Transmitter, rear connections

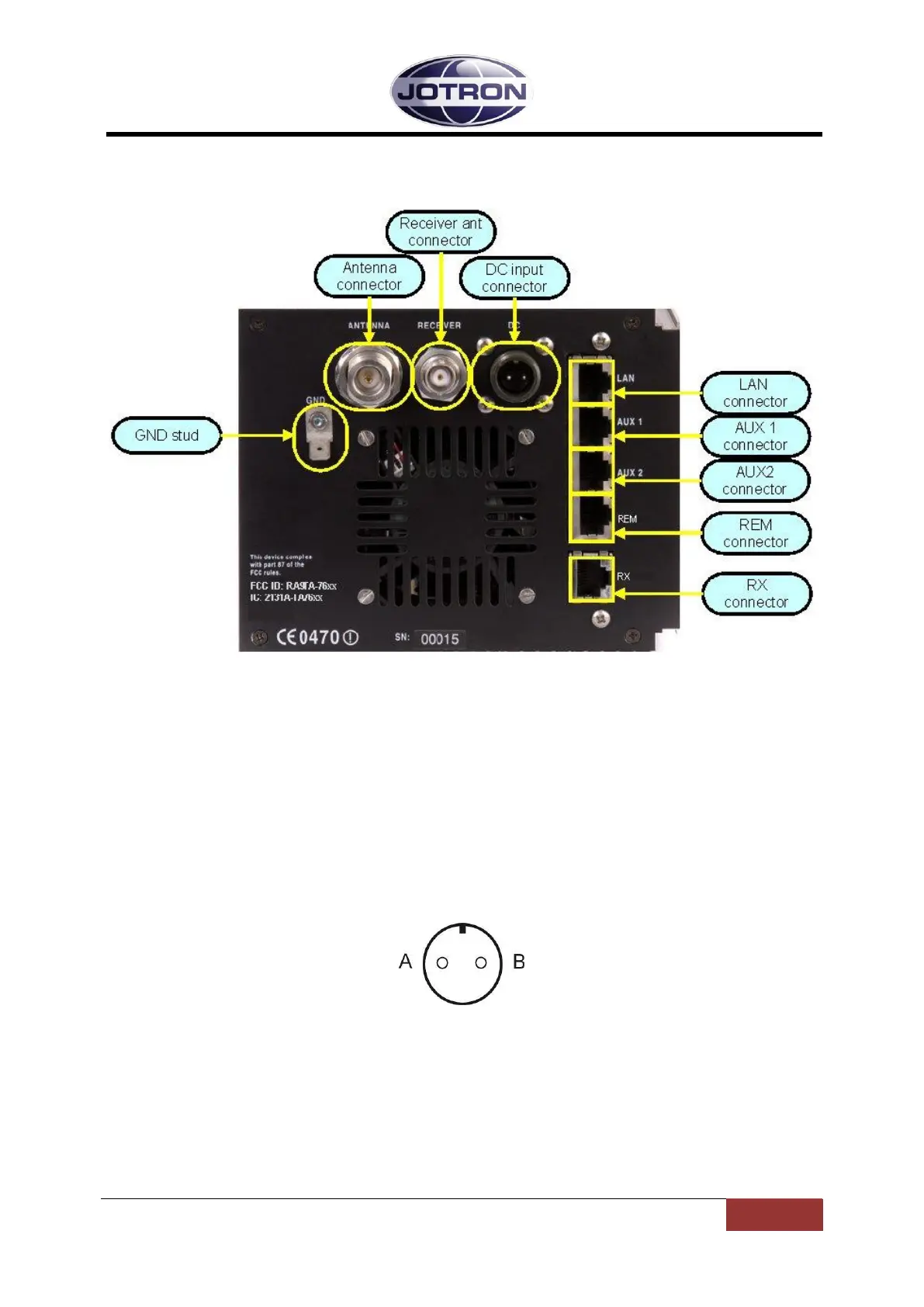

Figure 3.2-1, Rear view, transmitter unit, TA-7650C/25C/10C.
3.2.1 Antenna connector (50 ohm N)
Interface to the antenna cable for the transmitter or the transceiver when used together with a
receiver unit
3.2.2 Receiver ant. Connector (50 ohm BNC)
BNC-Type antenna output – 50 ohm. This connecor is connected to the antenna relay internally in
the transmitter unit and can be connected directly to the antenna input of a mating receiver unit
(RA7203).
3.2.3 DC input connector (Amphenol MS 3106A 10SL4S)(Jotron P/N: 96715)
Figure 3.2-2, Transmitter DC input connector, rear view
Connector for DC supply (21.6 - 31.2 VDC).
Connected to the mating power supply, PSU-7002, or to an external DC supply.
A is the positive (+) connection and B is the negative (-) connection points.
