99213_UM_TR710_D 19

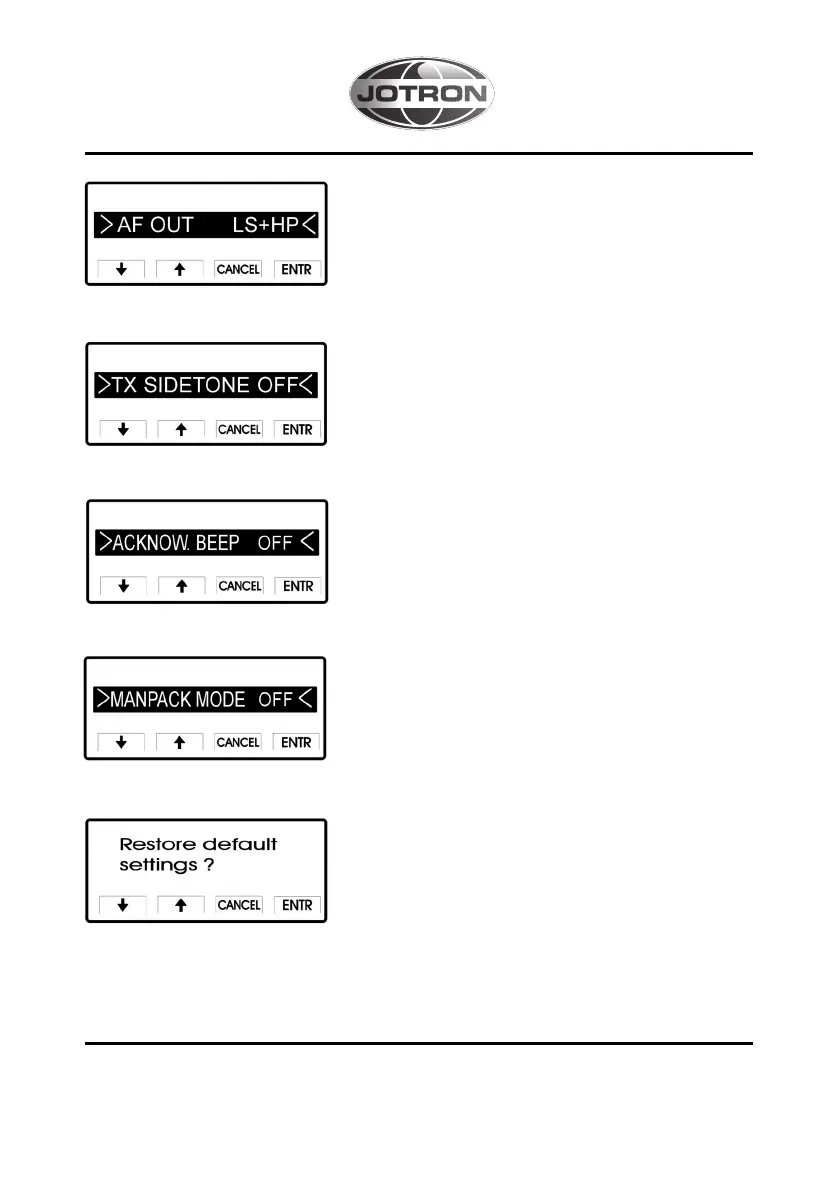

MANPACK MODE ON/OFF
Set the following parameters:
Forward power = 25 % /2.5 w.
Set the battery symbol in the display.
Turn off the radio automatically when the batte-
ry voltage is lower than 10.3 Volt.
Default CANCEL/ENTER
Restore default settings.
When choosing ENTR all settings except fre-
quencies and channels will be set to default
values.
AF OUT LS+HP/LS/HP/EXT
Select between internal Loudspeaker (LS),
Headphone (HP) or External loudspeaker (EXT).
If the microphone is fitted with an internal loud-
speaker, this can be activated by choosing HP.
TX SIDETONE ON/OFF
When the function is ON the operator can hear
his own voice in the headphone when transmit-
ting.
If the microphone is fitted with an internal loud-
speaker the function has to be set OFF to avoid
feedback.
ACKNOW.BEEP OFF/SHORT/NORM/LONG
Set the length/intensity of the beep for each
time the function keys are operated.
