4.2 Prior to installation - Jøtul F 305
with base

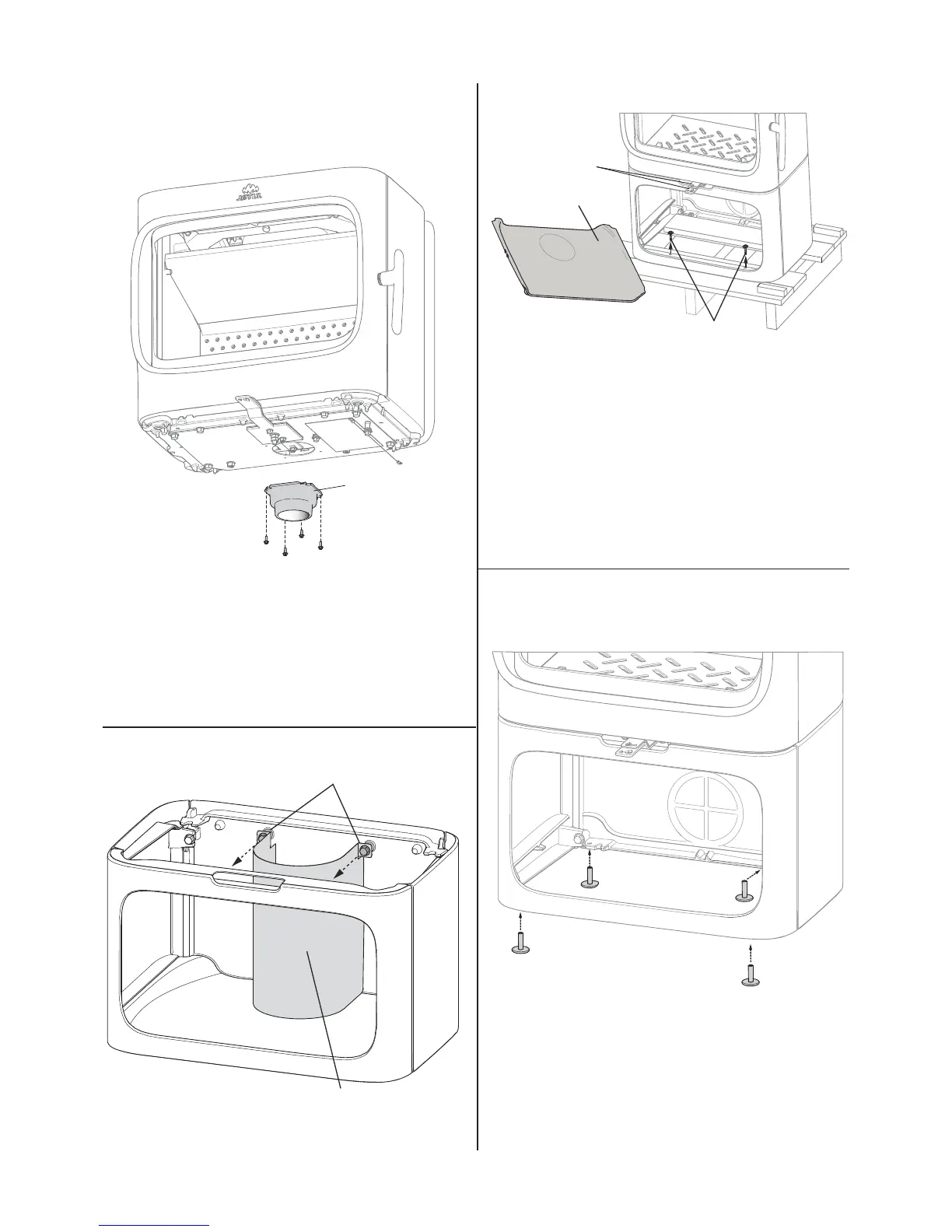

Fig. 7
A
5. If external air supply is not used, the external air connector
(A) can be unscrewed, if desired. Remove the four screws
used for fastening the external air connector and then the
connector itself. (For products with base: If necessary, you
can unscrew the heat shield beneath the burn chamber
in order to facilitate the dismantling of the external air
connector.
6. Install the convection plate back in its place after removing
the external air connector.
Fig. 8
A
B
1. First remove the outside air cover (A) by unscrewing the
screws (B).
Fig. 9
B
A
C
2. Remove the gloves from the ash pan.
3. Lift the baf e, ash retainer, and bag of screws out of the
burn chamber.
4. Check that the control handles (C) move freely.
5. Remove the bottom plate (A) by taking hold of the front
left corner. Lift up the plate and remove it from the base
at an angle.
6. Remove the four transport screws (B) that fasten the oven
to the wooden pallet.
7. Lift the oven from the pallet and set it up (see g. 1).
Fig. 10
8. Adjust the base with the height adjustment screws using
the hex key placed in the bag of screws. NB! Take into
account the height of the oor plate.
9. Mark on the wall if there has to be a rear outlet for ue pipe
and external air supply (see g. 1). If there has to be a
rear outlet for ue pipe and/or external air supply, move the
oven from the wall and prepare the connections.
