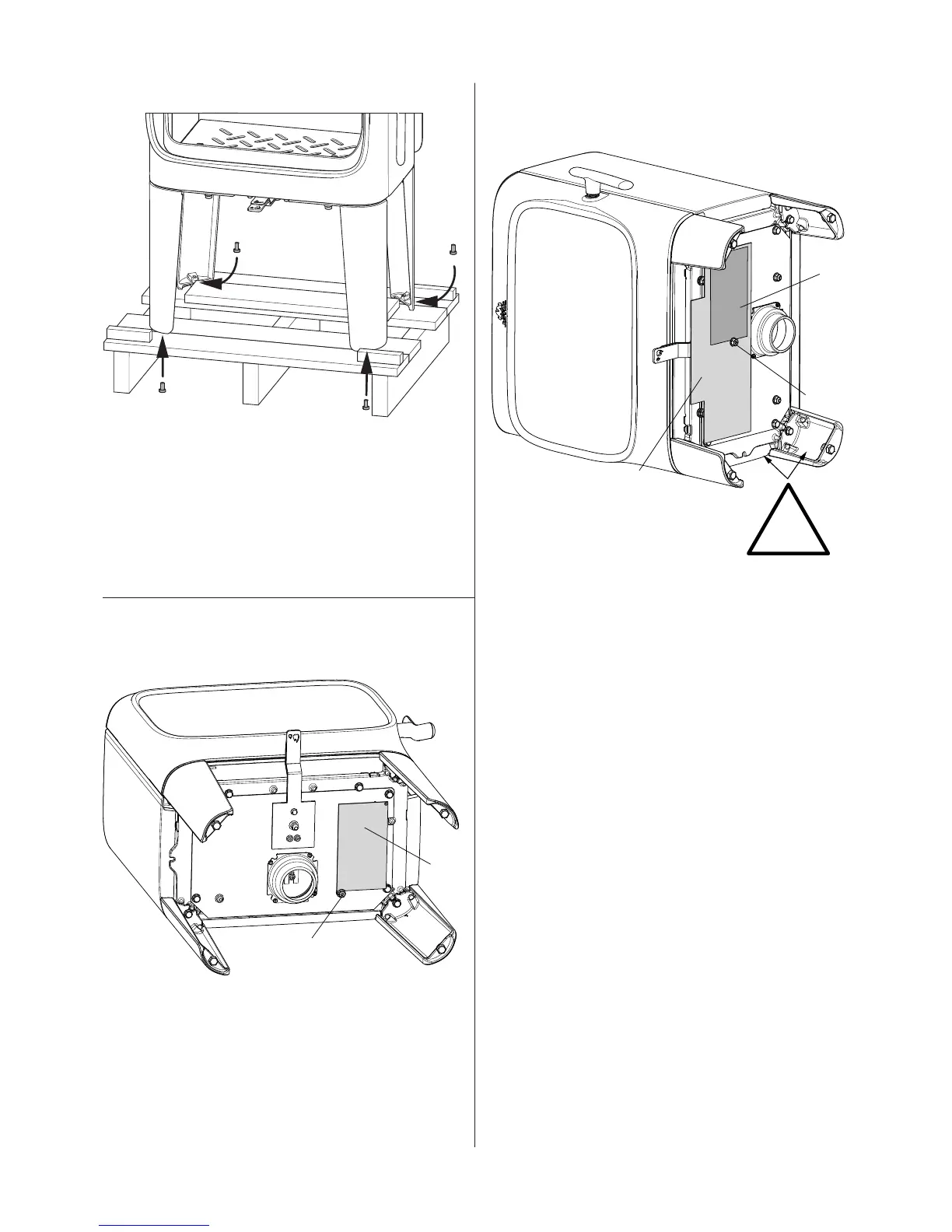

Fig. 4
A
A
A
A
6. Install the height adjustment screws with plastic caps (A)
placed in the bag of screws.
7. Lift the oven from the pallet.
8. Set up the oven and adjust to the right height using the
height adjustment screws. NB: Take into account the
height of the fl oor plate. Mark on the wall if there has to
be a rear outlet for fl ue pipe and external air supply.
Fig. 5
A
B
1. Take the approval label (A) out of the ash pan and fasten
it with the nut (B), as displayed. The nut needs to be
tightened only with the fi ngers. NB: Do not cut off the
wire used for fastening the label.
Jøtul F 305 with short legs
Fig. 6
!
2
2
1
1
2
A
B
C
1. Lay the product carefully on its left side.
2. Dismantle the long legs and install the short ones.
3. Take the approval label (A) out of the ash pan.
4. Install the heat shield (B) and approval label (A) with nut (C),
as displayed. The nut needs to be tightened only with the
fi ngers. NB: Do not cut off the wire used for fastening
the label.
