Jøtul F 305 User Manual

17
ENGLISH

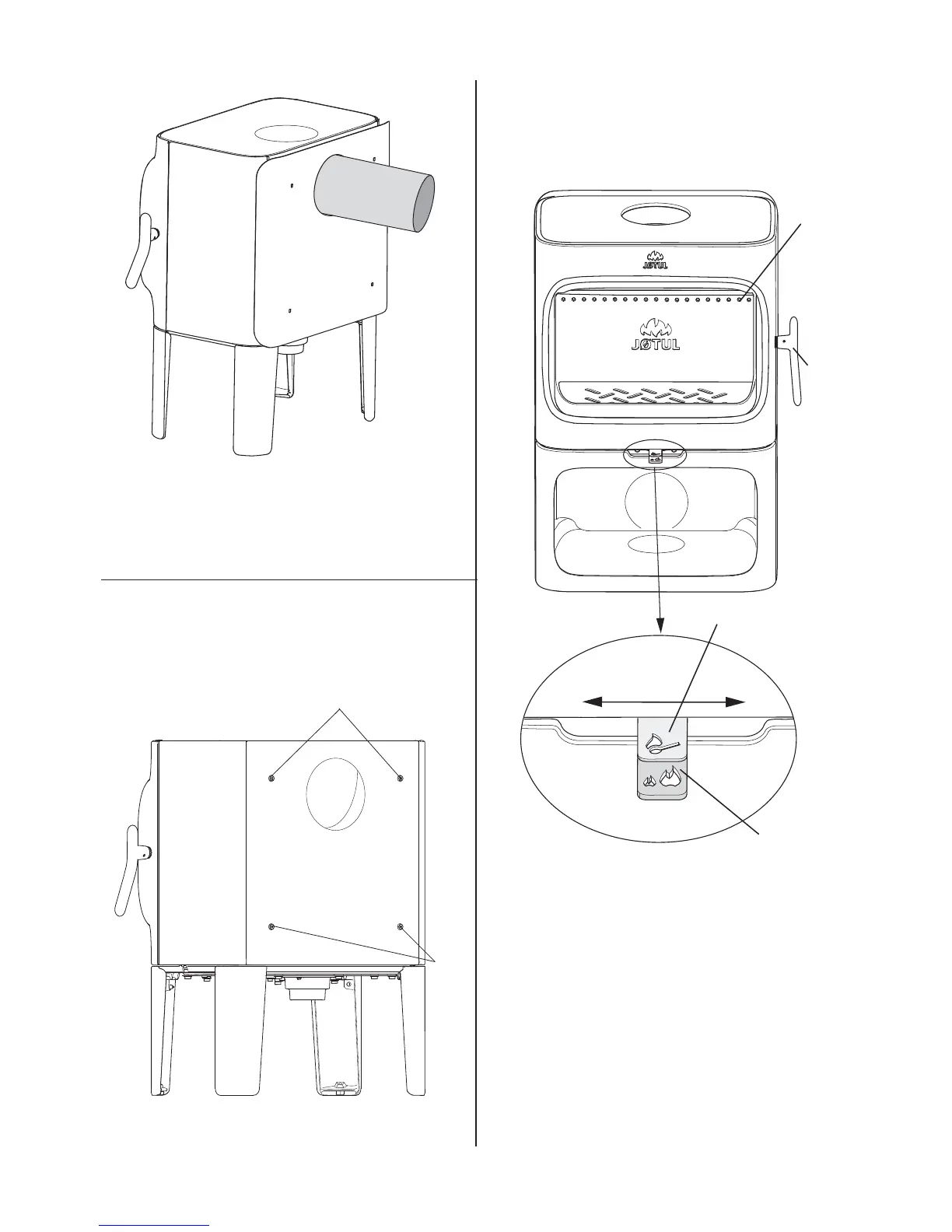

Fig. 31
13. Insert the fl ue pipe into the rear outlet.
NB: It is important for the joints/fl ue pipes to be sealed
completely. Air leaks may prevent them from operating
properly.
Product without convection plate
NB: If you will not use a convection plate, the product will have
different setup conditions (see fi g. 1).
Fig. 32
A
A
1. If you will not use the convection plate on the burn chamber,
screw the four screws (A) back in place. Use the hex key
placed in the bag of screws.
4.7 Performance check
Always check the control handles once the product has
been assembled. These should move easily and work in a
satisfactory manner.
Fig. 33
Open
Closed
E
B
A
C
The Jøtul F 305 is equipped with the following
operating options:
Air vent (A)
Push to the left: Closed
Push to the right: Open
Ignition vent (B)
Push to the left: Closed
Push to the right: Open
Door handle (C)
Opens by pulling the handle.
Stacking height (E) for wood (the holes may not be covered).

Jøtul F 305 Specifications

General

Type	Wood Stove
Material	Cast Iron
Flue Outlet	Top or Rear
Flue Size	6 inches
EPA Certified	Yes
Emissions	2.5 g/h
Heating Capacity	up to 1, 200 sq. ft.
