Jøtul F 370 - Assemble the Firebox and Pedestal

13
Jøtul F 370 U.S. 10036803_P12
5.4 Attach the Firebox to the Pedestal
1. Spread the shipping carton out to protect the floor
and carefully lay the firebox on its side.
2. Use a 13 mm wrench to remove the four, M8 x 25 mm
bolts from the bottom of the firebox as shown in fig. 13.
3. With assistance, attach the Pedestal to the Firebox
as shown in fig. 14 using the four M8 x 25 mm bolts
previously removed. Tighten securely.
4. Raise the stove into an upright position and place the
serialized Safety Label directly under the firebox on
the pedestal top plate so that it is accessible from the
front of the stove.

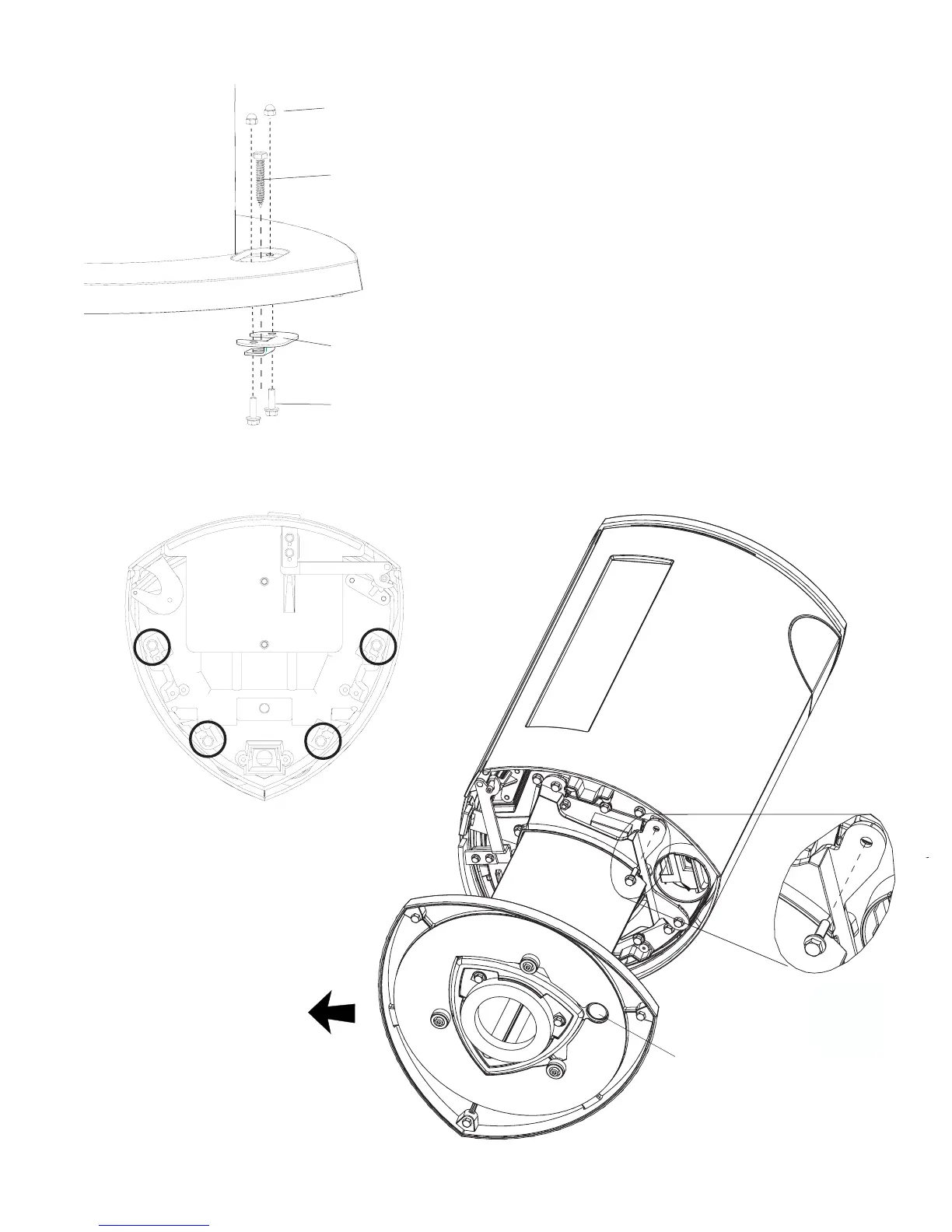

Figure 13.
Remove four bolts from the firebox bottom.
4x
Figure 14.
Join the Pedestal and Firebox assemblies.
FRONT
Anchor Bolt
Access Hole
x 4
Figure 12.
Attach the anchor bracket to the pedestal base.
M6 x 20 mm
hex bolts
Anchor
Bracket
2 1/2” Lag
Bolt
Acorn Nuts
