PY500AC SLIDING GATE OPERATOR
4
Gate operator
Gear
Groundsill
Input power
Plain washer
Nut
Spring washer
Nut

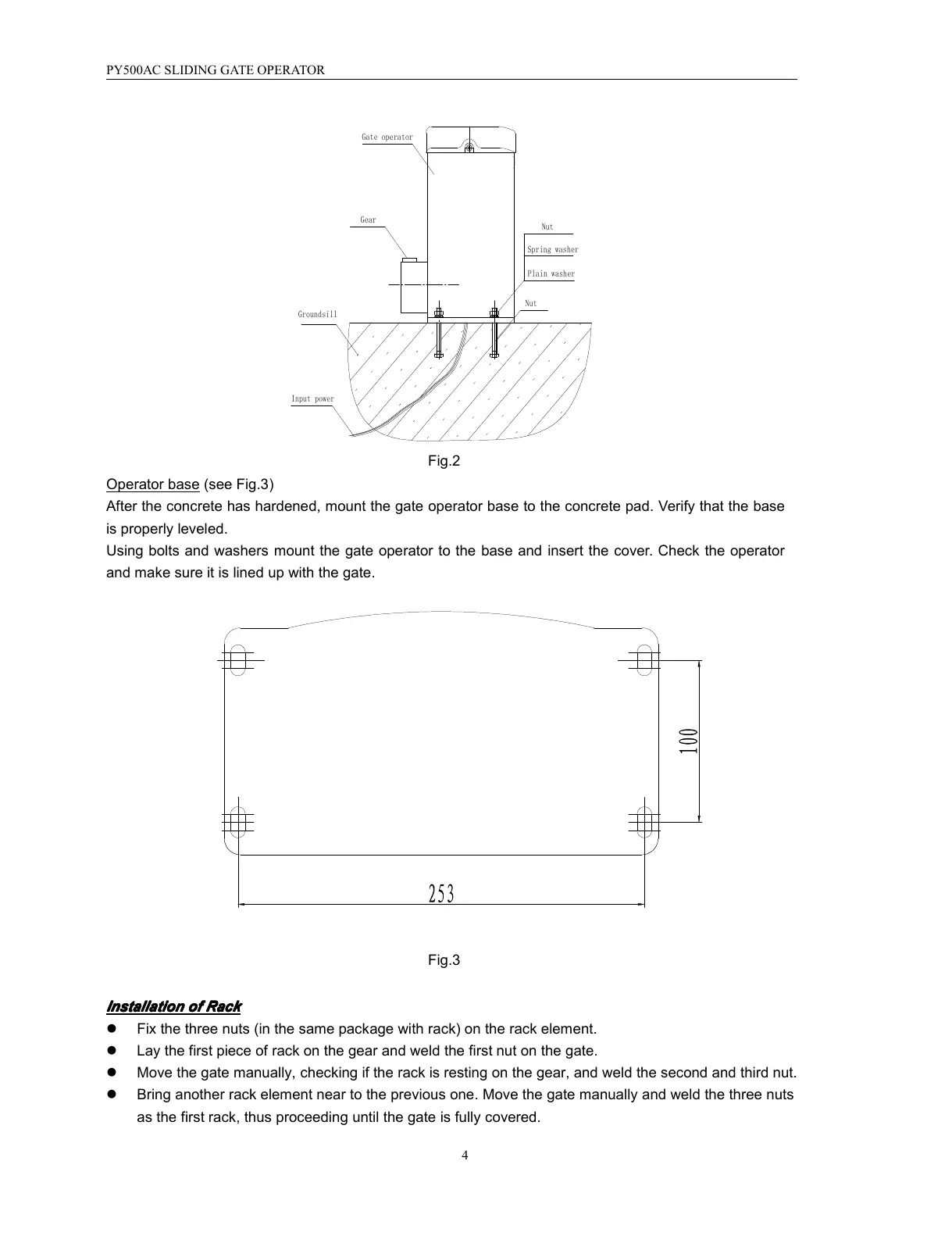

Fig.2
Ope rator b ase (see Fig.3)
After the concrete has hardened, mount the gate ope rator base to the concrete pad. Verify that the base
is properly leveled.
U sing bolts and washers m ount the gate ope rator to the base and insert the cover . Check the operator
and make sure it is lined up with the gate.
Fig.3
Installation
Installation
Installation
Installation of
of
of
of Rack
Rack
Rack
Rack
� Fix the three nuts ( in the same package with rack) on the rack element.
� Lay the first piece of rack on the gear and weld the first nut on the gate.
� Move the gate manually, checking if the rack is resting on the gear, and weld the second and third nut.
� Bring another rack element near to the previous one. Move the gate manually and weld the three nuts
as the first rack, thus proceeding until the gate is fully covered.
