PY500AC SLIDING GATE OPERATOR
7

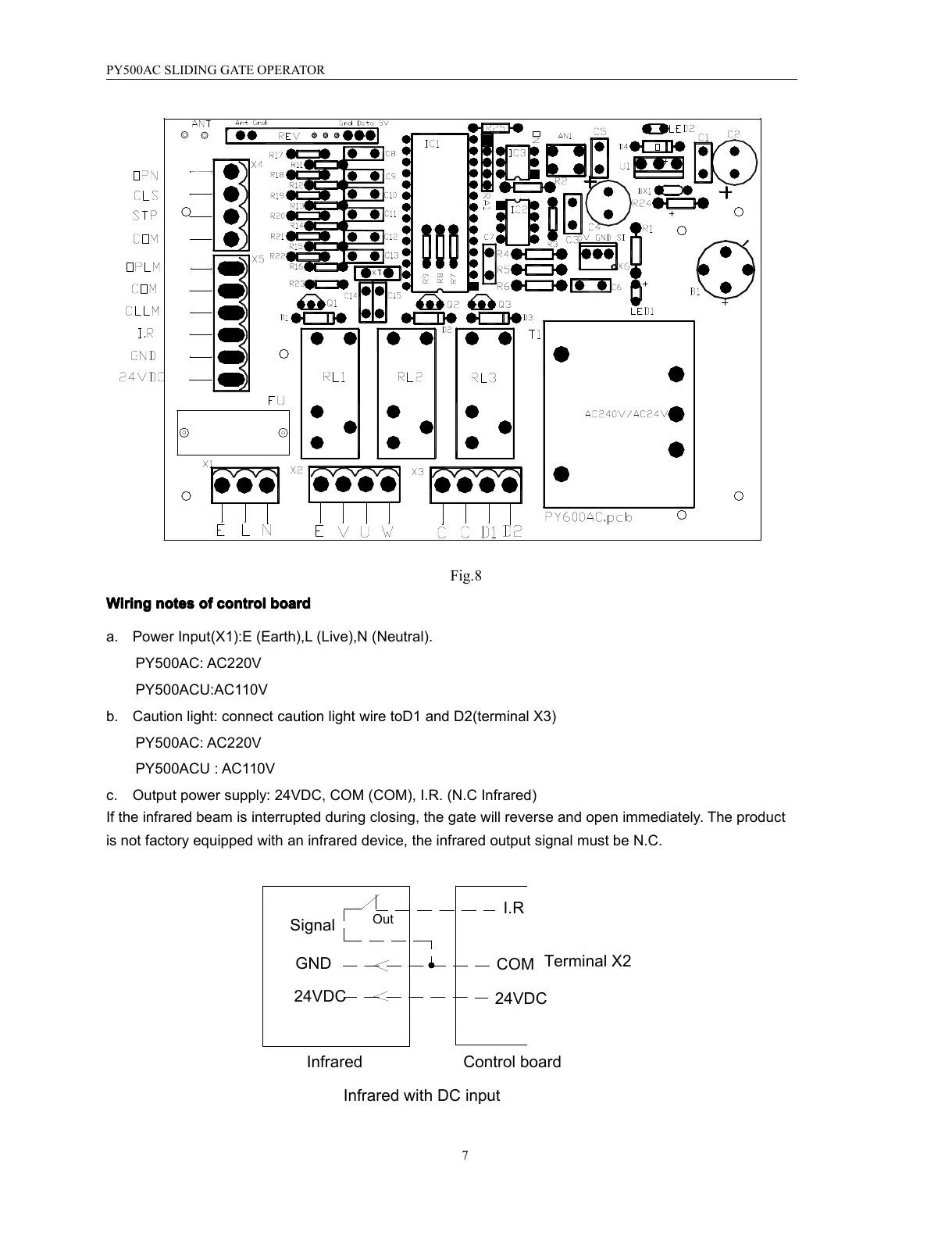

Fig.8
Wiring
Wiring
Wiring
Wiring notes
notes
notes
notes of
of
of
of control
control
control
control board
board
board
board
a. Power Input (X1) :E (Earth),L (Live),N (Neutral) .
PY500AC: AC2 2 0V
PY500ACU:AC110V
b. Caution light: connect caution light wire toD1 and D2(terminal X3)
PY500AC: AC2 2 0V
PY500ACU : AC110V
c. Output power supply: 24VDC, COM (COM), I.R. (N.C Infrared )
If the infrared beam is interrupted during closing, the gate will reverse and open immediately. The product
is not factory equipped with an infrared device, the infrared output signal must be N.C.
GND
24VDC
Out
I.R
COM
24VDC
Terminal X2
Infrared Control board
Infrared with DC input
Signal
