NXU-2B Operations Manual
1-8

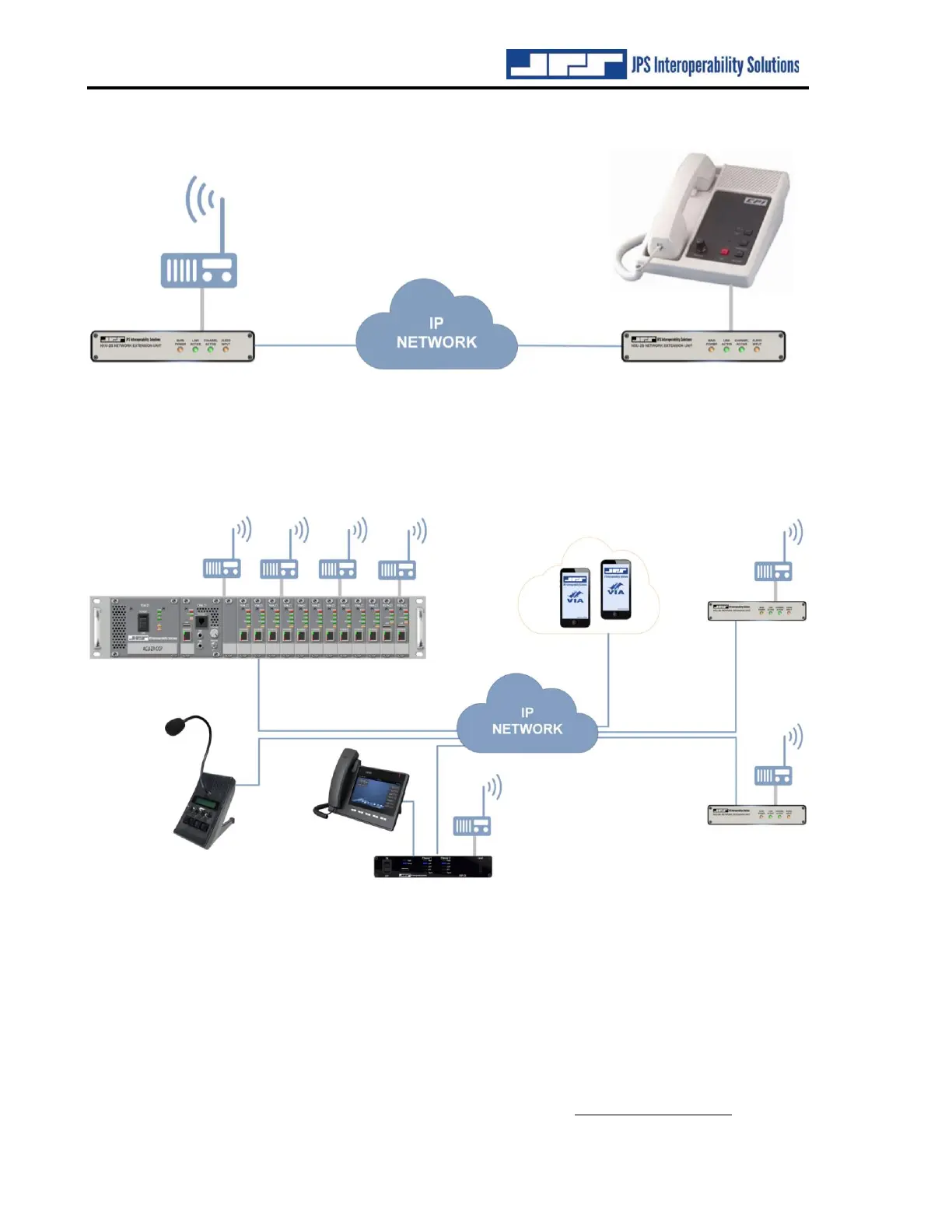

Figure 1-3 NXU-2B Pair Creates Remote Dispatch Capability Using an LE Device
A pair of NXU-2Bs connect an LE audio console device to a radio over the IP network. The basic
function is similar to the radio-to-radio system, except that one radio is replaced by the LE device.
Figure 1-4 NXU-2Bs Connect Radio Channels to an ACU-Z1 Interop System
The new JPS “Z” product line of interoperability gateways also includes RoIP interfaces, and
therefore the NXU-2B can be used to interface radios and other 2/4 wire devices to them. The
ACU-Z1 modular gateway shown in the upper left can make up to 12 local connections using its
plug-in modules. It also has the capacity to include a large number of virtual streaming channels,
enabled by the NXU-2Bs at the right or the two-channel RSP-Z2 depicted in bottom center.
Similarly, the new Z2 Controller (not shown) can handle a large number of virtual streaming
channels. Contact JPS for more information or visit our website: www.jpsinterop.com
