JRC JMA-5322-9 - Page 224

To Next Page

To Previous Page

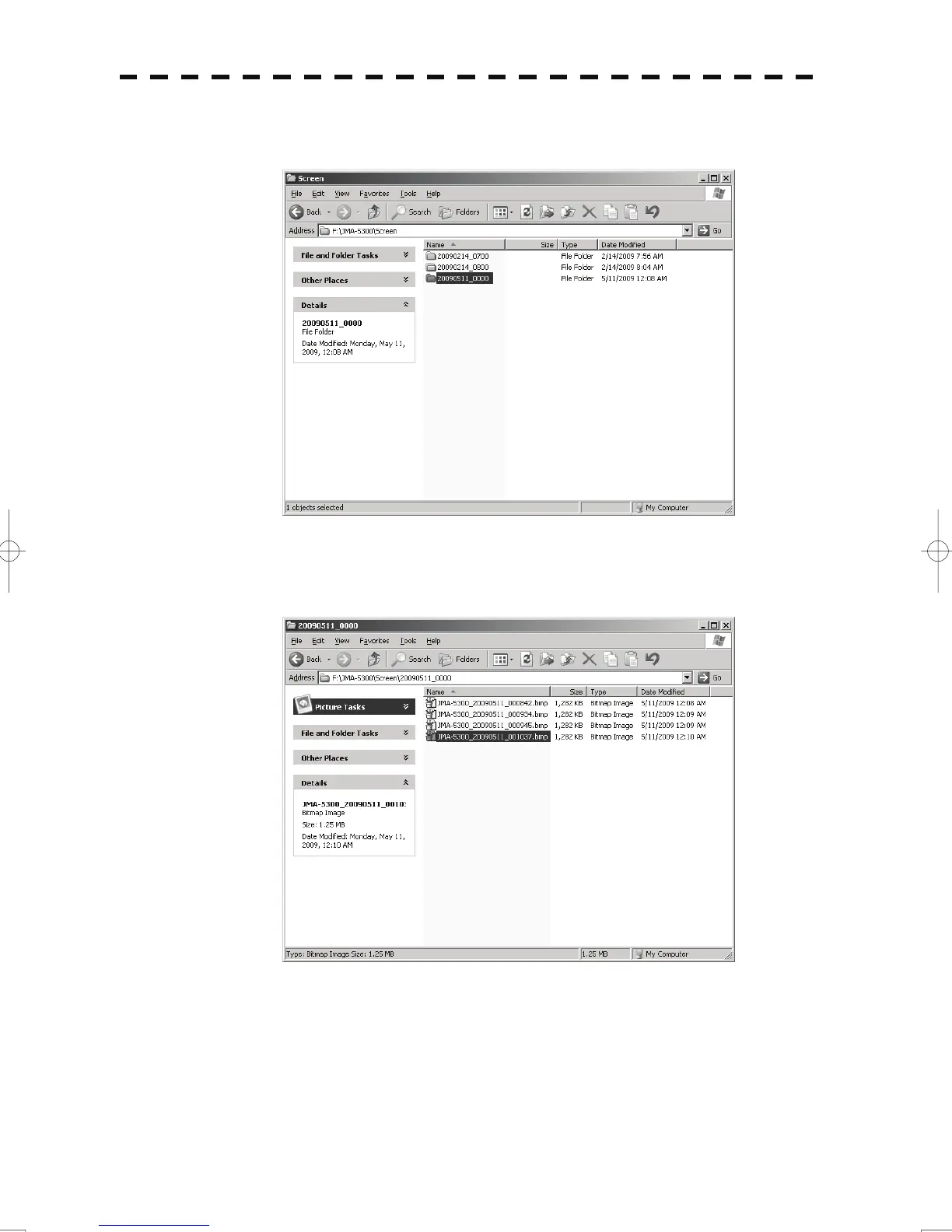

4 Open the folder of saved files.

Folder is named "YYYYMMDD_hh00". * Y : year, M: month, D : day, h : hour

5 Open the file.

File is named "JMA-5300_YYYYMMDD_hhmmss". * m : minute, s: second
