A Phillips screwdriver for 4 mm screw
•
A Phillips screwdriver for 6 mm screw
[Replacement procedure]

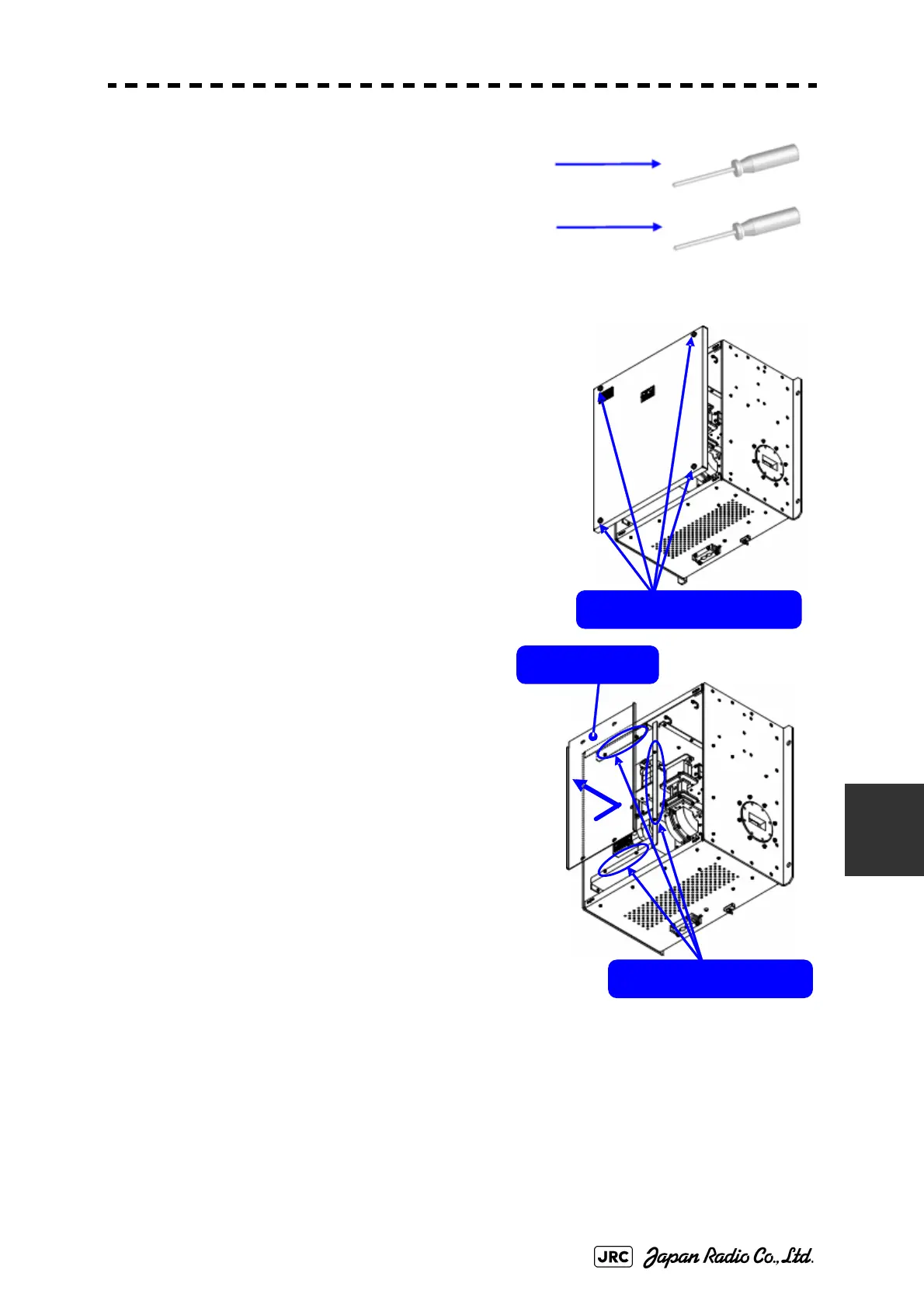

1) Loosen the four screws and remove the cover.
The screws are slotted captive screws.Use a
flatblade screwdriver.
2) Remove the screws (six M4 screws) and slide
the modulator cover to the right to remove it.
Remove the four screws.
Loosen the six screws.
Modulator cover
