JMA-9100/7100 Installation Manual > 3.INSTALLATION OF DISPLAY UNIT > 3.8 CONNECTIONS WITH AIS
AIS data can be displayed on the radar screen even if the transmission signal
(AISTX+,AISTX-,AIS_TG of TB4601) from the radar display unit to the AIS is
not connected.
By connecting the transmission signal (AISTX+,AISTX-,AIS_TG of TB4601)
from the radar display unit to the AIS, it is possible to stop the AIS alarm
displayed on the radar screen.

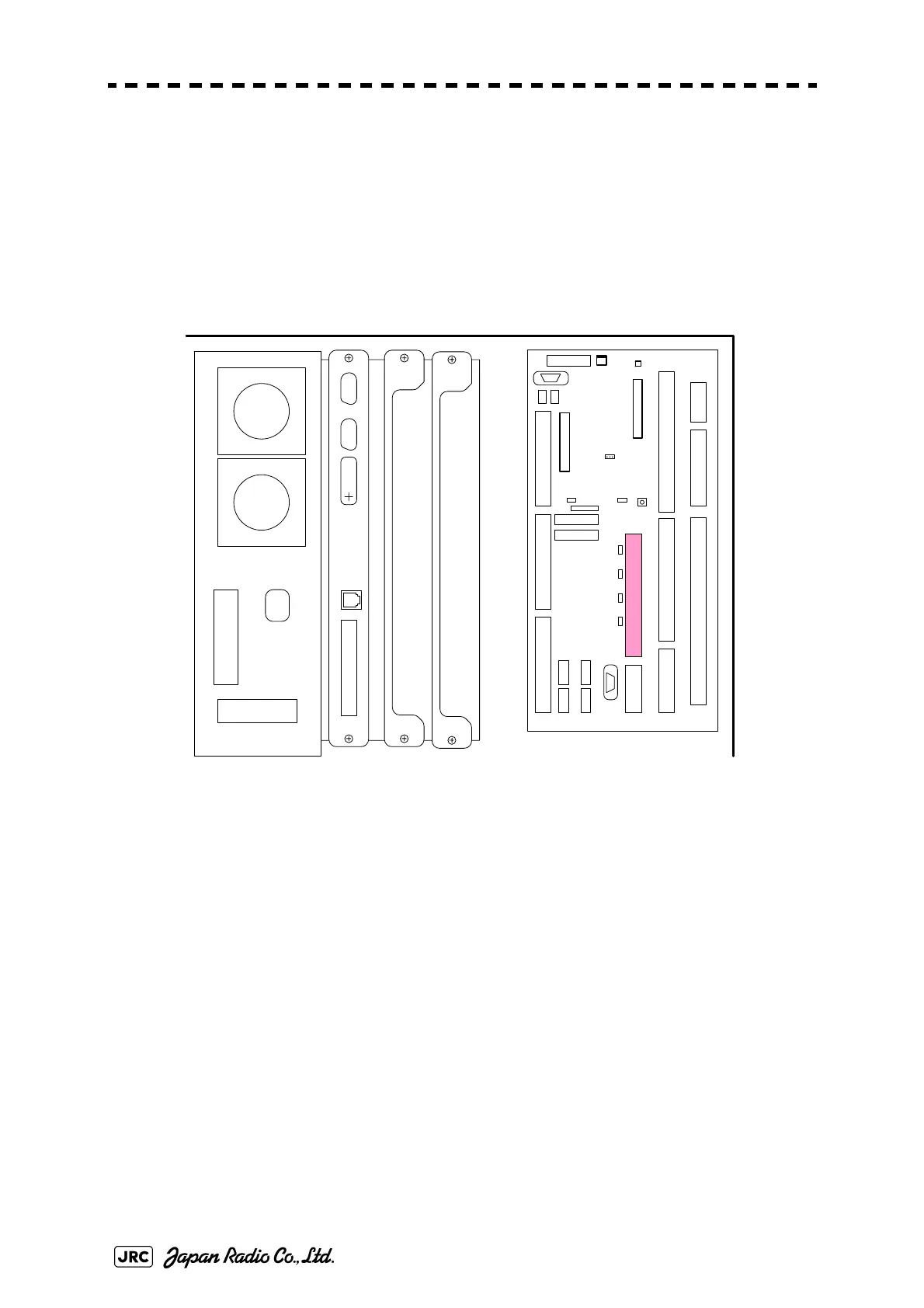

Fig 3-29: Arrangement of TB4601
Operation check is possible by the use of the LED on the terminal board circuit
CQD-2097. See Section 3.12.1 Serial Signal.
J4307(ISW-2CH
)
J4304
J4306 (ISW-1 CH)
J4301
TERMINAL BOARD
TB 2
J4313
J4309
J4314
J4302J4303
TB4101(ANT)
TB4301
(PWR SRC)
TB4401 (EXT RADAR)
TB4201 (ISW IN/OUT)TB4501 (OPTION)
TB4801 (LOG)
TB4701
(G YRO )
TB4601 (ALARM)
J4 310
J4312 OPE2
J4311 OPE1
TB1A TB1B
TB1C TB1D
J4308
ISW
J4315
J4305
PC430
COM
