4－6
JMA-9100/7100 Installation Manual > 4.INITIAL SETTING > 4.1 GYRO INTERFACE SETTING
*When NMEA Input is activated, settings for 1-4 of S1 do not influence operation. (Don't care)
*Do not change settings for 1-5 of S2 from default settings made upon shipment.
(1-2-3-4-5 → ON-OFF-OFF-OFF-ON)
*With regard to the settings for 5-8 of S1, when there is a log to be connected, set an appropriate
type and ratio in accordance with the log.
*When NMEA Input is enabled, the true bearing value in Section4.6 TRUE BEARING SETTING
cannot be set.

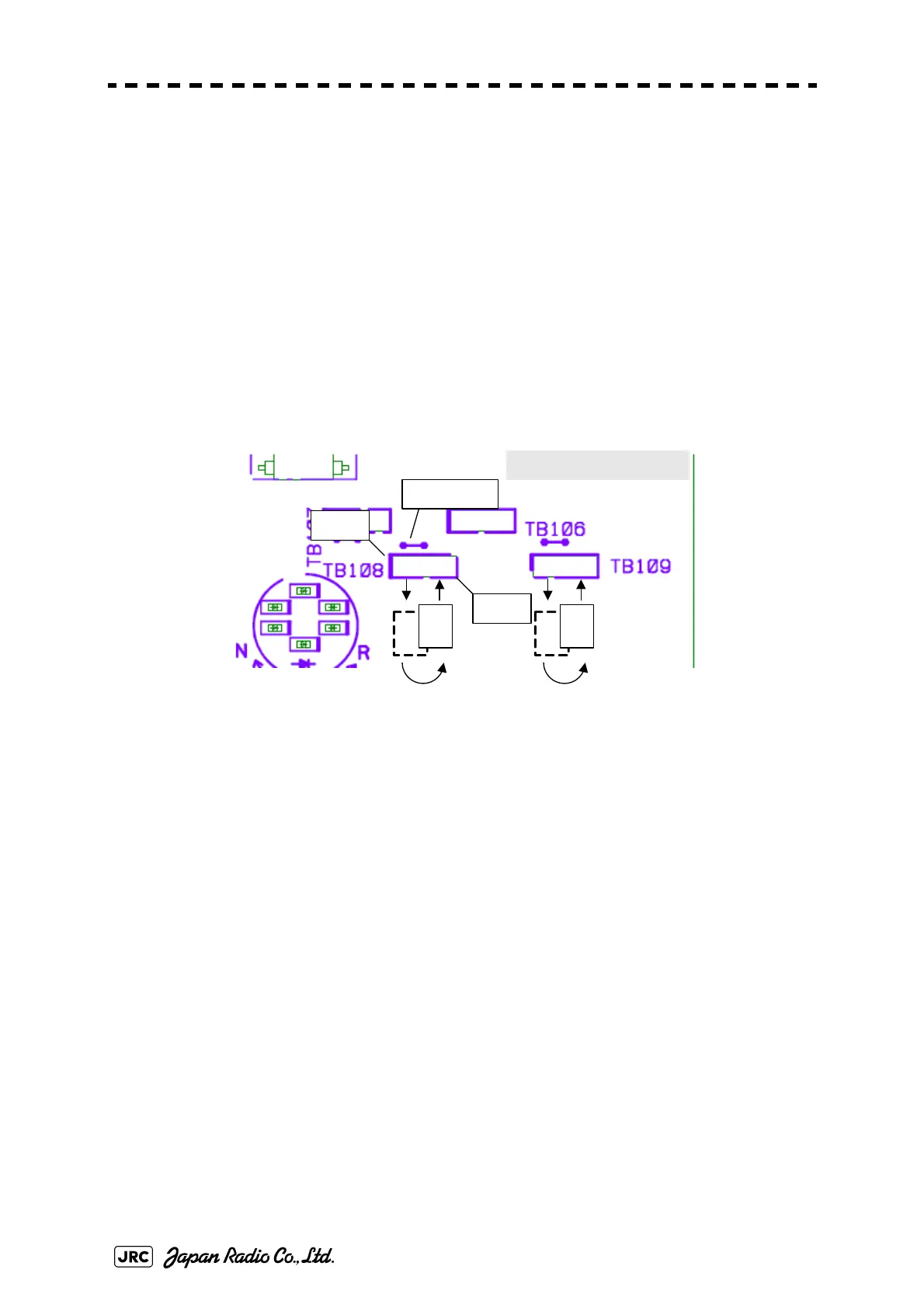

Fig 4-3: TB108,TB109
1:THICK
1:太線
DEFAULT POSITION
標準位置
3:THIN
3:細線
TB108 ,109 SETTING AT NMEA INPUT
NMEA入力時のTB108 ,109 ショートプラグ位置
