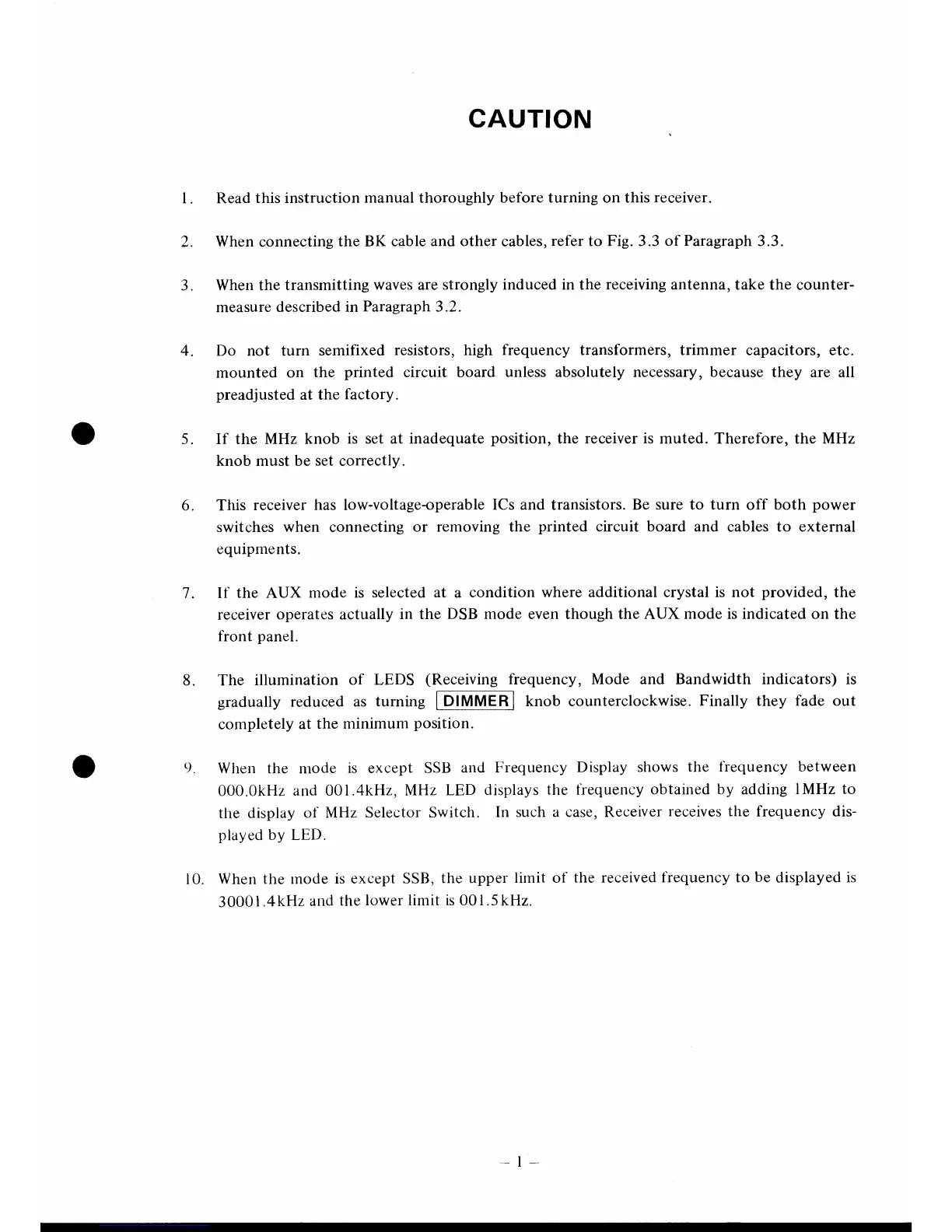

CAUTION
l. Read
this instruction
manual thoroughly before turning on
this receiver.
2.
When
connecting
the BK cable and
other cables, refer to Fig. 3.3 of
Paragraph
3.3.
3. When the
transmitting
waves are strongly
induced in the receiving antenna, take the
counter-
measure
described
in Paragraph 3.2.
4.
Do not turn
semifixed
resistors, high frequency transformers, trimmer capacitors, etc.
mounted
on
the
printed
circuit board
unless
absolutely
necessary,
because
they
are all
preadjusted
at the
factory.
5.
If
the
MHz
knob
is set at inadequate
position,
the
receiver is muted.
Therefore, the
MHz
knob must be
set
correctlv.
6. This
receiver
has low-voltage-operable
ICs and transistors. Be sure to turn
off both
power
switohes
when connecting
or removing the
printed
circuit board and cables to external
equipments.
1. If
the
AUX
mode
is
selected at
a
condition
where
additional
crystal
is
not
provided,
the
receiver operates
actually
in the DSB mode even though the AUX
mode
is indicated on the
front
panel.
8. The
illumination
of LEDS
(Receiving
frequency,
Mode
and Bandwidth
indicators) is
gradually
reduced as
turning
f-DlMMEil
knob
counterclockwise.
Finally they
fade
out
completely
at the minimum
position.
().
When
the ntode
is
except
SSB
and Frequency
Display
shows
the tiequency
between
000.0kH2
and 001.4kH2,
MHz
LED
displays the
frequerlcy
obtained by adding
lMHz to
the
display
of MHz Selector
Switch.
In
such
a case, Receiver
receives the frequency dis-
played
by LED.
10. When
the rnode
is except SSB,
the upper
limit of
the received
fiequency
to
be
displayed
is
3000
| .4kHz
and
the
lower limit
is
001
.5
kHz.
-l-
