JTS CS-8 User Manual

8
LAST UNIT
Master volume control is assigned to
the last unit in the whole installation.
CS-8
CS-8
Mixer
LINE IN
D8P-1
CS-8
D8P-1
CS-8
D8P-1
Setting for each microphone input
LINE OUT

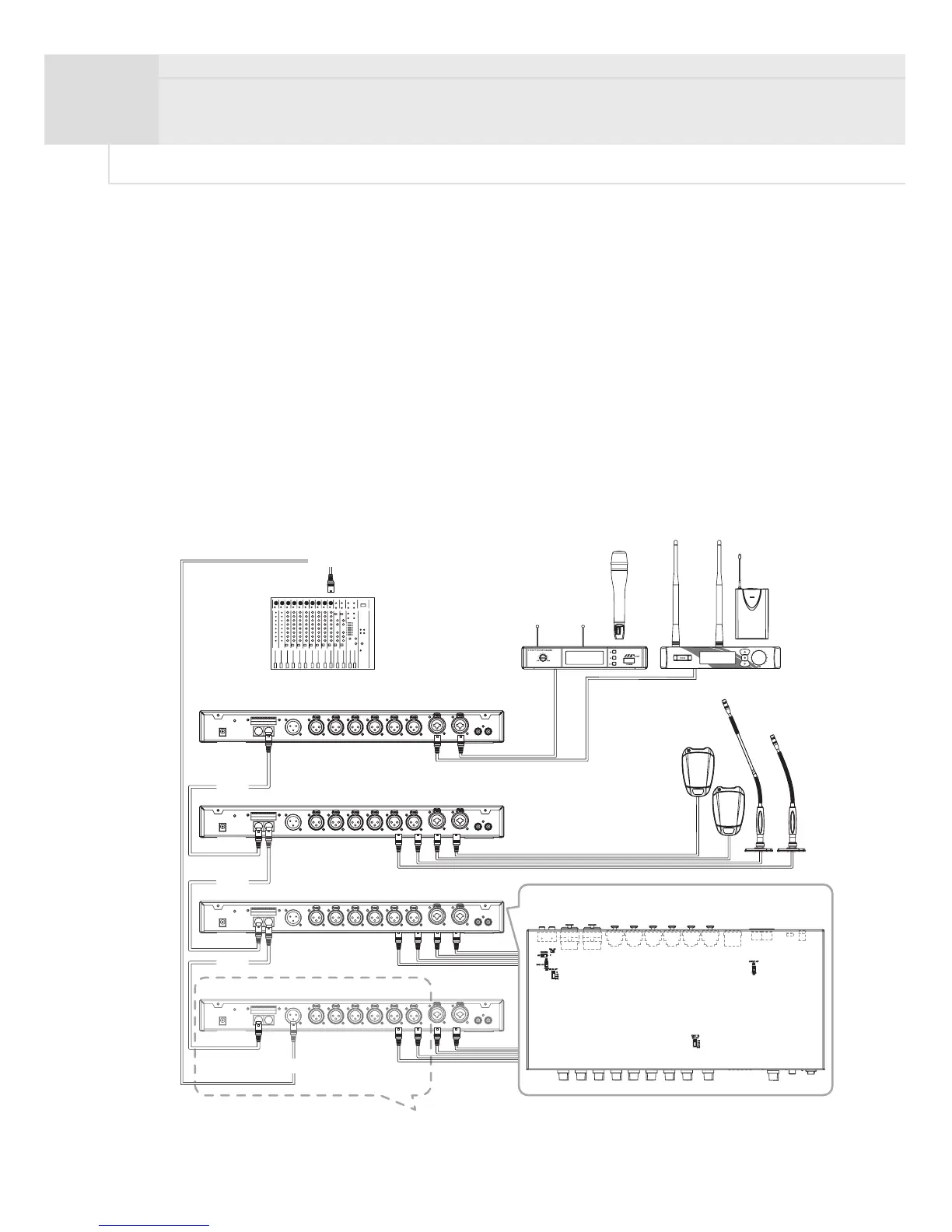

Figure 2
Internal Setup
Daisy-chaining mixer
When more than eight microphones are used, the system could daisy-chain multiple CS-8
Automatic Mixers together through “Link In/Out” on the rear panel. Connect the #1 Mixer’s “Link
Out” to the #2 Mixer’s “Link In” with “D8P-1” extension cable. Repeat it to connect enough Mixers
for installation.
The last unit in the chain contains audio from all preceding mixers, and the combined output is
then taken from the last mixer in the chain. (Figure 2)
Notice 1: Because the “Lockout information” is passed through “Link In/Out”, the whole chain
system has only one microphone will stay on.
Notice 2: One or more mixers could be changed to “BYPASS” mode without affecting automatic
functions in other mixers in the entire daisy-chain system.
Rack Mounting
Combined with “RM-12” rack mount kit, the CS-8 Automatic Mixer could be mounted in a 1U rack
space.

JTS CS-8 Specifications

Power

power supply	18VDC, 1A
power consumption	18 Watts
fuse	1A 250V

Electrical Characteristics

voltage output	+4VDC±0.3V
phantom power	+48V
control voltage	+12V

Impedance

input impedance (mic)	4.7KΩ
input impedance (line)	20KΩ
output impedance (mic)	300Ω
output impedance (line)	200Ω

Audio Performance

maximum output level (line)	>+17 dB
maximum gain	≥70dB
frequency response	35~20, 000 Hz
thd% input (1 KHz -50dB)	<0.06%
signal-to-noise ratio	>70dB

Weight and Dimensions

weight	2.25kg
dimensions (length)	420.6mm
dimensions (width)	198.5mm
dimensions (height)	44.2mm
