JTS CS-8 User Manual

3
VOLTAGE OUTPUT
GND
MIX OUT MIC 8MIC 7 MIC 6MIC 5 MIC 4MIC 3
MIC 2MIC 1
R L
LINK IN LINK OUT
DC 18V
RoHS
conform
1 A
Important Caution

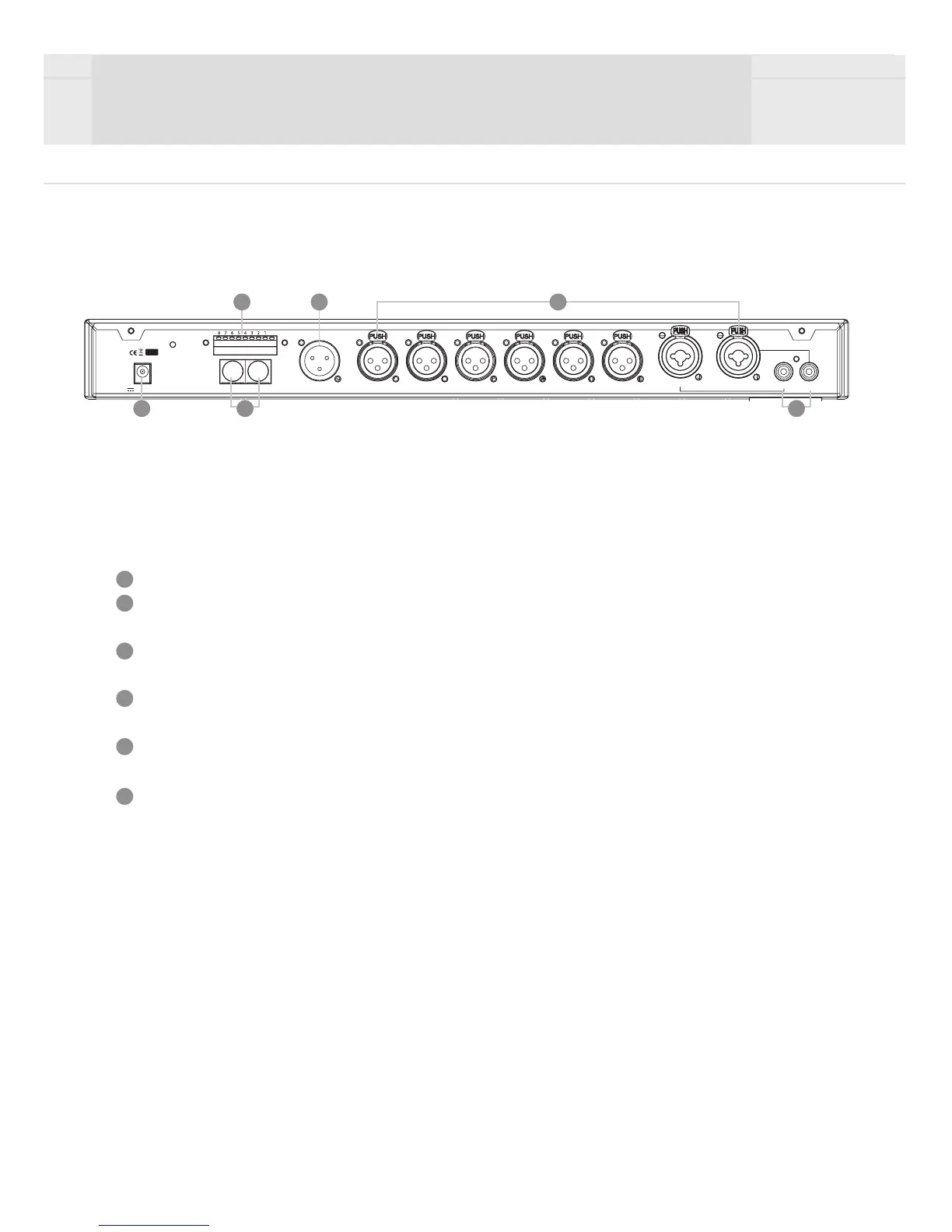

Rear panel
Power supply: Require 18VDC, 1 A
Link In/Out: For the daisy-chain multiple mixer system, the signal will pass through “Link In/
Out” connectors.
Voltage output: Provide 0 or +4VDC (active high) to trigger external device for other
applications.
MIX output: Preset balanced XLR line-level output. Can be switched to mic-level output via
internal switch. (Page 7)
MIC. inputs: Balanced XLR microphone input for dynamic or condenser microphones. Can
be switched to line-level input via internal switches. (Page 7) Preset phantom power on.
RCA INPUT (17): When use RCA input please switch internal SW33 and SW34 to RCA
position. Then the MIC1 and MIC 2 connecters will be bypassed.
12 13
14 15 16
12
13
14
15
16
17
17

JTS CS-8 Specifications

Power

power supply	18VDC, 1A
power consumption	18 Watts
fuse	1A 250V

Electrical Characteristics

voltage output	+4VDC±0.3V
phantom power	+48V
control voltage	+12V

Impedance

input impedance (mic)	4.7KΩ
input impedance (line)	20KΩ
output impedance (mic)	300Ω
output impedance (line)	200Ω

Audio Performance

maximum output level (line)	>+17 dB
maximum gain	≥70dB
frequency response	35~20, 000 Hz
thd% input (1 KHz -50dB)	<0.06%
signal-to-noise ratio	>70dB

Weight and Dimensions

weight	2.25kg
dimensions (length)	420.6mm
dimensions (width)	198.5mm
dimensions (height)	44.2mm
