JTS CS-8 User Manual

9
Specications
Voltage Output
When a microphone channel turn “on”, as indicated by a “Active channel LED indicator” on the
front panel, the channel’s associated “Voltage Output” goes “high” (+4 VDC). This signal can be
used by different applications, such as select video cameras.
Power Supply: 18VDC, 1A
Power Consumption: 18 Watts (include Adapter)
Fuse: 1A 250V
Impedance
Input
Type: XLR
Mic:4.7KΩ
Line:20KΩ
Output
Type: XLR
Mic:300Ω
Line:200Ω
Maximum Output Level
Line: >+17 dB
MaximumGain:≥70dB
Internal Controls
Mic/Line attenuation: -50dB
Phantom Power: +48V
MIC IN ATT: 0dB, -10dB, -20dB
MIC Attenuation: -10dB, -15dB, -20dB
Output Attenuation: -50dB
Frequency Response: 35~20,000 Hz
THD% Input(1 KHz -50dB): <0.06%
Signal-To-Noise Ratio: >70dB
Voltage Output: : +4VDC±0.3V
Weight: 2.25kg
Dimensions: 420.6mm(L)*198.5mm(W)
*44.2mm(H)

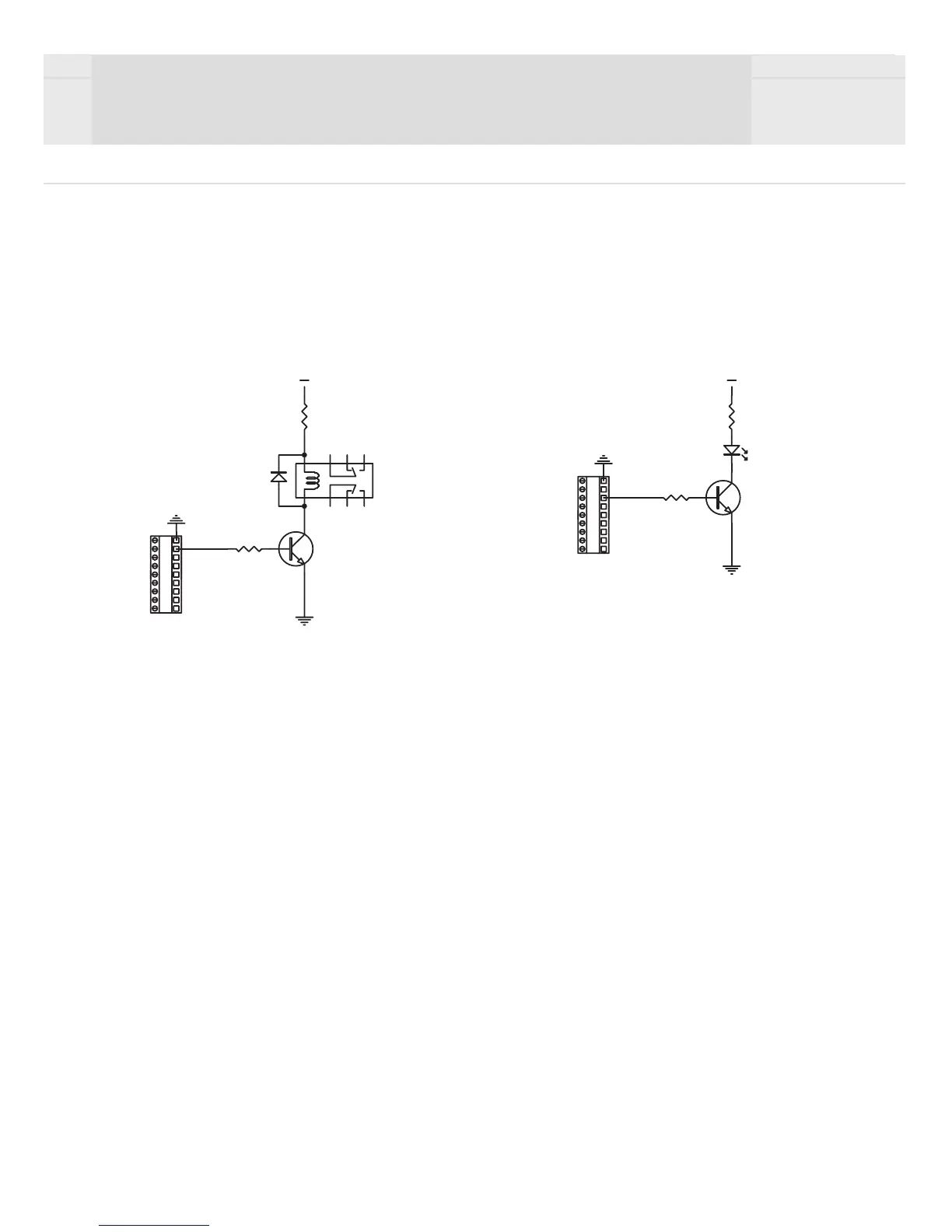

C1815
1
2
3
4
15K
51Ω 1/4W
+12V
1N4148
RELAY:VDC +12V
1.2K
15K
C1815
LED
+5V
GND
5
6
7
8
Control Voltage
Control Voltage
1
2
3
4
GND
5
6
7
8
Driving One device
(Larger power)
Driving One LED

JTS CS-8 Specifications

Power

power supply	18VDC, 1A
power consumption	18 Watts
fuse	1A 250V

Electrical Characteristics

voltage output	+4VDC±0.3V
phantom power	+48V
control voltage	+12V

Impedance

input impedance (mic)	4.7KΩ
input impedance (line)	20KΩ
output impedance (mic)	300Ω
output impedance (line)	200Ω

Audio Performance

maximum output level (line)	>+17 dB
maximum gain	≥70dB
frequency response	35~20, 000 Hz
thd% input (1 KHz -50dB)	<0.06%
signal-to-noise ratio	>70dB

Weight and Dimensions

weight	2.25kg
dimensions (length)	420.6mm
dimensions (width)	198.5mm
dimensions (height)	44.2mm
