JTS CS-8 - Internal Setup and Configuration

6

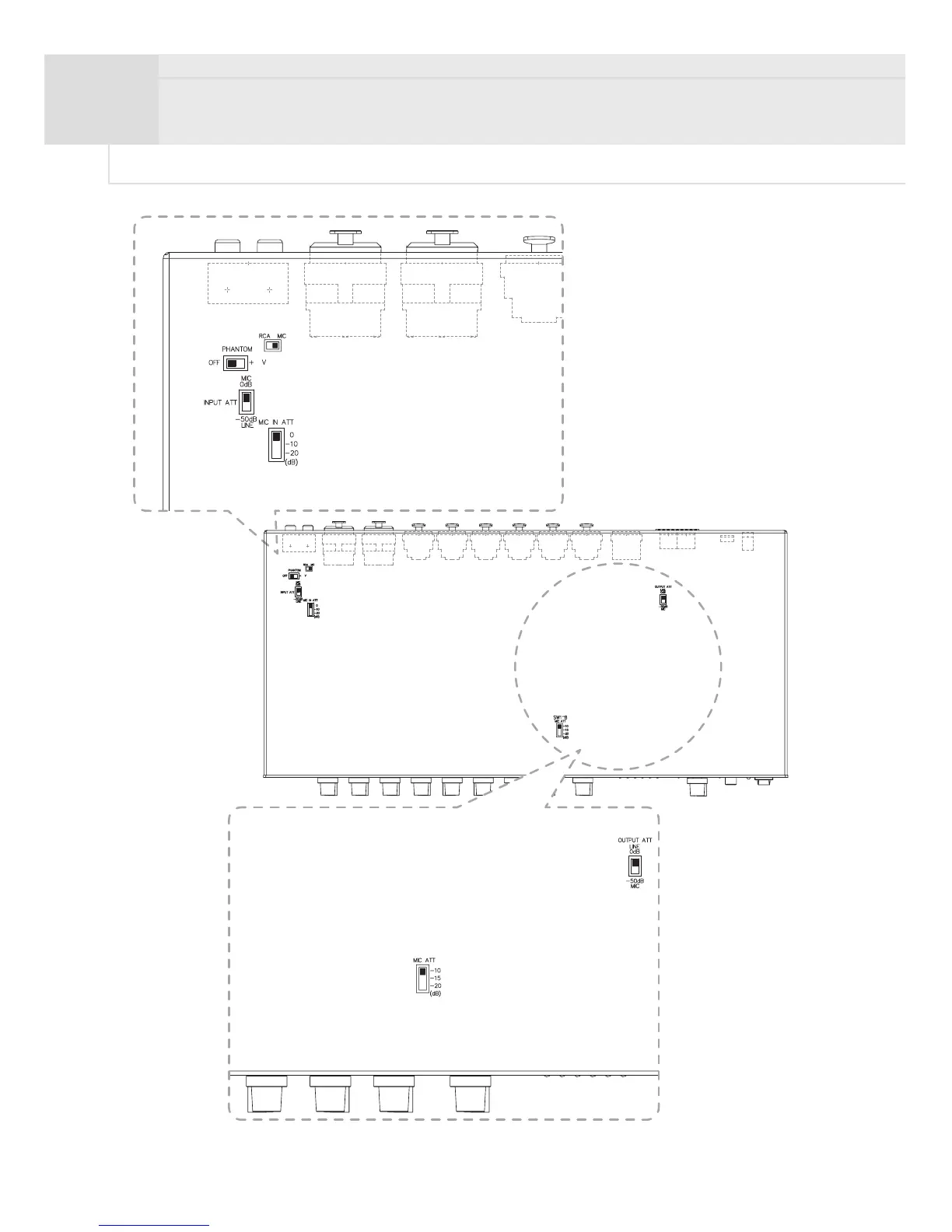

Figure 1
<< SWITCH CONDENSER OR DYNAMIC MIC
<< RCA OR MIC
SW 33~34
SW 9~16
SW 1~8
SW 17~24
<< MIC IN ATT (0dB,-10dB,-20dB)
<< SWITCH FOR MIC / LINE
<< ATTENUATION
(-10dB,-15dB,-20dB)
SWITCH FOR MIC / LINE >>
48
48
SW 35
SW 25~32
