JTS RU-992 - UHF PLL Body-Pack Transmitter

14

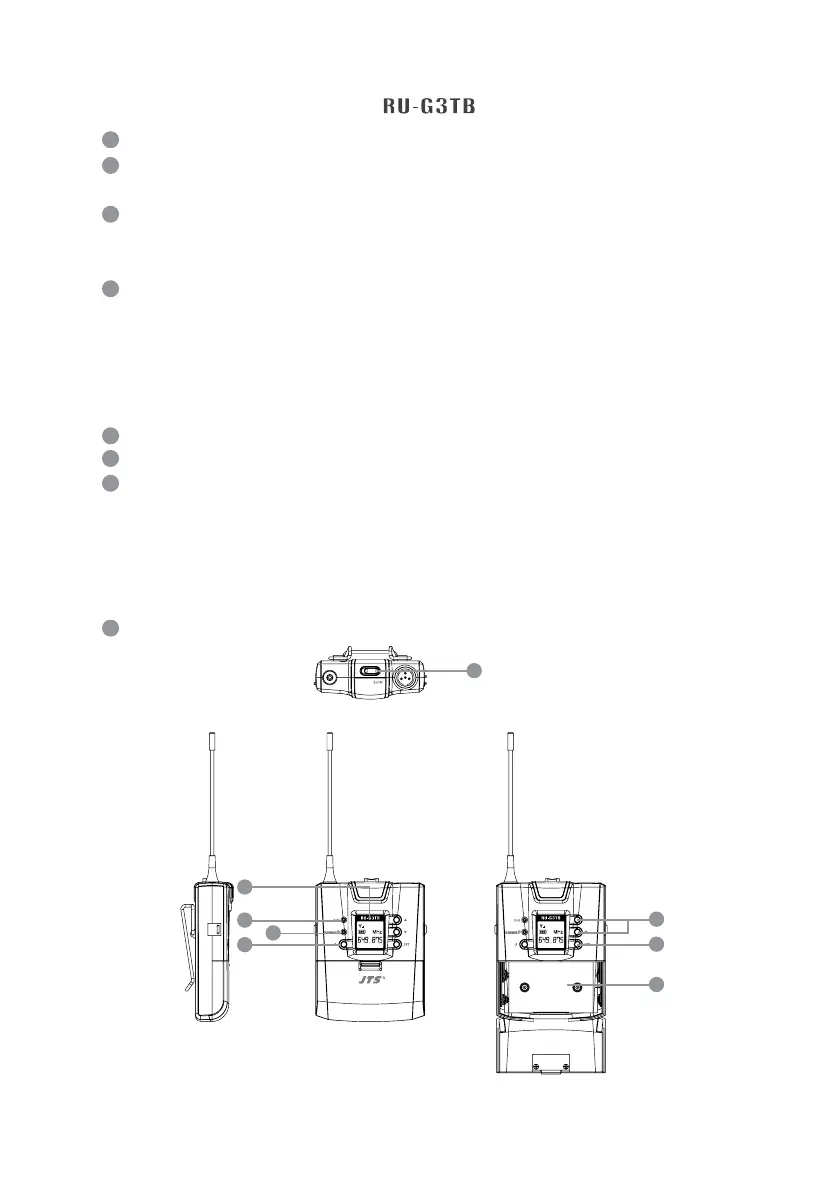

4-5 UHF PLL body-pack transmitter //
LCD display
Ultrasonic receiving unit: it receives the pairing signals from the
ultrasonic transmission unit at the receiver end.
REMOSET indicator：
Blue：Pairing successful
Flashing blue：Date receiving error
Power:
(1)On: push the power button
O: push and hold the power button for 2 seconds till the display
shows “Power O.”
(2)Exit Setting Menu: when in the Setting Menu, push the power button
to return to the main screen.
▲/▼: these are used with “SET” to change the parameter settings.
SET: to set and save
Mute Switch / LED Indicator :
(1)Show green light when power is on.
(2)Show red light when battery level is too low.
(3)Flash red light when switch to ''MUTE'' function to mute the transmitter.
(4)Flash red light and green light when mute function is on and battery
level is too low.
Battery tray
