JUKI 812K - Page 13

From the library of: Superior Sewing Machine & Supply LLC
28C
HS 528
88
95
HA 1 03B
HS 106
107
108
110-2
110-3
110-4
AS 137
AS 137A
AS 137KA
376A
HA1348
HA1349
22560B
22743
35871A
80250
80250A
80250B
80665KD
80667
80668
80676A
80676AC-2
80676AC-3
80676AC-4
81256
81256A
81266KA

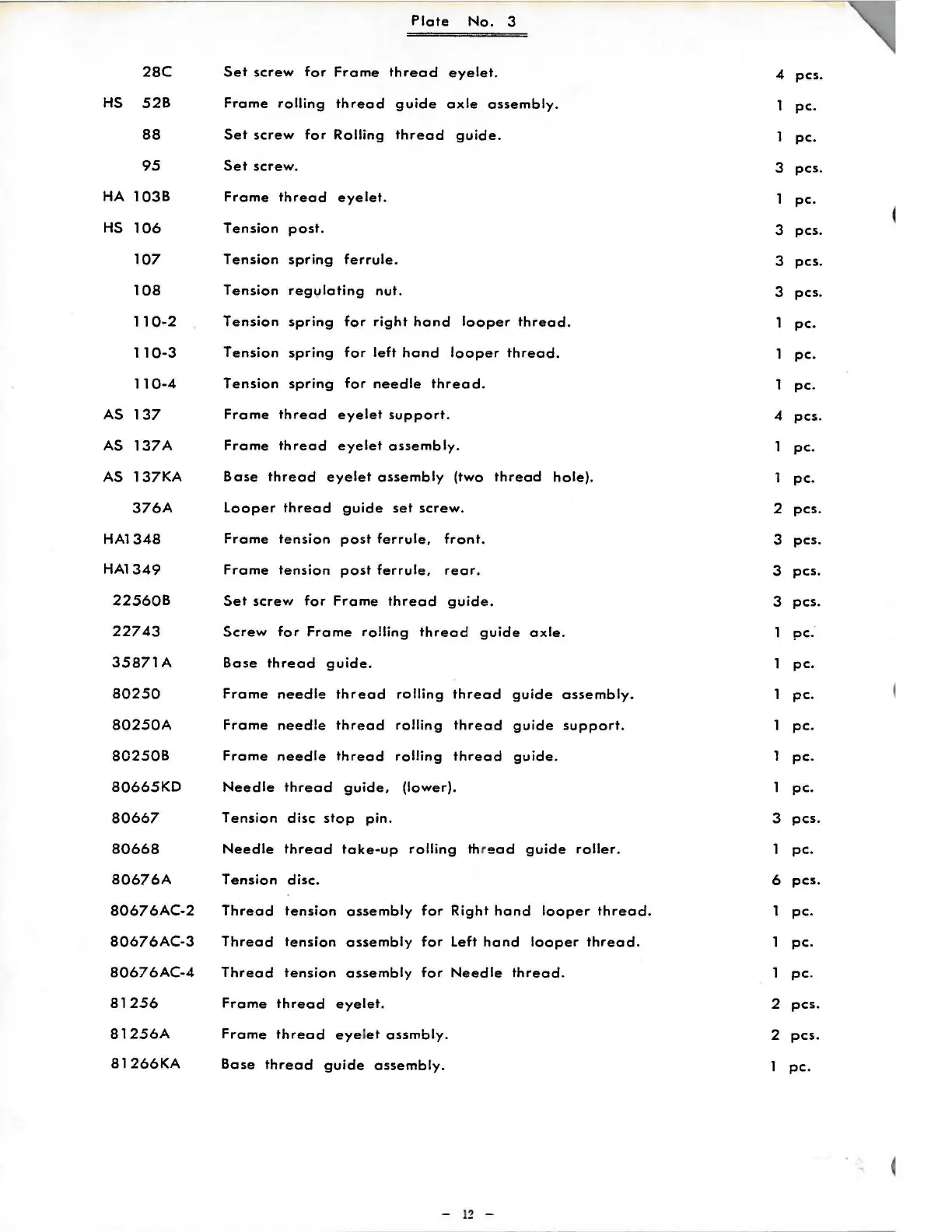

Plate No. 3
Set screw far Frame thread eyelet.
Frame rolling thread guide axle assembly.
Set screw far Rolling thread guide.
Set screw.
Frame thread eyelet.
Tension past.
Tension spring ferrule.
Tension reg1,1lating nut.
Tension spring far right hand looper thread.
T ensian spring far left hand looper thread.
Tension spring far needle thread.
Frame thread eyelet support.
Frame thread eyelet assembly.
Base thread eyelet assembly (twa thread hale).
Looper thread guide set screw.
Frame tension past ferrule, front.
Frame tension past ferrule, rear.
Set screw far Frame thread guide.
Screw far Frame rolling thread guide axle.
Base thread guide.
Frame needle thread rolling thread guide assembly.
Frame needle thread rolling thread guide support.
Frame needle thread rolling thread guide.
Needle thread guide, (lower).
Tension disc stop pin.
Needle thread take-up rolling th r ead guide roller.
Tension disc.
Thread tension assembly for Right hand looper thread.
Thread tension assembly for Left hand looper thread.
Thread tension assembly for Needle thread.
Frame thread eyelet.
Frame thread eye l et assmbly.
Base thread guide assembly.
- 12 -
4 pes.
pc.
pc.
3 pes.
pc.
3 pes.
3 pes.
3 pes.
pc.
pc.
pc.
4 pes.
pc.
pc.
2 pes.
3 pes.
3 pes.
3 pes.
pc.
pc.
pc.
pc.
pc.
pc.
3 pes.
pc.
6 pes.
pc.
pc.
pc .
2 pes.
2 pes.
pc.
--------- --- - -- - -- -- - ------------ - --- - --- ~----------- -
