JUKI 812K - Page 15

From the library of: Superior Sewing Machine & Supply LLC
HA 54A
HA 56
HA 58C
HA 580
HA 58F
81
88
90
91
95
HS 1000
BP 108
HA 212K
21111
22526
22565C
22729
29066L
29774KO
51134V
80046
80246
80615
80617
80636A
80643
80644
80650
80656
80659
80669
80673A
806738
80676
81203KA
81203KA-1
81203KA-2
81224K
81225

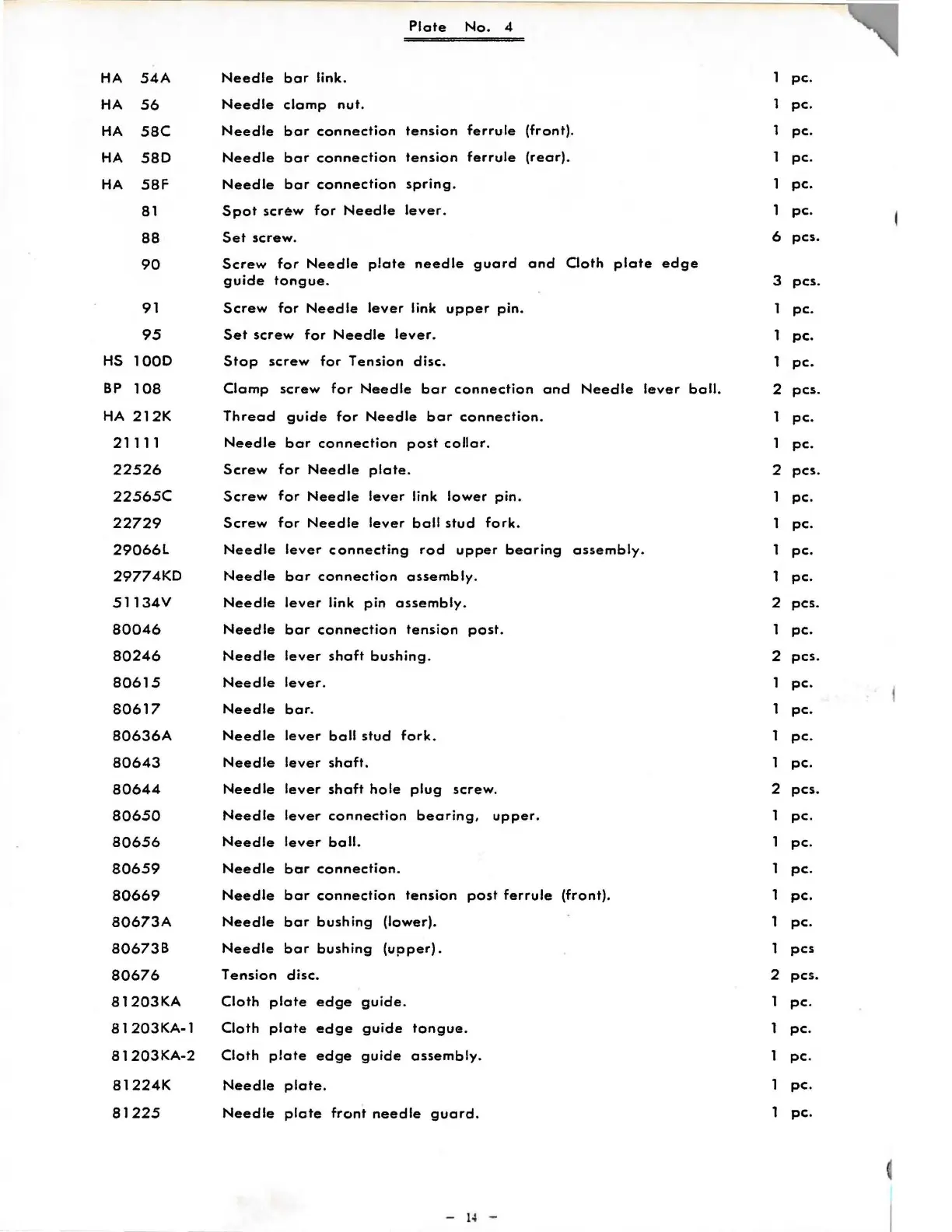

Plate No. 4
Needle bar link.
Needle clamp nut.
Needle bar connection tension ferrule (front).
Needle bar connection tension ferrule (rear).
Needle bar connection spring.
Spat screw for Needle lever.
Set screw.
Screw for Needle plate needle guard and Cloth plate edge
guide tongue.
Screw for Needle lever link upper pin.
Set screw for Needle lever.
Stop screw for Tension disc.
Clamp screw for Needle bar connection and Needle lever ball.
Thread guide for Needle bar connection.
Needle bar connection post collar.
Screw for Needle plate.
Screw far Needle lever link lower pin.
Screw for Needle lever ball stud fork.
Needle lever connecting rod upper bearing assembly.
Needle bar connection assembly.
Needle lever link pin assembly.
Needle bar connection tension post.
Needle lever shaft bushing.
Needle lever.
Needle bar.
Needle lever ball stud fork.
Needle lever shaft.
Needle lever shaft hole plug screw.
Needle lever connection bearing, upper.
Needle lever ball.
Needle bar connection.
Needle bar connection tension post ferrule (front).
Needle bar bushing (lower).
Needle bar bushing (upper).
Tension disc.
Cloth plate edge guide.
Cloth plate edge guide tongue.
Cloth plate edge guide assembly.
Needle plate.
Needle plate front needle guard.
