64Y
HA 65E
95
98
258
11639H
22513
22870
357338
80220C
80267
80632
80660
80661
80662
80662A
80663
80664
806668
806668C
80667
812200
81220KA
81297KA

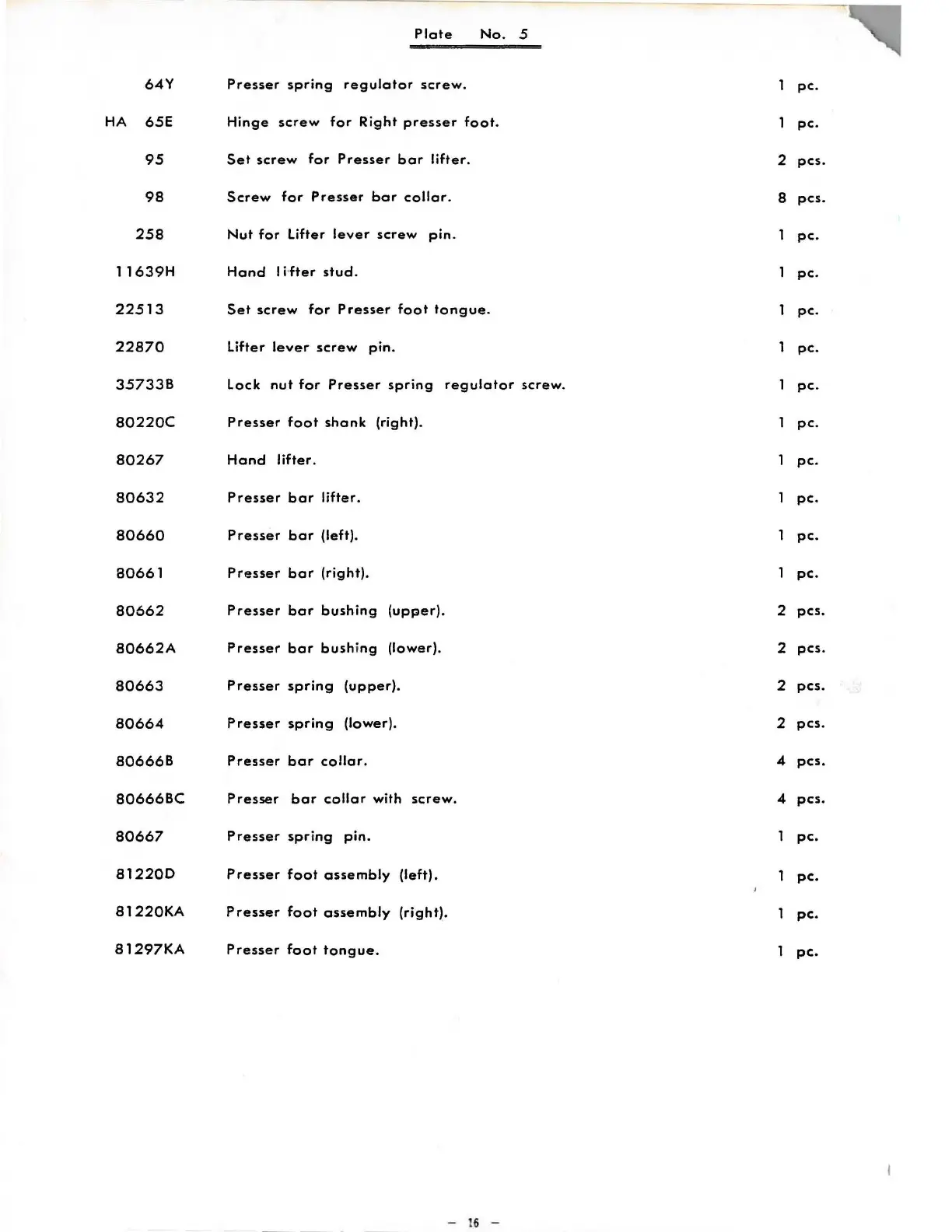

Plate
Na. 5
Presser spring regulator screw.
Hinge screw far Right presser faat.
Set screw for Presser bar lifter.
Screw far Presser bar collar.
Nut for lifter lever screw pin.
Hand I iHer stud .
Set screw for Presser foot tongue.
lifter lever screw pin.
Lock nut far Presser spring regulator screw.
Presser foot shank (right).
Hand lifter.
Presser bar lifter.
Presser bar (left).
Presser bar (right).
Presser bar bushing (upper).
Presser bar bush i ng (lower).
Presser spring (upper).
Presser spring (lower).
Presser bar collar.
Presser bar collar with screw.
Presser spring pin.
Presser foot assembly (left).
Presser faat assembly (right).
Presser faat tongue.
- 16 -
pc.
pc.
2 pes.
8 pes .
pc.
pc.
pc.
pc.
pc .
pc.
pc .
pc .
pc.
pc .
2 pes.
2 pes.
2 pes.
2 pes.
4 pes.
4 pes.
pe .
pe.
pe.
pe.
