JUKI DDL-8700-7 Engineer's Manual

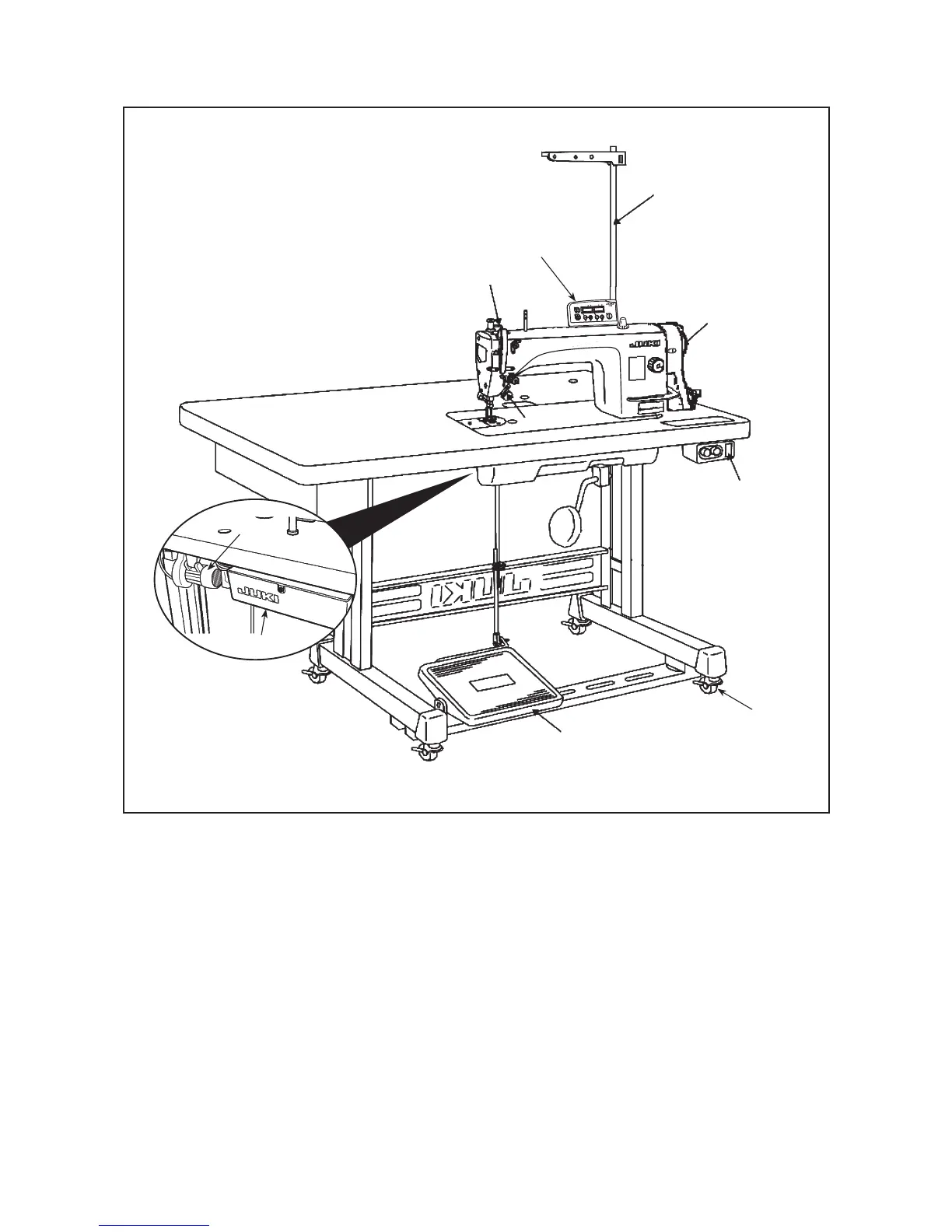

3. NAME OF EACH COMPONENT
/ Power switch
4 Operation panel (CP-18, CP-180)
) Synchronizer
0 L-shaped thread stand
1 PSC box (SC-920)
6 Motor (M 92)
2 Pedal
* One-touch type reverse feed switch
- Wiper
 Adjusting screw for levelling the stand or caster
❿
❶
❾
❹
❸
❼
❽
❺
❻
❷
− 4 −

JUKI DDL-8700-7 Specifications

General

Max Stitch Length	5 mm
Needle Bar Stroke	30.7 mm
Lift of the Presser Foot	By hand: 5.5 mm, By knee: 13 mm
Lubrication	Automatic
Needle	DB×1
Hook	Full rotary hook
Power Requirement	Single-phase 100~120V, 200~240V
Motor	Direct-drive servo motor
Weight	45 kg
