JUKI DSC-246 User Manual

– 12 –
（
DSC-246-7, DSC-246V-7
）
（
DSC-246-7, DSC-246V-7
）
（
DSC-246-7, DSC-246V-7
）

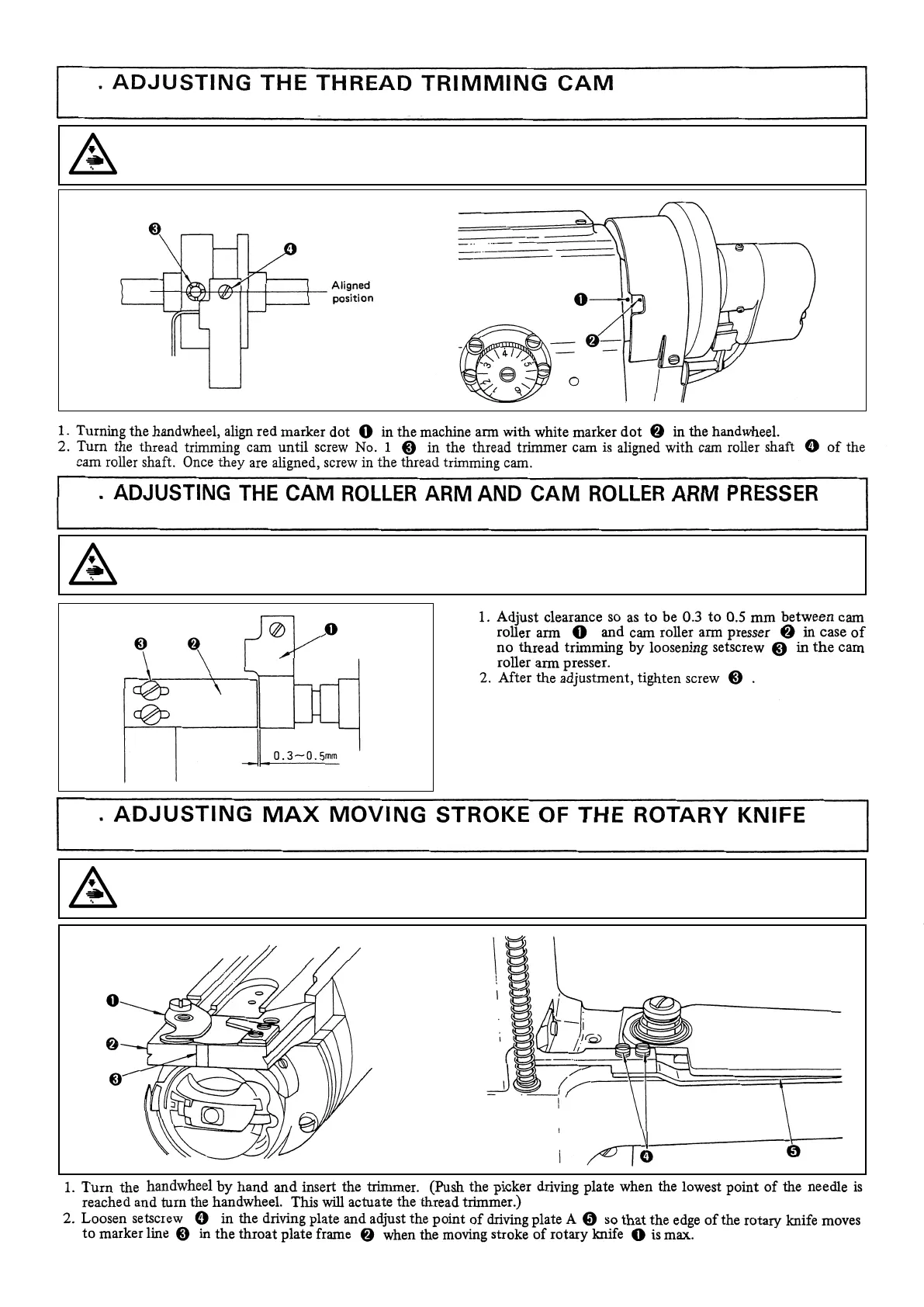

WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the following work
after turning the power off and ascertaining that the motor is at rest.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the following work
after turning the power off and ascertaining that the motor is at rest.
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the following work
after turning the power off and ascertaining that the motor is at rest.
21
22
23
– 1 –
Model DSC-246 DSC-246-7 DSC-246V DSC246V-7
Type of sewing
machine head
Cylinder-bed, 1-needle,
unison-feed lockstitch
machine
Cylinder-bed, 1-needle,
unison-feed lockstitch
machine with an
automatic thread trimmer
Cylinder-bed, 1-needle,
unison-feed lockstitch
machine (horizontal
drop feed)
Cylinder-bed, 1-needle,
unison-feed lockstitch
machine with an
automatic thread trimmer
(horizontal drop feed)
Usage Suited for sewing medium-to heavy weight materials
Sewing speed Max. 2,200 sti/min
Stitch length 0 to 6 mm
Lift of presser
foot
Hand lifter 9 mm
Knee lifter 15 mm
Hand lifter 8 mm
Knee lifter 14 mm
Hand lifter 9 mm
Knee lifter 15 mm
Hand lifter 8 mm
Knee lifter 14 mm
Thread take-
up lever
Slide type thread take-up
Needle bar
stroke
38 mm
Needle to be
used
GROZ-BECKERT 135×17 Nm90 to Nm160 (Standard Nm130)
Needle system #50 to #8
Stitch adjusting
method
Dial
Lubrication
method
By an oiler and an oil wick centralized in face plate
Motor to be
used
400W Electro-stop
motor (4P)
AC servo motor 400W Electro-stop
motor (4P)
AC servo motor
Oil to be used New Defrix Oil No.1
Noise - Equivalent
continuous emission
sound pressure
level (L
pA
) at the
workstation :
A-weighted value of
84.5 dB; (Includes
K
pA
= 2.5 dB);
according to ISO
10821- C.6.2 -ISO
11204 GR2 at 2,200
sti/min.
- Sound power level
(L
WA
) ;
A-weighted value of
92.5 dB; (Includes
K
WA
= 2.5 dB);
according to ISO
10821- C.6.2 -ISO
3744 GR2 at 2,200
sti/min.
- Equivalent
continuous emission
sound pressure
level (L
pA
) at the
workstation :
A-weighted value of
81.0 dB; (Includes
K
pA
= 2.5 dB);
according to ISO
10821- C.6.2 -ISO
11204 GR2 at 2,200
sti/min.
- Sound power level
(L
WA
) ;
A-weighted value of
88.5 dB; (Includes
K
WA
= 2.5 dB);
according to ISO
10821- C.6.2 -ISO
3744 GR2 at 2,200
sti/min.
- Equivalent
continuous emission
sound pressure
level (L
pA
) at the
workstation :
A-weighted value of
77.5 dB; (Includes
K
pA
= 2.5 dB);
according to ISO
10821- C.6.2 -ISO
11204 GR2 at 2,200
sti/min.
- Equivalent
continuous emission
sound pressure
level (L
pA
) at the
workstation :
A-weighted value of
81.0 dB; (Includes
K
pA
= 2.5 dB);
according to ISO
10821- C.6.2 -ISO
11204 GR2 at 2,200
sti/min.
- Sound power level
(L
WA
) ;
A-weighted value of
88.5 dB; (Includes
K
WA
= 2.5 dB);
according to ISO
10821- C.6.2 -ISO
3744 GR2 at 2,200
sti/min.
