JUKI IP-100 - Position of the Needle Bar Connection Guide; Height of the Needle Bar

− 22 −

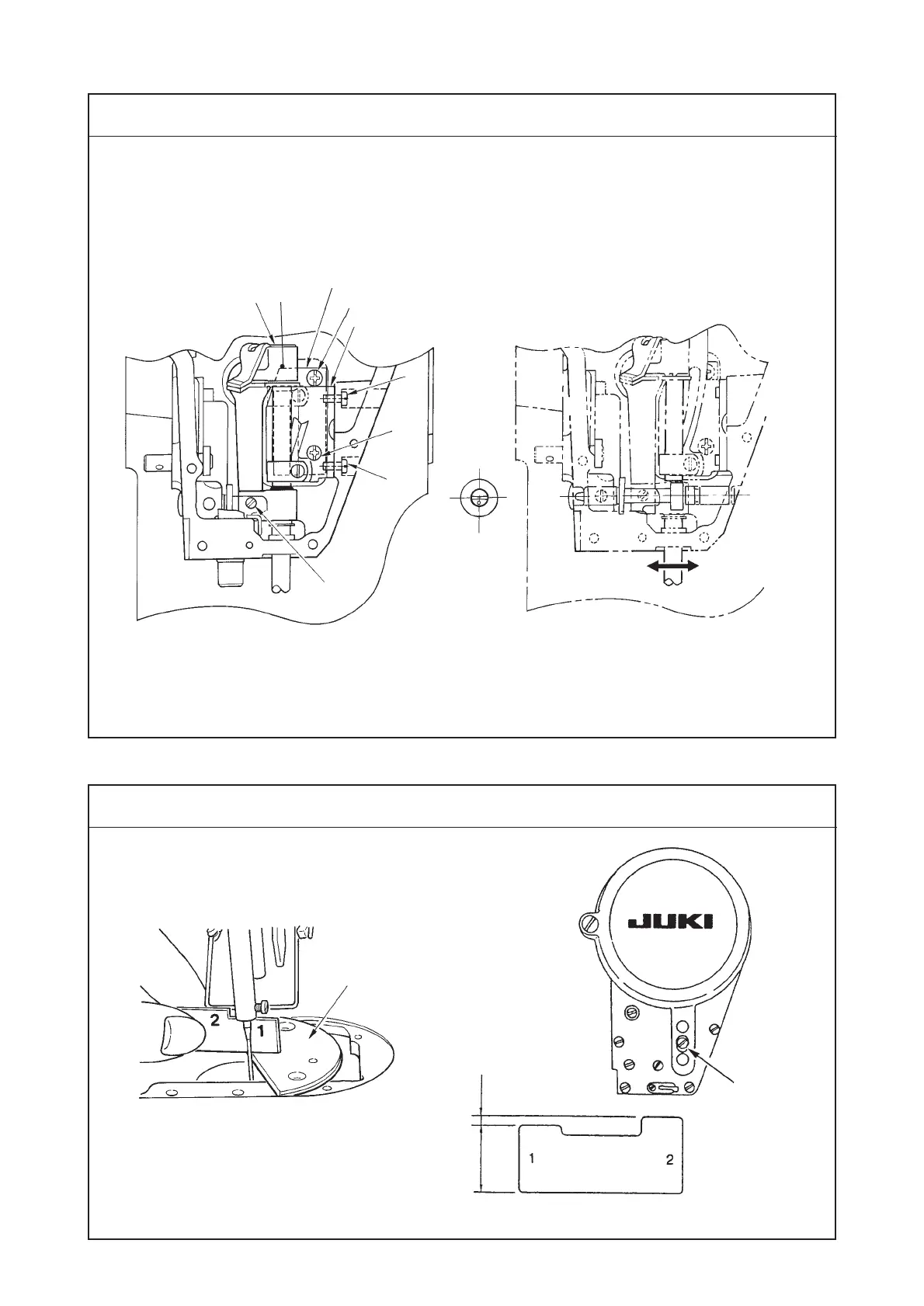

(10) Position of the needle bar connection guide
Standard Adjustment
(11) Height of the needle bar
Standard Adjustment
Conditions : Zigzag width : “0”
Position of needle position changing lever : Center
™ Part No. of engraved indication E
: 22536502
A Dimension : 12.2 mm
B Dimension : 3.4 mm
2
Engraved
indication
Timing gauge
Needle bar
support base
Needle bar
connection guide
Needle bar crank
rod guide
1
2
3
4
5
1
A
B
A
E
