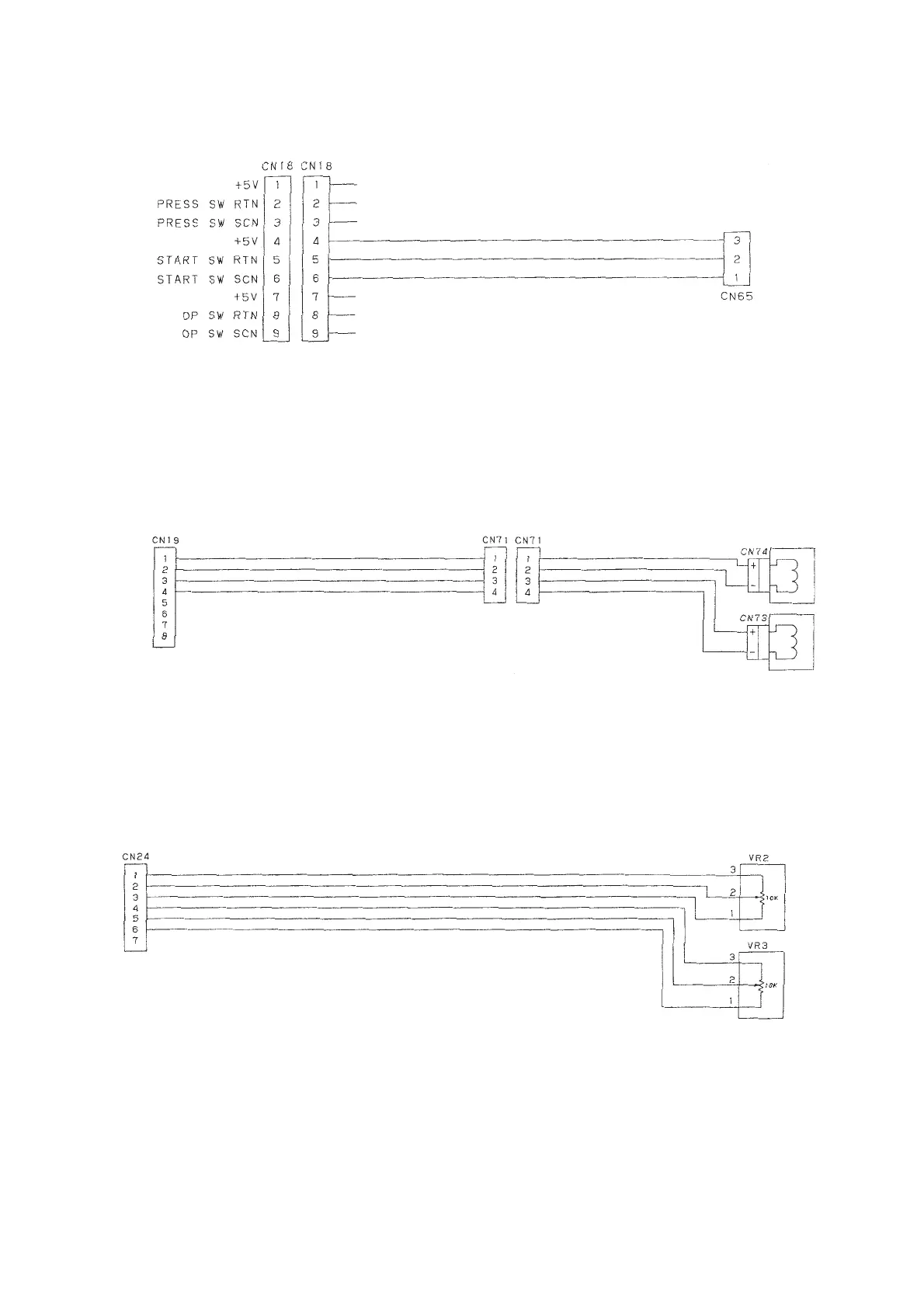

STARTING SWITCH CIRCUIT DIAGRAM
NC
NC
NC
RED
WHITE
BLACK
NC
NC
NC
START
+24V
CLOTH CUTTING KNIFE
+24V
PRESSER LIFTER
+24V
+24V
RED
WHITE
BLACK
GREEN
RED
BLACK
RED
BLACK
CLOTH
CUTTING
KNIFE
PRESSER
LIFTER
+5V
PARALLE
GND
+5V
BAR-TACK
GND
RED
WHITE
BLACK
YELLOW
GREEN
BROWN
PARALLEL
SECTION
BAR-TACKING
SECTION
SOLENOID VALVE CIRCUIT DIAGRAM
THREAD TENSION VR CIRCUIT DIAGRAM
2-PEDAL TYPE
