−22 −

Standard Adjustment

8 ± 0.5 mm

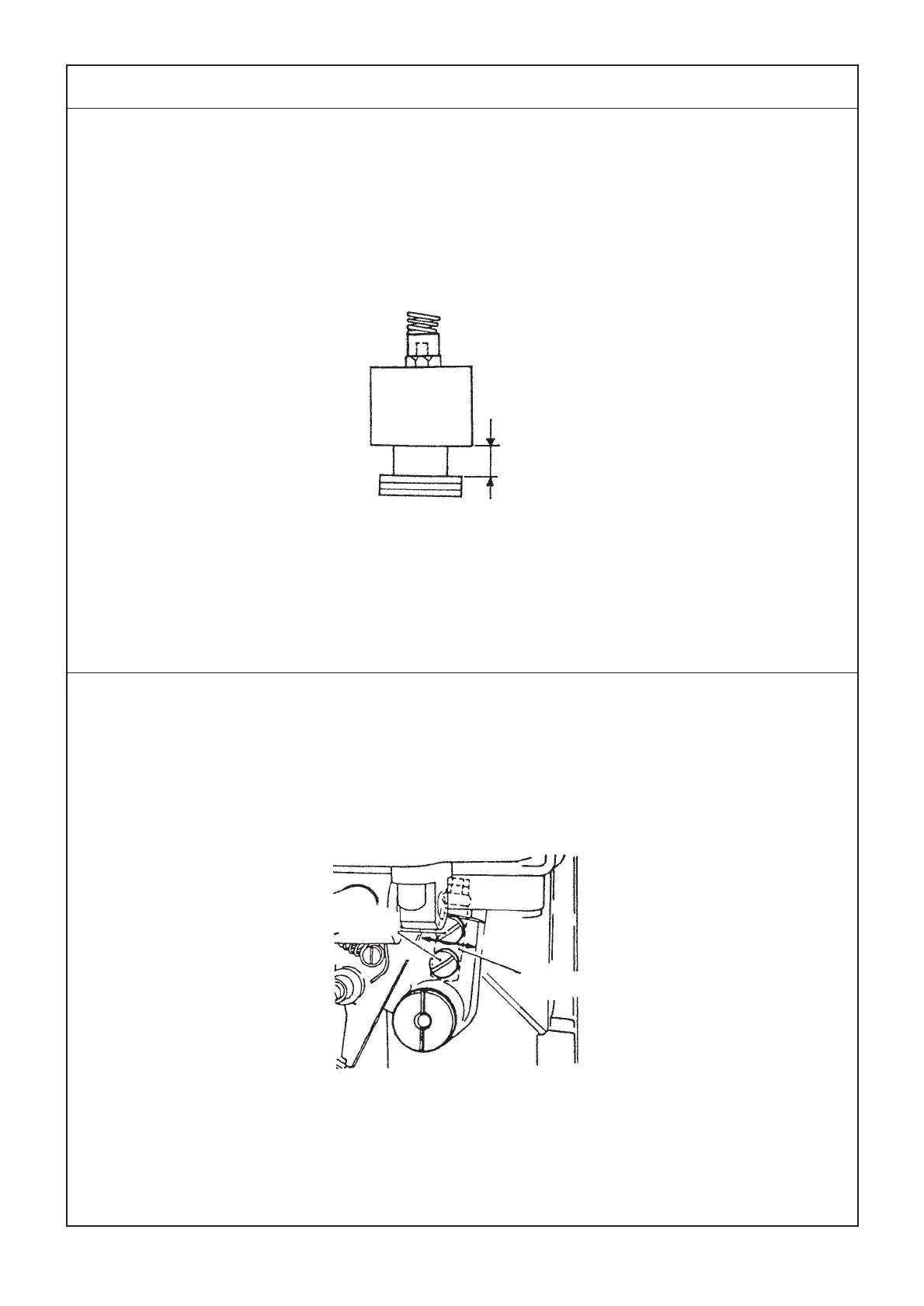

(18) Stroke of the stop-motion solenoid

Stroke of the stop-motion solenoid is 8 ± 0.5 mm. (7.5 to 8.5 mm)

(19) Longitudinal amount of the needle thread trimmer

Longitudinal amount : 4 to 5 mm

Setscrew

Roller shaft

Dec.

Inc.
