−43 −
Adjustment Procedures Results of Improper Adjustment
™ When fixing two setscrews in coupling 7, deoil the setscrews
using a paint thinner and fix them with LOCKTITE 242.
™ Make sure whether there is any play in the main shaft before
stretching the belt.
™ Make sure whether the position of the thread take-up lever is
located in the center of the frame groove.
™ Make sure that the plunger moves up or down when turninh
the main shaft by hand.
™ Take care of the engagement of the coupling.

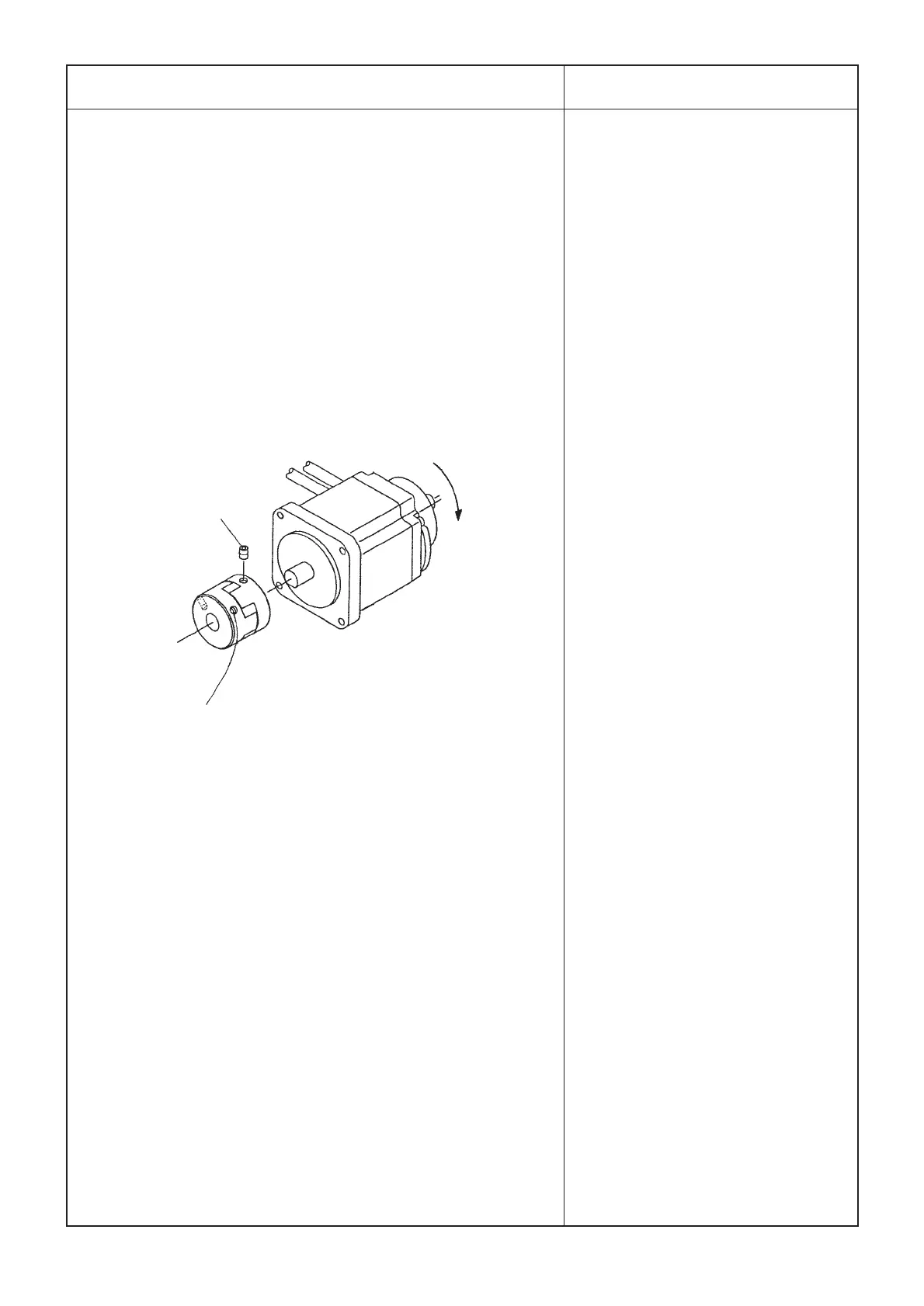

Main motor flat
(setscrew No. 1) position
Direction of rotation
Main shaft flat
(setscrew No. 1) position
™
When drawing out the main shaft from
the front, remove the components
inside the face side plate in advance.
™ The main shaft can be drawn out
from the rear (direction of e) when
drawing out main motor and main
motor installing base and removing
the setscrew in counterweight 1.
To Next Page
