JUKI LS-1340 - Presser Foot Lift Adjustment

−8 −
Standard Adjustment
Standard Adjustment

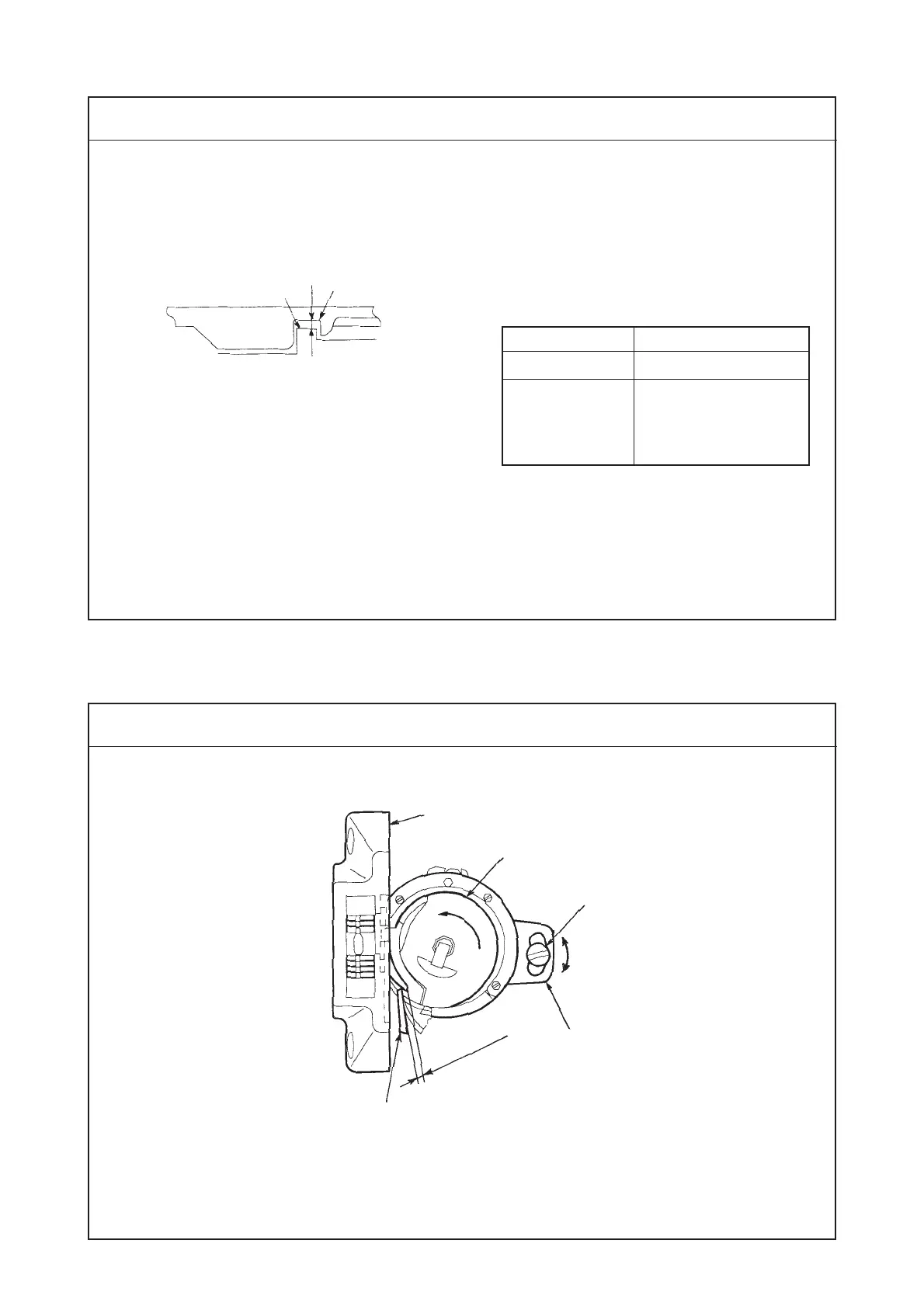

(7) Adjusting the inner hook guide
(6) Height of the hook
Model Dimension A
LS-1340 1.7 to 2.2 mm
LS-1341
LS-1342 1.4 to 2.0 mm
LS-1342-7
1
2
A
Conditions : When the inner hook guide travels to its back end.
: Press the inner hook stopper to the groove in the throat plate.
1
2
3
4
5
0.1 to 0.3 mm
A
B
