– 10 –

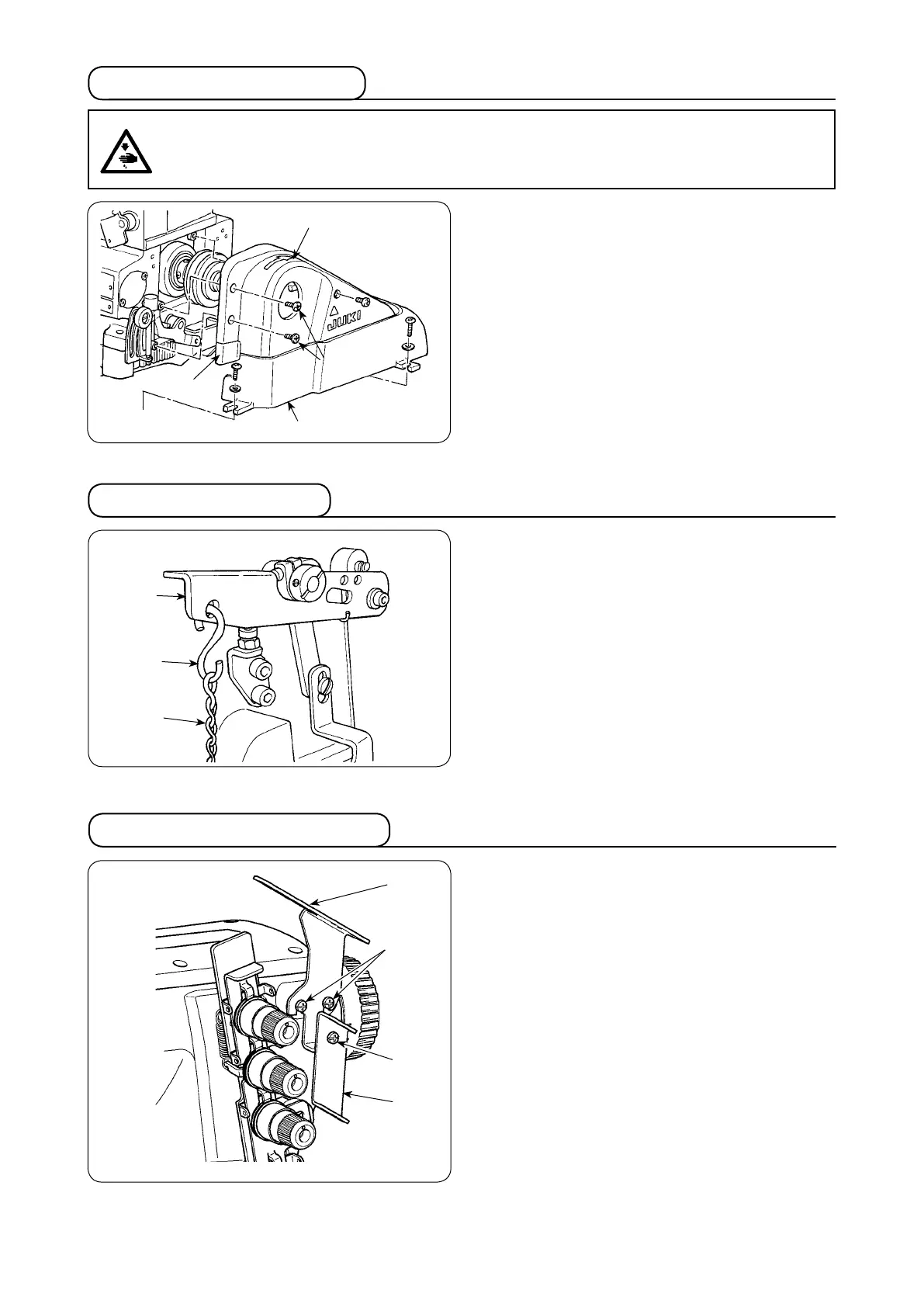

5. Installing the belt cover
Install belt cover
❷
as shown in the illustration.
The setscrews
❶
are the xation screws of belt cover
❷
.
* When installing the belt cover, use the cover with
part
❸
cut out.
* When the semi-submerged type table is used with
the machine, cover
❹
is not used.
6. Installing the chain
1) Hang hook
❷
of chain
❶
to presser bar lifting lever
❸
.
2) Hook the other side of the chain
❶
to the pedal.
WARNING :
Be sure to install the belt cover. If it is not installed, there is a danger of injury since hands or clothes
may be caught in the machine or a danger of damage of the machine since sewing products may be
caught in the machine.
❶
❷
❸
❹
❸
❷
❶
1) Install thread guide No. 1
❶
supplied as accessories
on the machine arm with screws (black, screw shank
length 6 mm)
❷
.
2) Install thread guide
❸
on thread guide No. 1
❶
with
screw (black, screw shank length 6 mm)
❹
.
7. Installing the thread guide
❶
❷
❹
❸
To Next Page
