Threading (4)
MO-644DN/654DEN

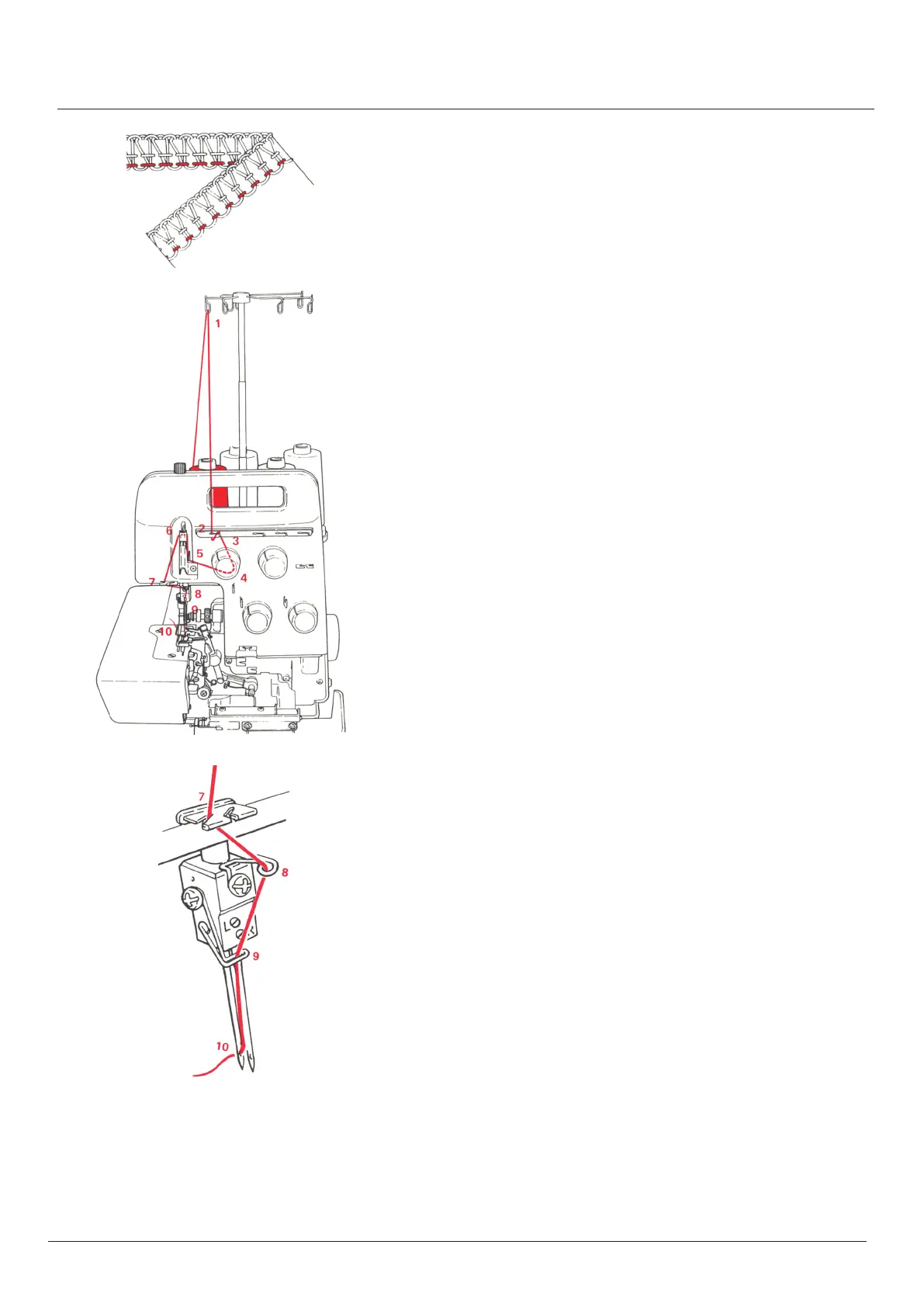

4. Left-hand needle thread (Yellow)
Place the spool on the spool holder pin right under the yellow mark-
ing on the retractable support rod thread guide.
(1) Bring thread up from the spool to the thread guide and take it
through the yellow thread guide.
(2,3) Thread the thread guide.
(4) Thread the thread tension dial.
(5) Thread the thread guide.
(6) Lay the thread in the notch on the thread take-up lever.
(7,8,9) Thread the thread guides.
(10) Thread the left-hand needle. Pull about 10 cm of the thread out
from the needle eye.
When threading is completed, lower the upper knife and close the
looper cover and cloth plate.
21
