– 18 –

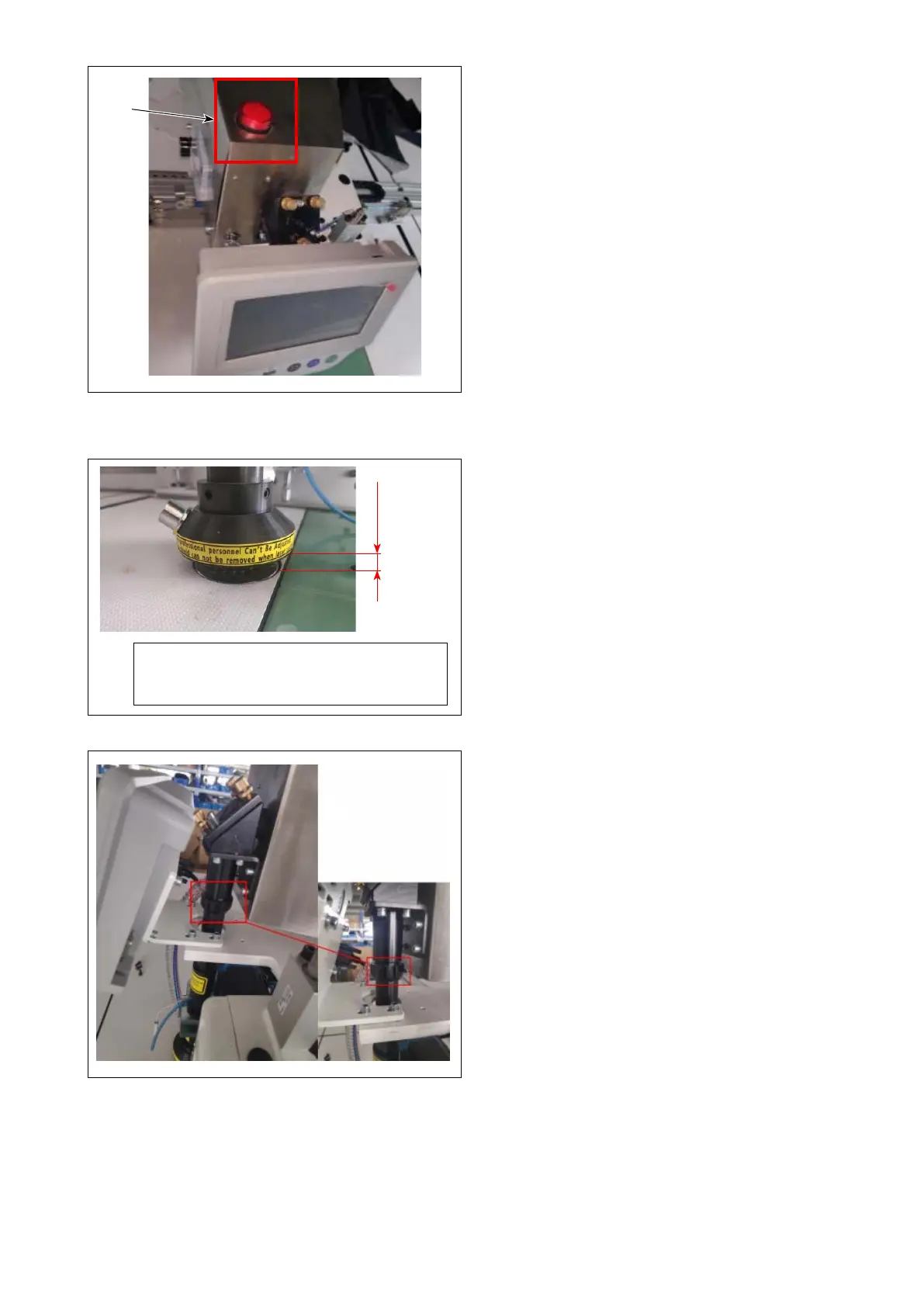

2) While laser operation pilot lamp ❷ located
above the head is in the ON state, the laser
receives the irradiation command. When it is
in the OFF state, the laser does not receive
the command. When the pilot lamp lights up,
the laser equipment is in the operation state or
in the stand-by state for irradiation.
❷
5-6-6. Operation pilot lamp
1) When the laser tube is lifted to its upper po-
sition, there is a distance of 18 mm between
the lowermost point of the laser head and the
table surface. When the laser tube is pushed
down to its lower position, the aforementioned
distance is reduced to 5 to 8 mm. The highest
position of the suction cover must be posi-
tioned 8 mm or lower than the pattern while
the laser is in operation.
5 to 8mm
The distance between the cover and the table
becomes 8 mm or less when the pattern is
pushed down while the laser is in operation.
2) Loosen the connection at the upper part of the
laser tube, and adjust the height of the laser
tube according to the material thickness.
To Next Page
