5-6. Using the laser
5-6-1. Electric control port for the laser for the regular use
1. Electric control port for the laser irradiation: OUT4
2. Electric control port for downward-direction operation of the laser head: OUT6
5-6-2. Reduction in the laser cutting range in comparison with the sewing range of the standard
model of sewing machine
PS-800-8045 : Reduction in the laser cutting range in the X direction : 153.5mm
Reduction in the laser cutting range in the Y direction : 23.5mm
PS-800-12080 : Reduction in the laser cutting range in the X direction : 153.5mm
Reduction in the laser cutting range in the Y direction : 23.5mm
PS-800-13085 : Reduction in the laser cutting range in the X direction : 153.5mm
Reduction in the laser cutting range in the Y direction : 23.5mm
5-6-3. Weight of the finished laser product
PS-800-8045 : Weight of the finished laser product : 355kg
PS-800-12080 : Weight of the finished laser product : 713kg
PS-800-13085 : Weight of the finished laser product : 558kg
5-6-4. Power consumption of the laser
PS-800-8045 : Standard : 500VA
Laser : 1350VA
Rotary knife : 750VA
PS-800-12080 : Standard : 470VA
Laser : 1320VA
Rotary knife : 720VA
PS-800-13085 : Standard : 640VA
Laser : 1490VA
Rotary knife : 890VA
5-6-5. Operation pilot lamp

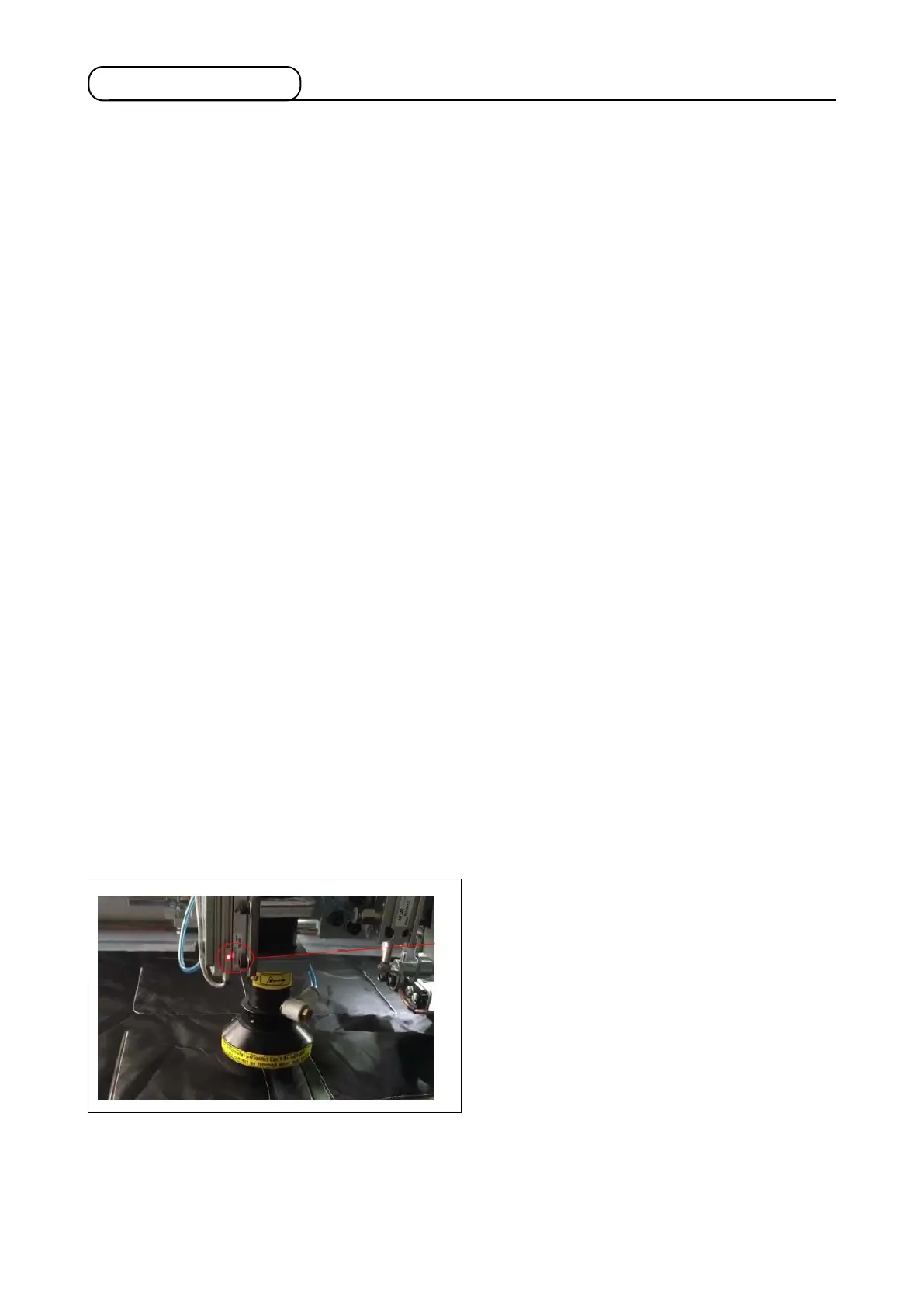

1) The laser irradiation is enabled only when sen-
sor lamp ❶ lights up. When the sensor lamp
goes out, the laser irradiation is disabled.
