5) Click "Move Frame" ❺ .
6) Click "Head Offset" ❼ ".

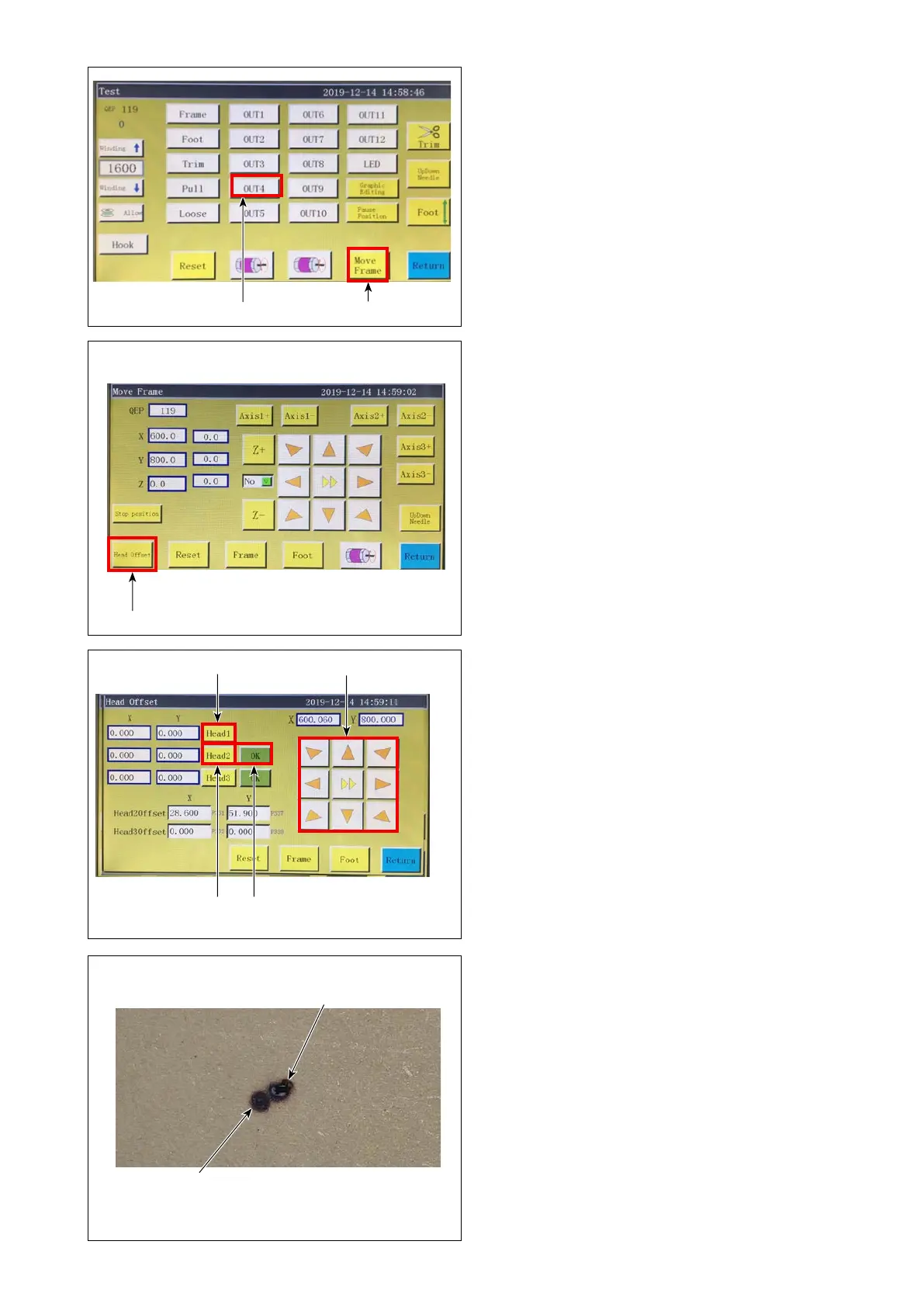

Fig. 2
Fig. 3
7) The values displayed beside the "Head 1" are
changed by clicking "Head 1" ❽ .
8) Press button ❾ on the screen, as shown in
Fig. 4, to move the head 1 up and down and
to the right and left until the needle-penetrat-
ed point of the paper is aligned with the laser
irradiation point. When you press "OUT4" ❻
as shown in Fig. 3, the paper is irradiated with
the light from the laser. Check to make sure
that the laser irradiation point is aligned with
the needle-penetrated point of the paper.
If the laser irradiation point is not aligned with
the needle-penetrated point of the paper, ad-
just the position of the head 1 with the arrow
buttons (up, down, right, left) ❾ on the screen
as shown in Fig. 4 so that the aforementioned
two points are overlapped. Press the "Head
2". Then, press the "Confirm". (Rough image
of the aforementioned alignment adjustment is
as shown in Fig. 5.)
Fig. 4
❾
Fig. 5
Second time: Laser irradiation point is aligned
with the needle-penetrated point of the paper
First time: Laser irradiation point is not aligned
with the needle-penetrated point of the paper
❺
❼
❽
