– 7 –

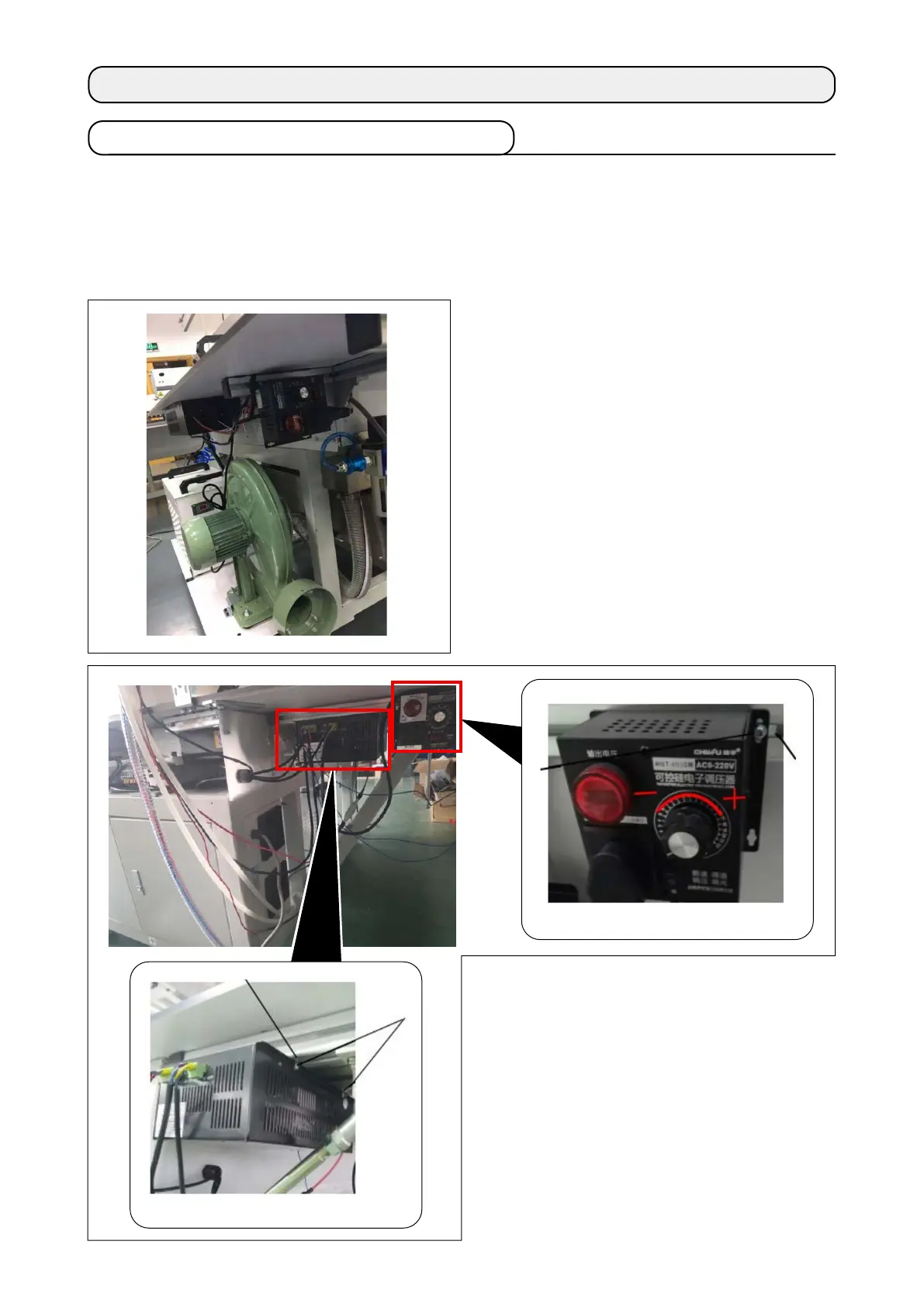

4-1. Installation of the laser after unpacking
4.
INSTALLATION
Laser power supply manufacturer : JINAN ZHENYU ELECTRONIC CO.,LTD
Type: MYJG100W
Alternating current input voltage : 220V±10% Frequency : 50Hz
Maximum output voltage : 38KV Maximum current : 38mA
For the PS-8045 model, the laser power supply
and the thyristor type electronic voltage regulator
should not be removed. (Refer to the figure on the
left for their locations.)
For the PS-800-12080 and 13085 models:
1) Securing the laser power supply
To secure the laser power supply, align screws
❶ (Fig. 1) with the tapped holes of the slider
nuts (Fig. 1) and tighten the two screws on the
right and left of the laser power supply.
2) To secure the thyristor type electronic voltage
regulator (Fig. 2), align screw ❸ (Fig. 2) with
the tapped hole of slider nut ❹ (Fig. 2) and
tighten the screw.
Fig. 1
Fig. 2
❷
❹
❸
❶
To Next Page
