– 15 –
5-5-1. Adjusting the laser reference
Adjust the laser reference following the below-stat-
ed steps of procedure. This procedure also ap-
plies to the PS-800-8045, PS-800-12080 and PS-
800-13085.

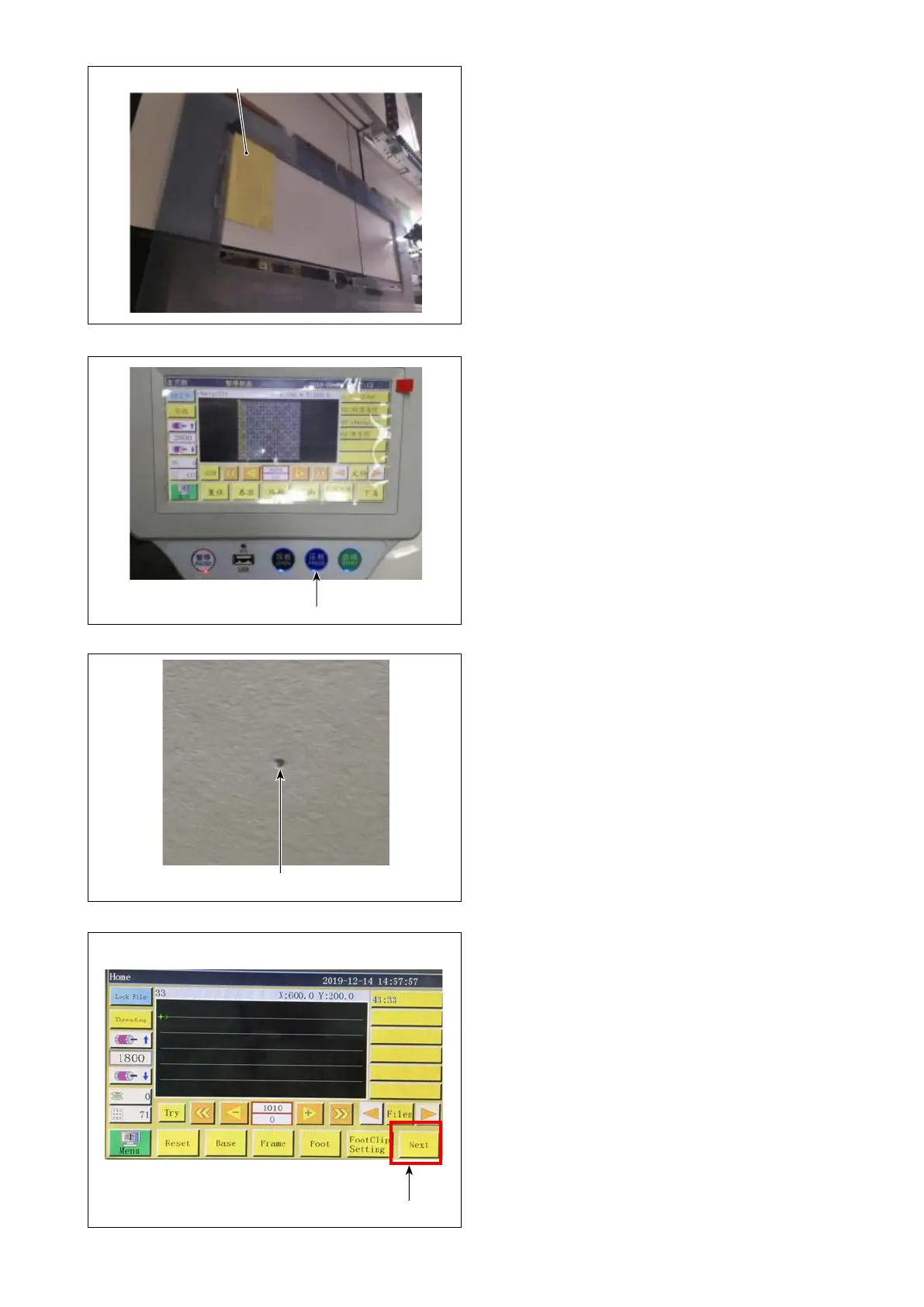

1) Place a piece of paper ❶ at the upper left cor-
ner of the pattern.
❶
❷
2) Aligning the pattern with guide pin, adjust the
position of the paper in the X direction. Then,
click "PRESS" ❷ located under the display.
3) Turn the pulley by hand to allow the needle to
penetrate into the paper at one point ❸ .
❸
4 Click "Next" ❹ on the electronic control main
screen.
❹
Fig. 1
To Next Page
