26
–

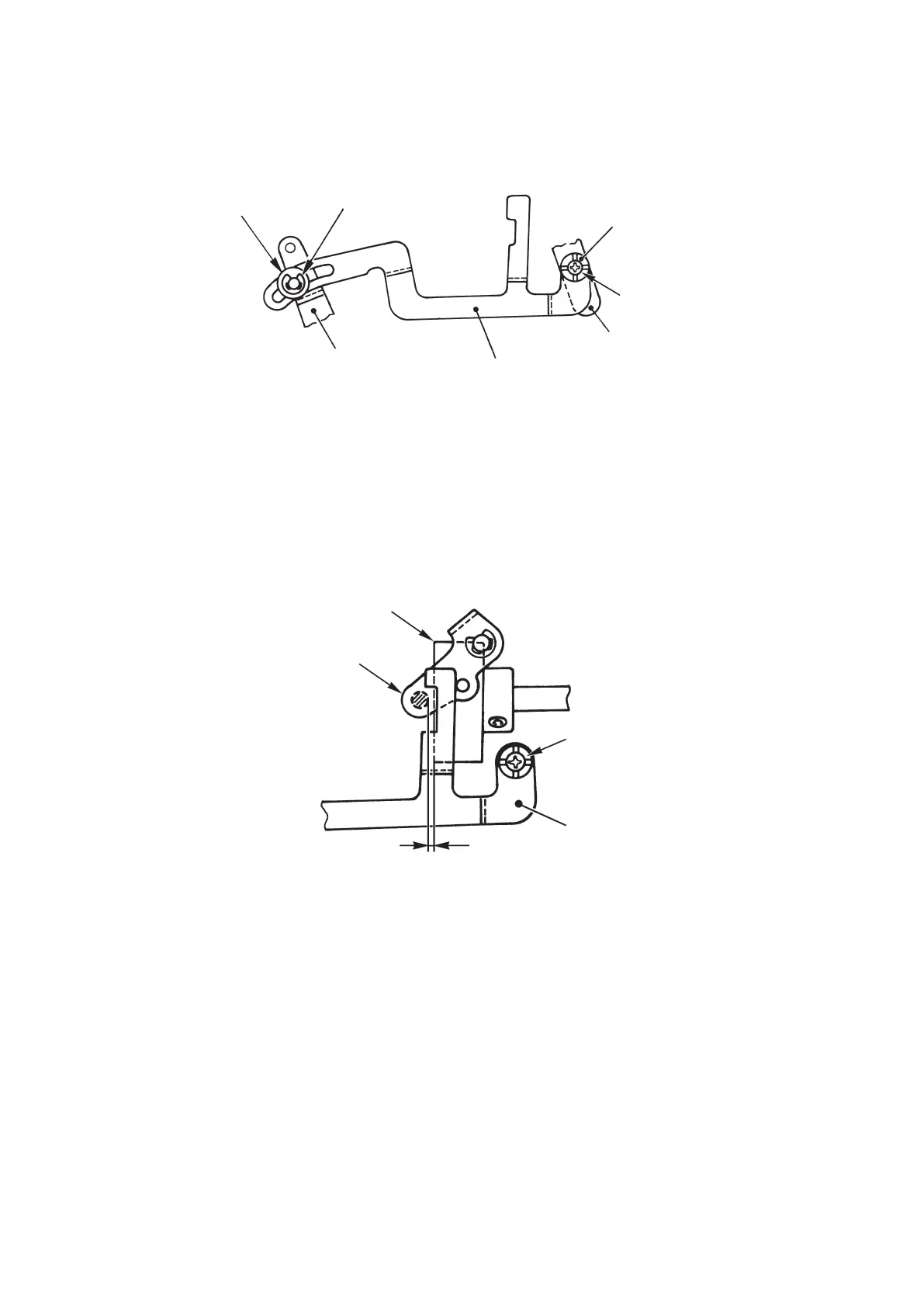

3-5 Adjustment of eccentric shaft of thread trimmer solenoid link A
○ Fix
❶
thread trimmer solenoid link A with
❷
thread trimmer clutch plate collar,
❸
thread trimmer clutch plate
collar setscrew,
❹
thread trimmer auxiliary link washer and
❺
thread trimmer auxiliary link stopper E-ring.
3-6 Adjustment of thread trimmer clutch plate collar
○ After assembling
❶
thread trimmer solenoid link A, perform adjustment of eccentricity with
❷
thread trimmer
clutch plate collar (adjustment of clearance between roller holding cam and link arm support plate) and ad-
just clearance to 1 to 3 mm.
❷
Thread trimmer clutch plate collar
Link arm support plate
❶
Thread trimmer solenoid link A
Roller holding cam
1 to 3 mm
❷
Thread trimmer clutch plate
collar A2435033000
Looper link arm asm. A1727D250A0A
❶
Thread trimmer solenoid link A
❹
Thread trimmer auxiliary
link washer A31099DC000
❺
Thread trimmer auxiliary link
stopper E-ring RE0400000K0
Thread trimmer auxiliary link asm.
A2464D250A0
❸
Thread trimmer clutch plate
collar setscrew
To Next Page
