Julabo FT402 - Immersion Probe; Sensor Connection - Pt100

Preparations
24
5.2. Immersion probe / Sensor connection - Pt100
Caution:
Avoid touching the immersion probe if it is frosted.
DANGER OF INJURY. Use gloves.
Switch the unit on only if the probe is immersed into the bath fluid.
Pt100
The immersion coolers are provided with a Pt100 sensor 200x6 mm dia.,
stainless steel - Order No. 8 981 003

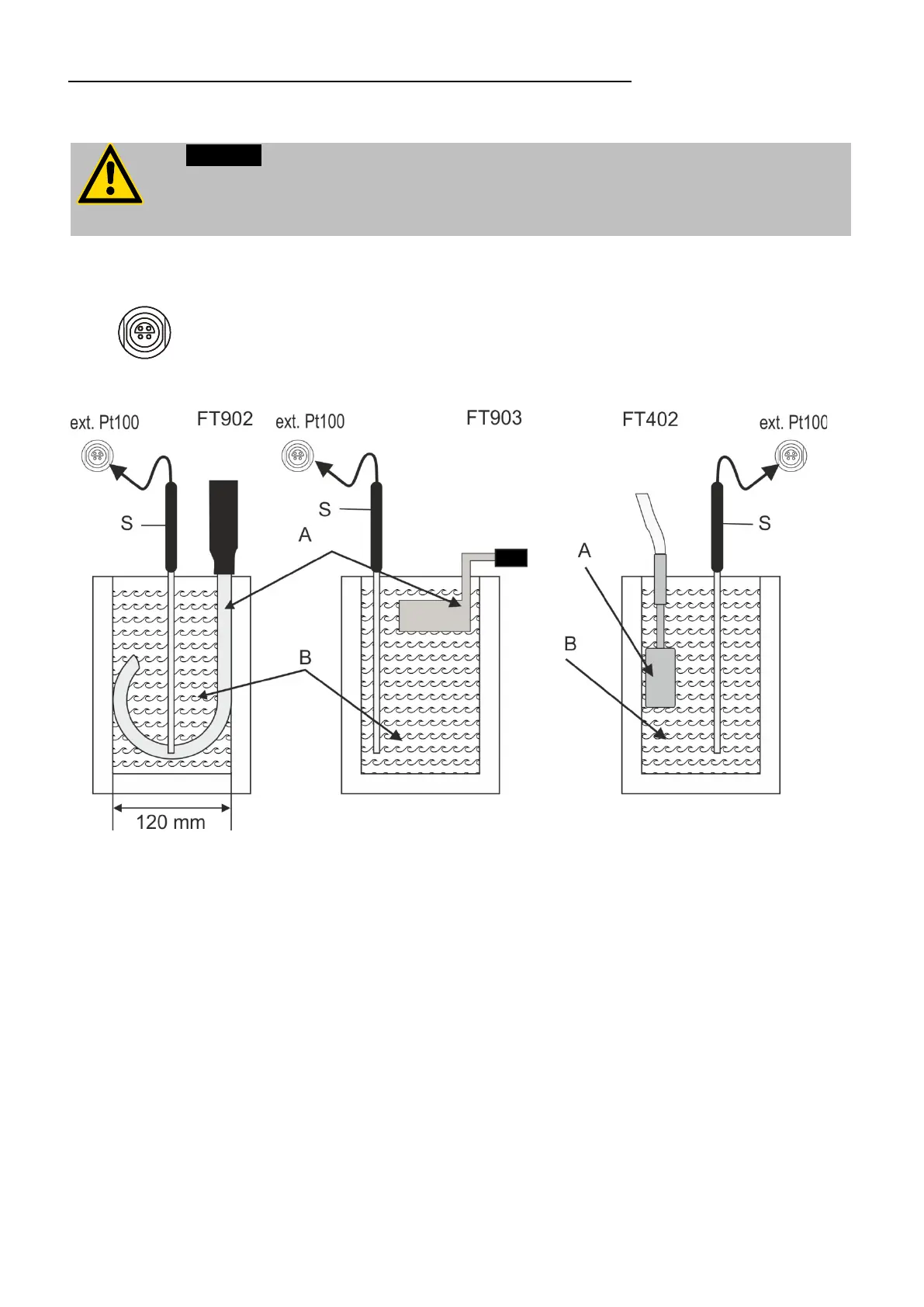

• Connect the Pt100 sensor to the connector (Pt100) .
• To prevent the immersion probe (A) from icing, it should be completely
immersed into the bath liquid (B).
Important:
 Place the external sensor (S) into the bath medium and securely fix the
sensor.
 FT902: The diameter of the bent probe should not be less than
120 mm.
Accessories: Order No. Description
8 981 005 Pt100 sensor 200x6 mm dia., glass, 1.5 m cable
8 981 010 Pt100 Fühler 300x6 mm dia., stainless steel, 1.5 m cable
8 970 400 Clamp for cooler probe FT402
