12 Retrofitting of cards
82

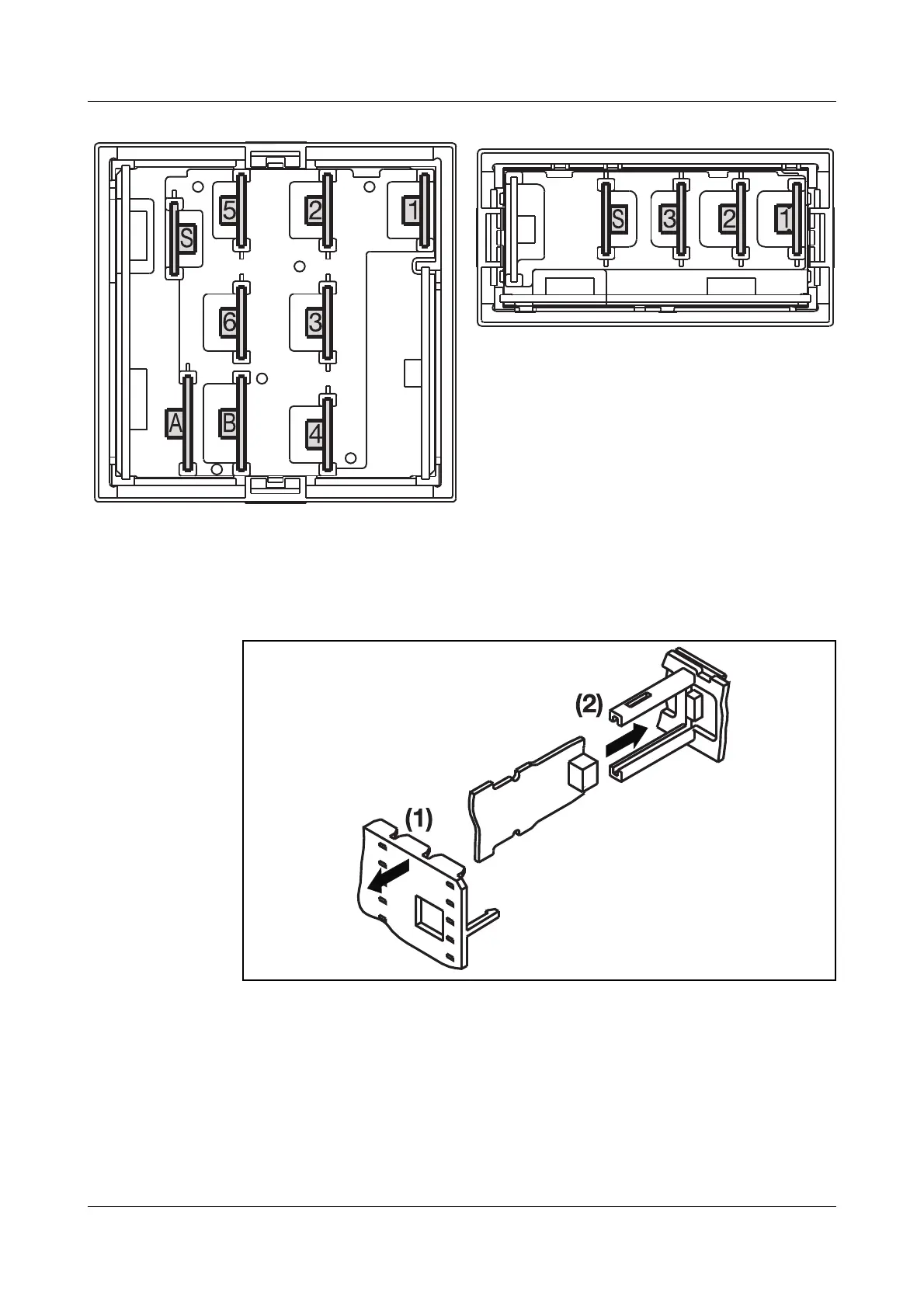

Inserting the
card
h Pull off the guide plate (1)
h Insert card into the guide until the projections on the card snap into the
notches provided (2)
Inserting the
controller
chassis
h Fit on the guide plate
h Push the controller chassis into the case until the lugs (underneath the
ribbed surfaces) snap into place.
