KNX room controller LS TOUCH
31.05.20226 / 60024026400
Scrolling through pages

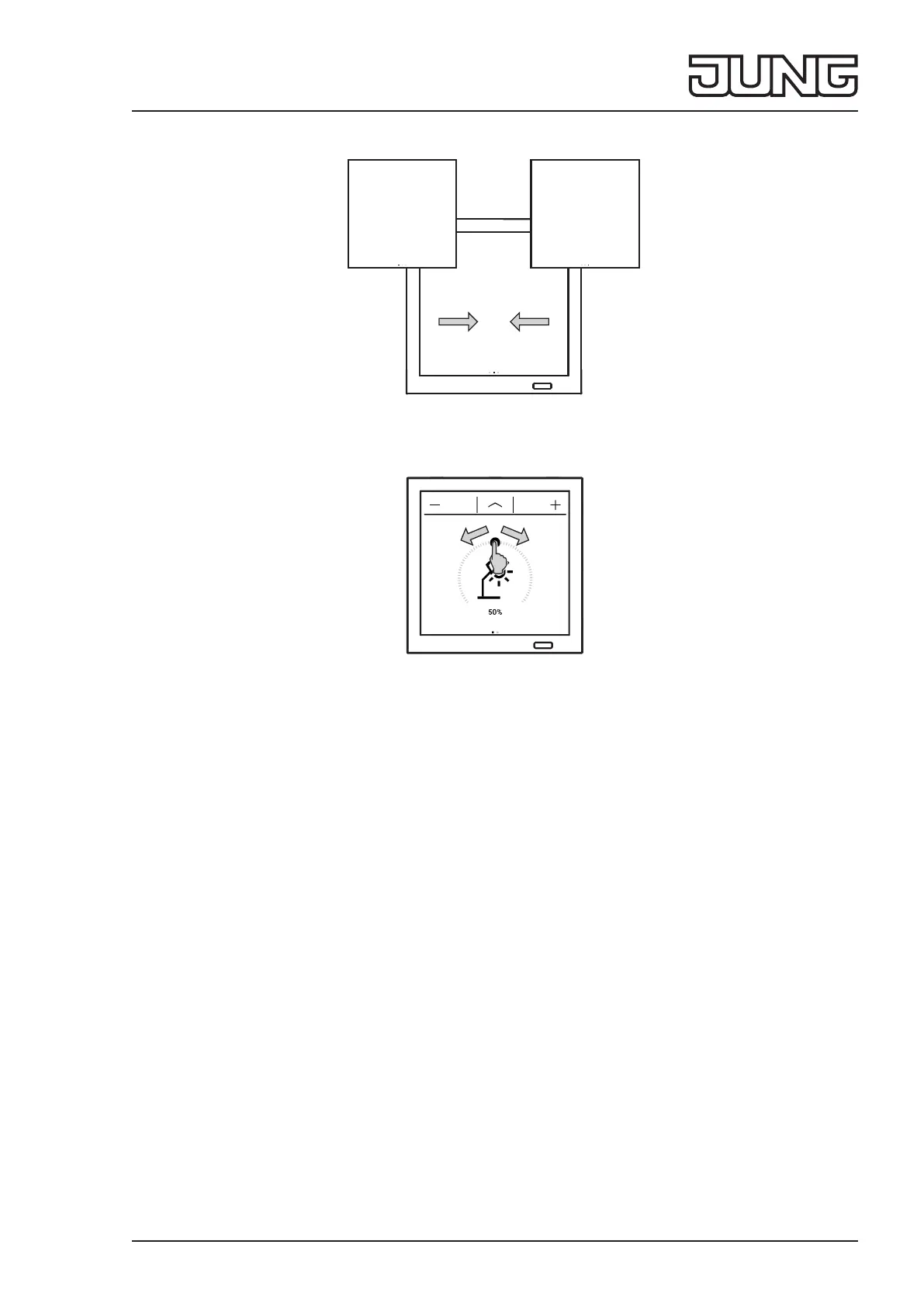

Fig. 10: Scrolling through pages
• Perform a swiping motion to the left or right. Alternatively, tap on the squares.
Adjusting functions
Fig. 11: Adjusting functions
The adjustment options for the functions depend on the function type.
Example:
Adjusting the brightness/dimming the light:
• Adjust the brightness using the slider or the plus/minus sign.
More information on how to operate the device can be found in the tutorials on our website.
8 Technical data
Screen diagonal 86 mm/3.4”
KNX
KNX Medium TP256
Security X mode
Commissioning mode S mode
Rated voltage DC 21 ... 32 V SELV
Current consumption KNX 60 mA
KNX connection connection terminal
Connection cable KNX EIB-Y (St)Y 2×2×0.8
Protection class III
Connecting external switching contacts
Number max. 20
Cable type J-Y(St)Y 2×2×0.8
Cable length max. 25 m
Ambient conditions
Ambient temperature –5 ... +45 °C
Storage/transport temperature –25 ... +70 °C
Relative humidity 30 % ... 70 %
9 Warranty
The warranty follows about the specialty store in between the legal framework as provided for by law.
