Attaching the trailer
CAUTION!
Trapping hazard
There is a trapping risk when you attach a trailer.
X
Follow the instructions of the coupling manufacturer if using special trailer
couplings.
X
Secure the trailer to prevent it from rolling away before coupling it.
X
Do not get caught between the truck and the tiller when coupling the trailer.
X
The tiller must be horizontal, tilted down by no more than 10° and never facing up.
Attaching the trailer
Requirements
– Truck and trailer are on a level surface.
– Trailer prevented from rolling away.
Procedure

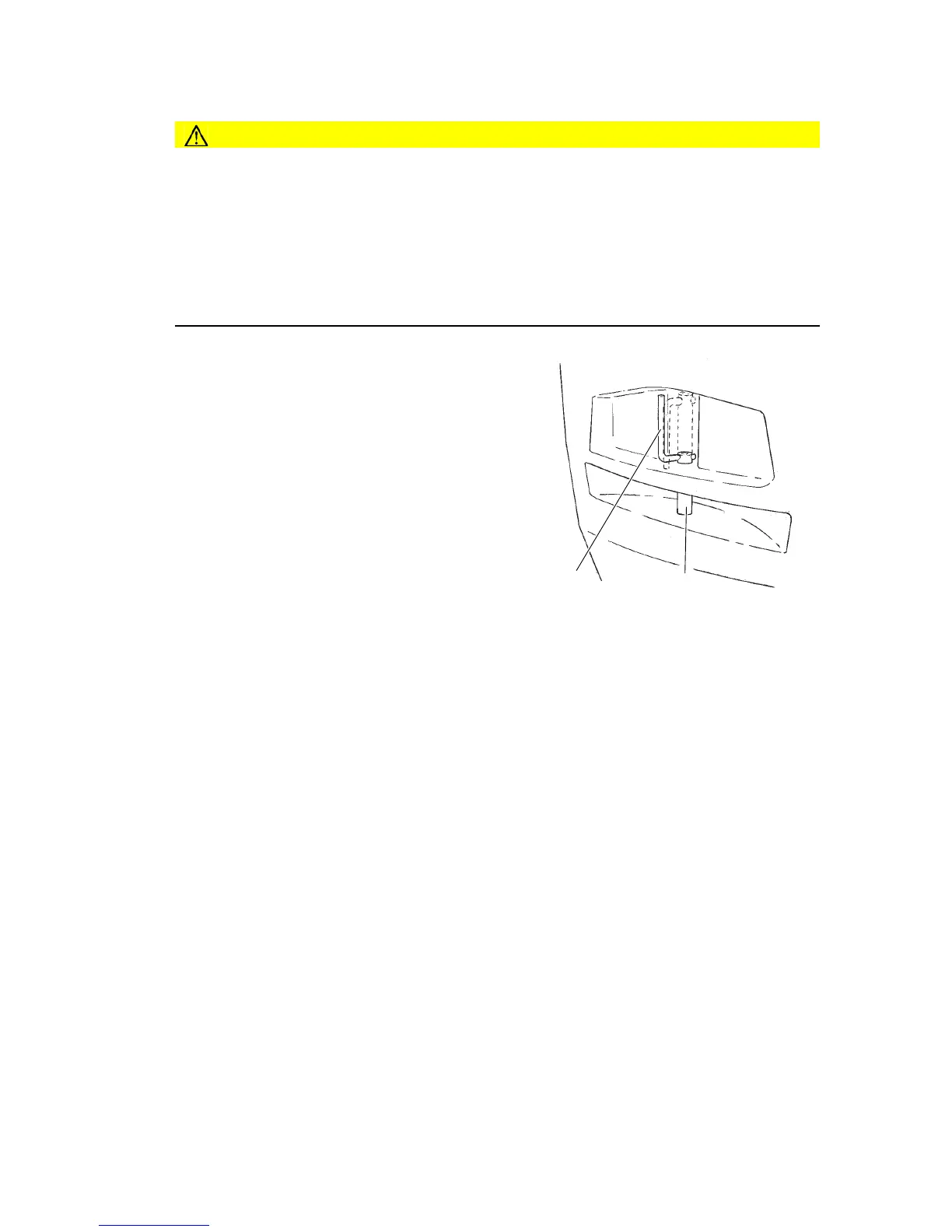

• The handle (189) is moved to a horizontal
position and the bolt (188) is raised so that
the coupling fork becomes free. Then
position the handle (189) vertically so that
the bolt (188) remains in place.
• Insert the trailer tiller into the opening.
• Move the handle (189) to a horizontal position let down the bolt (188), thereby
locking the handle (189) in a vertical position.
The trailer is now attached to the truck.
