Jungheinrich DFG 670 - Lubrication Schedule

11.14 EN
158

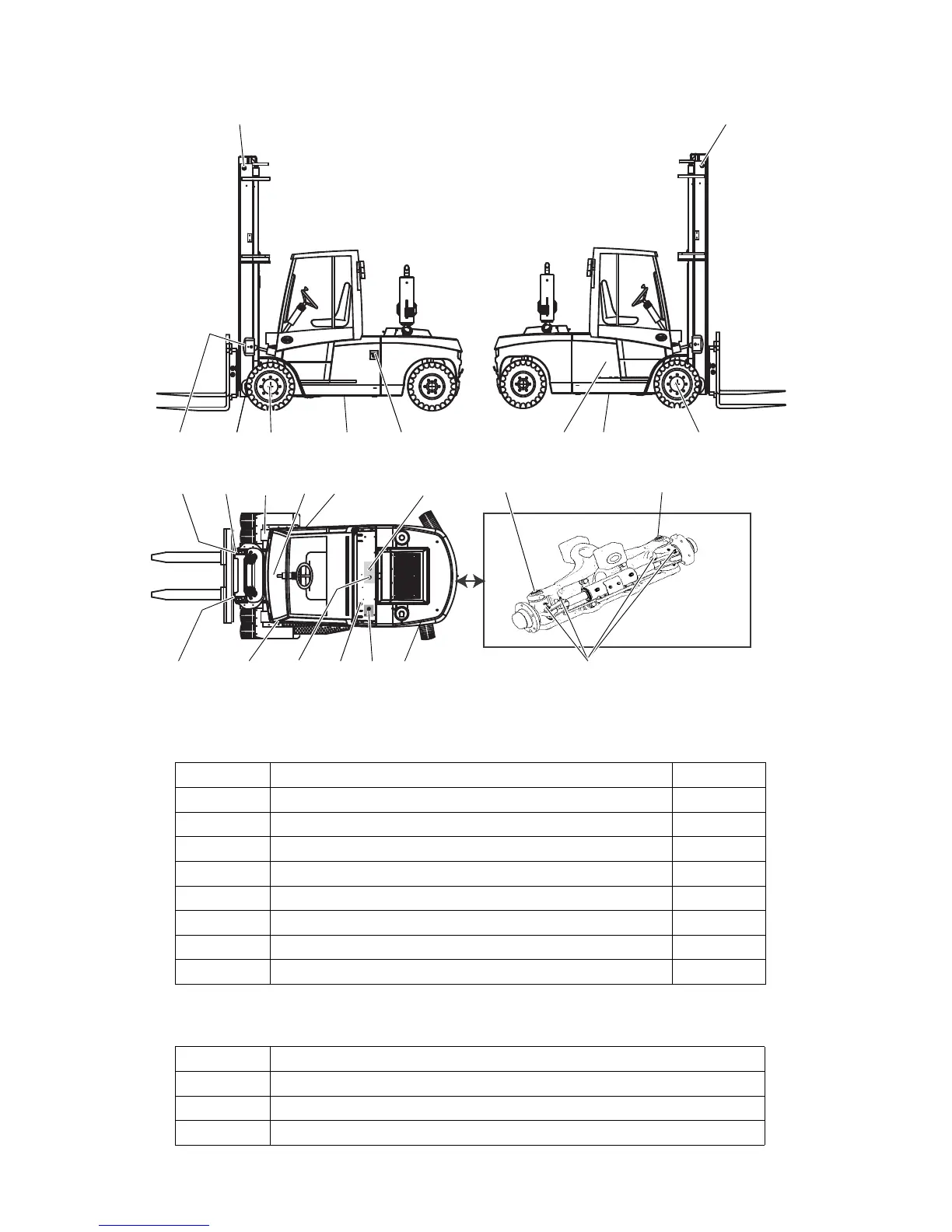

3.2 Lubrication Schedule
Grease nipple
Number
212 Chain sprocket 2/4
220 Mast, suspension 2
213 Tilt cylinder front bearing 2
221 Mast rollers 8/10/12
222 Tilt cylinder rear bearing 2
223 Cardan shaft 2
226 Stub axle pins 4
227 Track rod 4
Dipstick and filling points
215 Hydraulic oil filler plug (in the motor compartment)
217 Fuel filler neck
224 Battery (in the motor compartment)
225 Engine oil filler neck
