11.14 EN
112
6.10 Replacing the forks
WARNING!
Unsecured fork tines can cause injury
You can injure your legs when replacing the fork tines.
X
Never pull the fork tines towards your body.
X
Always push the fork tines away from your body.
X
Secure heavy fork tines with lifting slings and a crane before pushing them down
from the fork carriage.
WARNING!
Trapping hazard
There is a trapping hazard when you
perform this operation.
X
Wear work gloves and safety shoes.

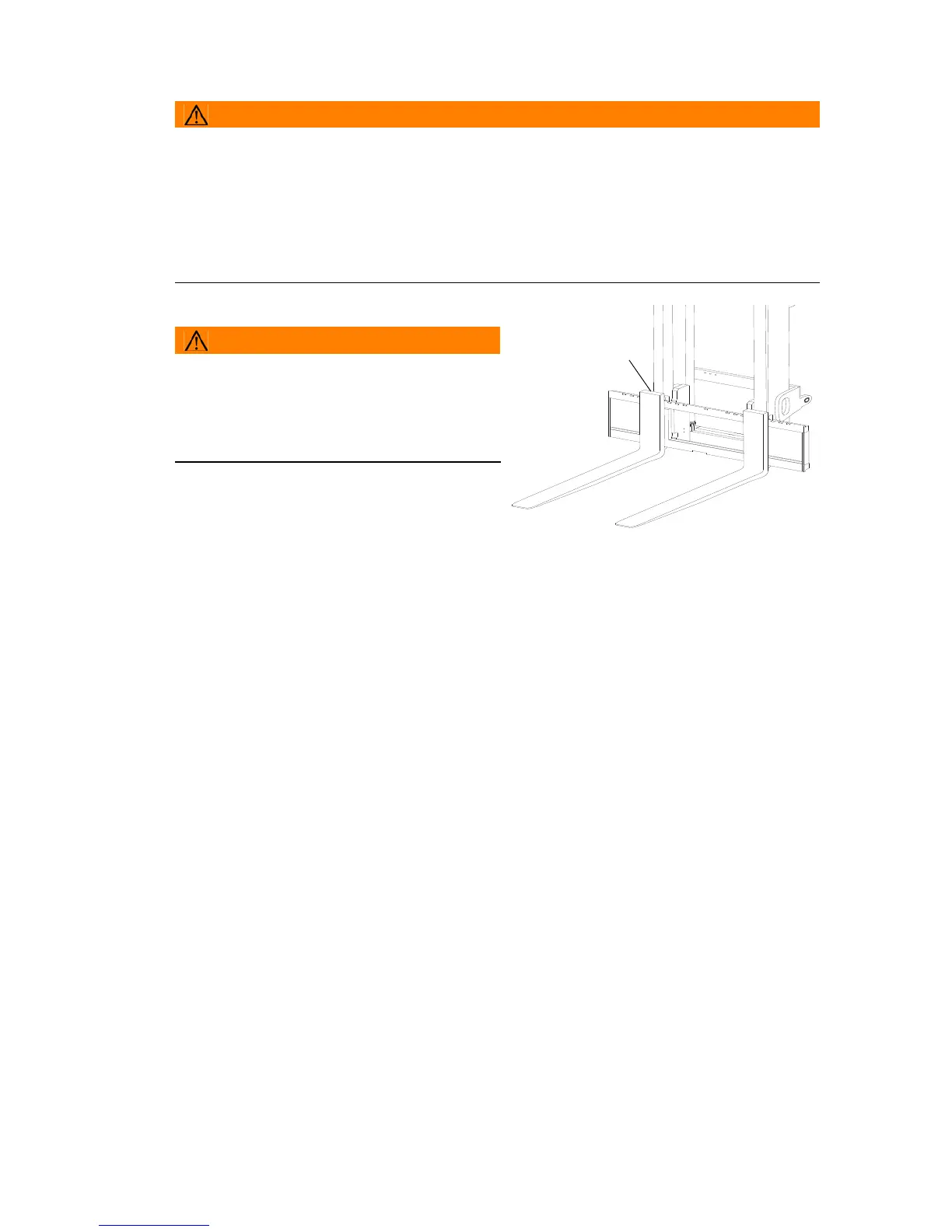

Replacing the fork tines
Requirements
– Load handler lowered and fork tines not
touching the ground.
Procedure
• Loosen the fork stop (167).
• Carefully push the fork tines to the centre of the fork carriage and remove them.
The fork tines are now dismantled from the fork carriage and can be replaced.
167
