Jungheinrich DFG 690 - 2 Assemblies and Functional Description

11.14 EN
16
2 Assemblies and Functional Description

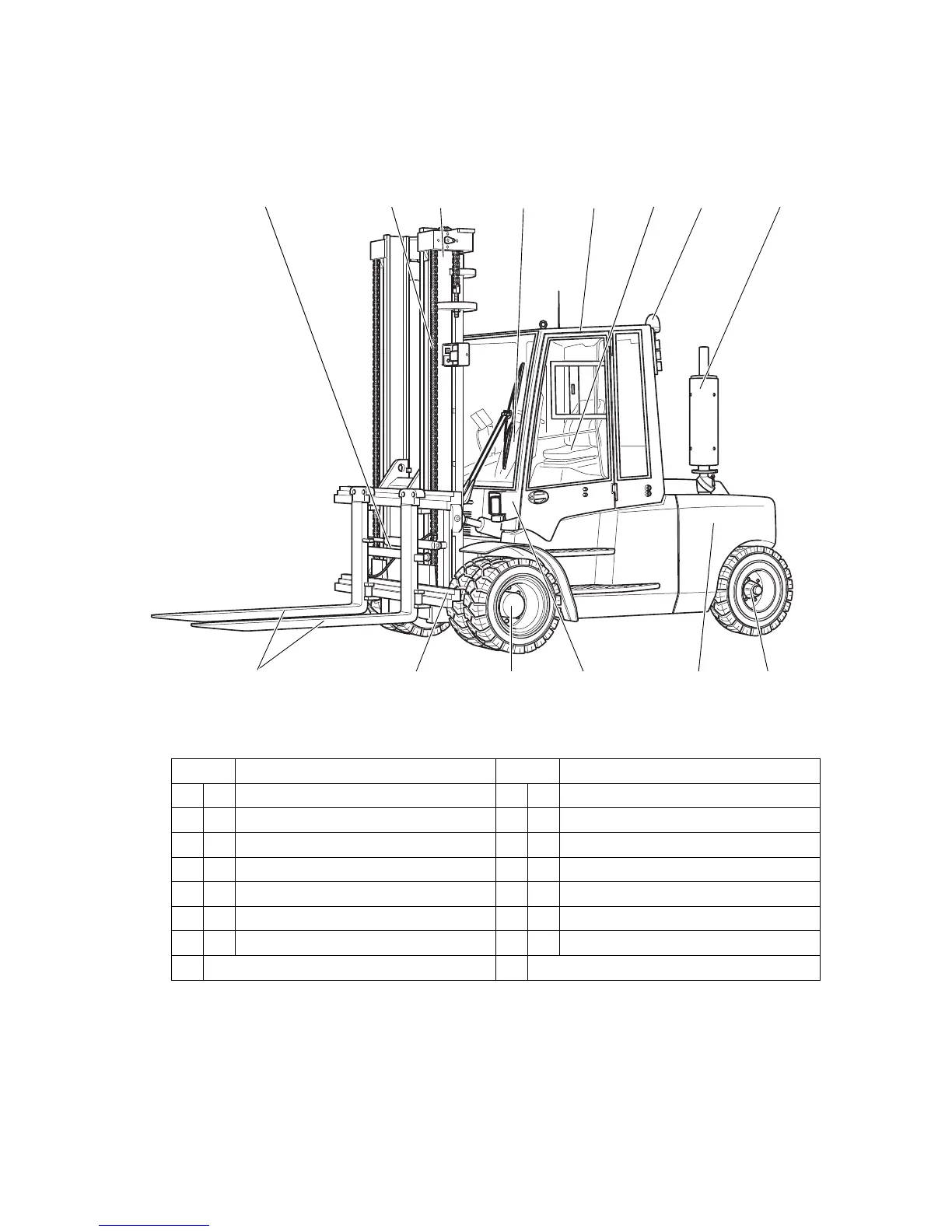

2.1 Assembly Overview
6
3
14 13 12 910
12
4
5
78
11
Item Description Item Description
1 o Fork adjustment 8 t Exhaust pipe
2 t Load chains 9 t Steer axle
3 t Mast 10 t Counterweight
4 t Steering column 11 t Illumination
5 t Cab 12 t Drive
6 t Driver's seat 13 t Fork carriage
7 o Beacon 14 t Fork tines
t = Standard equipment o = Optional equipment
